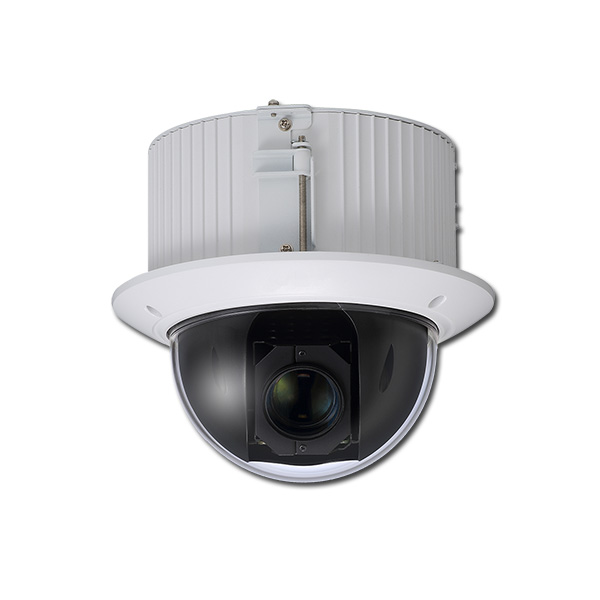

WEC-IPTZ19F - 2MP IP Camera, 20X Optical Zoom for In-Ceiling/Flush Mount


$564.00


Availability: Out of Stock
Ships Same Day
List Price: $999.99
SKU: WEC-IPTZ19F
Product #: 86384
Manufacturer:
Camera Resolution: 1080P

Remote Login Support:
Quantity

Product Features

  • Powerful 20x optical zoom
  • Support Triple-streams encoding
  • Max. 25/30fps @ 1080P(1920x1080) & 50/60fps @ 720P resolution
  • Defog, DWDR(WDR), Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(PSS) & iMaxCam
  • Max 500°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IK10



SPECIFICATIONS
Model WEC-IPTZ19F
Image Sensor 1/2.8” 2MP Progressive Scan Sony Exmor IMX322 CMOS Image Sensor
Digital Signal Processor Ambarella S2Lm
Effective Pixels 1920 (H) x 1080 (V)
Scanning System Progressive
Electronic Shutter Speed 1/3 - 1/30,000s
Minimum Illumination Color: 0.05Lux@F1.4; B&W: 0.005Lux@F1.4
S/N Ratio > 55dB
Day / Night
Auto (ICR) / Color / B&W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto / ATW / Indoor / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 2DNR + 3DNR
Privacy Masking Up to 24 areas
Lens 4.7mm - 94mm (20x Optical Zoom)&W
Field of View 54.1° (Wide) - 3.2° (Zoomed)
Pan/Tilt Range Pan: 0° - 360° Endless; Tilt: 0 - 90°; auto-flip 180°
Control Speed Manual: 1° - 350°/s pan; 1° - 250°/s tilt; Preset: 500°/s pan; 500°/s tilt
PTZ Mode 300 Presets, 5 Patterns 8 Tours, 5 Auto-Scans, Auto-Pan
Video
Compression H.264 / MJPEG
Image Resolution 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 480) / CIF (352 x 240)
Bit Rate 448Kbps - 8192Kbps
Audio
Compression G.711a / G.711Mu / PCM
Interface 1 / 1 Wire Connection Input / Output
Network
Network Interface RJ-45 (10/100m) Ethernet
Wi-Fi N/A
Protocol IPv4, IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS
ONVIF Compliance ONVIF Profile S
Maximum User Access 20 Users
Auxiliary
Local Storage MicroSD 128GB Maximum
RS-485 N/A
Alarm Input / Output 2 / 1 Input / Output
General
Power Requirement

AC24V/1.5A, PoE+ (802.3at)

Power Consumption 13W (Heater on)
Operating Environment -20°C - +60°C; Less than 90% Relative Humidity
Protection Rating N/A

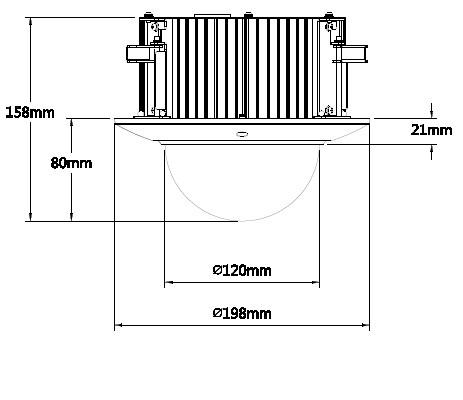

Dimensions Φ7.80" (198mm) x 6.97" (177mm)
Weight 6 lbs
Shipping Weight 10 lbs

There have been no reviews

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
