WEC-IPPTZ20x - 2 Megapixel High-Resolution PTZ IP Camera


$1,349.00


Availability: In Stock
Ships Same Day
List Price: $2,600.00
SKU: WEC-IPPTZ20x
Product #: 75082
Manufacturer:
UPC: 881314693672

Remote Login Support:
Quantity

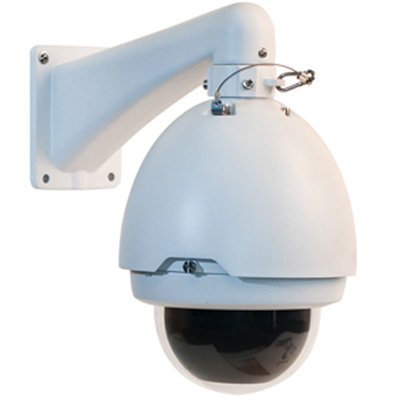

This high definition IP surveillance camera records 30 frames per second with a 1080p resolution. It has a powerful 20x optical zoom lens and auto focus. This is a pan/tilt/zoom security camera with a 360 degree continuous pan and no blind spot monitor. It meets IP66 standards and has a built-in temperature control device. Power supplied by 24V AC.



Product Features

  • Sony 2MP Exmor CMOS Sensor
  • 20x Optical Zoom
  • Web Interface
  • ONVIF
  • Ships standard with included wall mount.
  • Pole, Pendant, Ceiling, and Corner Mounts Available (Optional)
  • Power supply AC 24V/3A



SPECIFICATIONS

Model WEC-IPPTZ20x
Camera
Sensor Type 2MP Sony Exmor CMOS
Module Type 20X Optical Zoom Module
Effective Pixels 2 Megapixels
Digital Zoom 16x
Minimum Subject Distance 10mm-1000mm
Minimum Illumination Color: 0.05 Lux @ F1.6; B&W: 0.005 Lux @ F1.6
Electronic Shutter 1/1 - 1/30,000/s
Zoom 20x Optical, 16x Digital
White Balance Auto / Manual
Day/Night Auto (ICR), Color, B&W — 0.05 lux/Color, 0.005 lux/B&W
S/N Ratio >50dB
Privacy Masking On/Of
Analog Video Output BNC (1.0Vp-p/75Ω) NTSC
Video Compression H.264 / MJPEG4
Image Resolution 1080p (1920/1080) 720p ( 1280/720) D1 (704x480)
Encoding Speed Mainstream: NTSC 1080p/720p 1-30FPS
Bit Rate 32Kbps - 8Mbps
Audio Compression G.711a (32Kbps) / AMR (10.2Kbps)
Speed Dome
Presets 255
Auto Tour 8
Auto Pattern 5
Auto Scan 5
Pan Speed 0.1° - 300° / second
Pan Range 0° - 360° continuous
Tilt Speed 0° - 150° / second
Tilt Range -2° - 90° — Auto rotates to pan 180°
Alarm I/O 7/2
Preset Speed Horizontal 400° / second Vertical 300° / second
3D Positioning Yes
Idle Motion Activate preset/scan/tour/pattern
Electrical
Power Requirements AC 24V/3A
Power Consumption 12W
Environmental & Physical
Operating Temperature -40° F to 140° F
Operating Humidity 0-90% ( No condensation )
PTZ Weight 10lbs
Wall Mount Weight 3lbs
Shipping Weight 16lbs
Network
Ethernet RJ-45 (10/100Base-T)
Network Functions TCP/IP, HTTP, DDNS, DHCP, FTP , DNS, IP Filter, PPPoE, NTP, SMTP, Alarm Server
Max Remote Users 20 Simultaneous UsersProcessor
Processor TI DaVinci Series DSP
Operating System Imbedded LINUX
Resource Simultaneous remote monitoring, remote operation, and local recording
Remote Operation Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log Information, Maintenance and Upgrade
Local Recording SD/SDHC, Max 32GB
User Interface Web, CMS (PSS) G4SS, NVR

Average Customer Rating:


2 Most useful customer reviews
Fred
Apr 18, 2014
This customer purchased the item at our site.
I've owned this camera for 5 months now. Over the past 10 years I've owned more than a dozen network cameras. Today I have eight running at home and my parents place. I have had some bad cameras in the past and some great ones! So far this camera has worked extremely well.
Loading...Was the above review useful to you? Yes (1) / No (0)
Ishi david
Feb 12, 2015
This customer purchased the item at our site.
After I installed this camera and tested it out, it turned out better than my expectations. The quality was awesome and very clear because of course 1080p always looks like that! The zoom variations are also massive and I wonder at how a security camera so small can have an optical zoom of 20x? I was greatly impressed by this camera so I placed an order for 2 other ones as I have a big house and need full coverage of everything. I suggest everyone who is purchasing multiple cameras of this sort to upgrade your internet plan. I connected my 3 cameras to my IP and my plan of 50 GB/month was over in a few days. I upgraded to 150GB/month.

I am sure everyone who will buy this camera will find the pan/tilt/zoom feature extremely handy and awesome to toggle with and make sure you get to tape everything in your surroundings. I sure did! This camera is also best for everyone’s country’s temperatures.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
