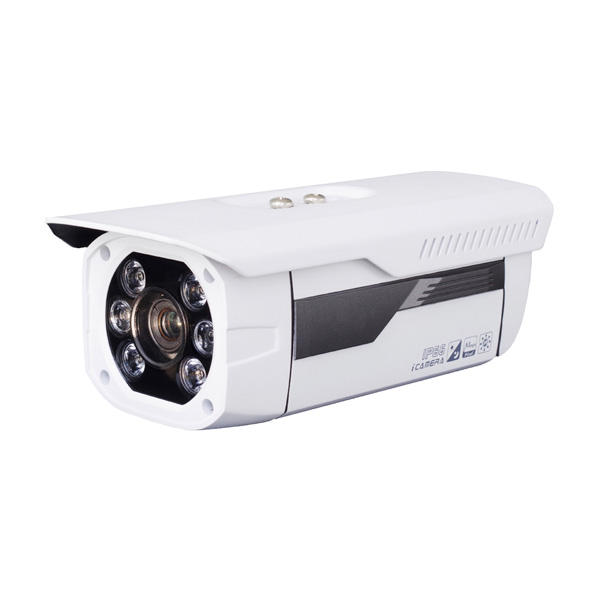

WEC-IPIND 2MP Industrial Weatherproof HD Network IP Camera


$498.00


Availability: In Stock
Ships Same Day
List Price: $1,350.00
SKU: WEC-IPIND
Product #: 64334
Manufacturer: iMaxCamPro
UPC: 881314694501

Lens:
Remote Login Support:
Quantity

This industrial weatherproof surveillance camera is ideal for outdoor use. It adheres to IP66 standards, which means it is dust tight and water-resistant. In addition to being able to withstand the elements, this security camera also records high quality video at 30 fps with a 1080p resolution. There are two varifocal lens options, either 7-22mm or 3.3-12mm. The infrared LED lights allow for viewing either at 160 (3.3-12mm) or 328 feet (7-22mm) in darkness. The surveillance camera has a SD card with 64GB of storage. Footage can be monitored remotely via web browser or smart phone with the iMaxCamPro mobile app.

Product Features

  • 2MP Industrial Weatherproof HD Network IP Camera
  • Progessive Scan Sony Exmor CMOS Image Sensor
  • High Performance Ambarella DSP
  • H.264 and MJPEG Dual Stream Encoding
  • 30FPS @ 1080P (1920x 1080)
  • 7-22mm or 3.3-12mm Varifocal lens options
  • Up to 330ft (100m) IR LED Range
  • DWDR, Day/Night(ICR), Auto iris, 3DNR,AWB,AGC,BLC
  • IP66 Ingress Protection, PoE
  • ONVIF Profile S

SPECIFICATIONS
Model WEC-IPIND
Image Sensor 1/2.8" 2 MP progressive scan Exmor CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10,000s
Min. Illumination Color: 0.01Lux/F1.4, 0 Lux/F1.4 (IR on)
S/N Ratio More than 50dB
Video Output 1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max IR LEDs Length 7mm~22mm lens: 100m (328 ft.)
3mm~12mm lens: 50m (164 ft.)
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 7mm~22mm lens
3mm~12mm lens
Max. Aperture F1.4
Focus Control Manual
Angle of View 7mm~22mm lens: (H) 41.1° ~ 14.1°
3mm~12mm lens: (H) 85° ~ 36°
Lens Type Manual/Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/ H.264H / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240)
Frame Rate Main Stream 1080P/720P (1 ~ 25/30fps)
Frame Rate Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 2/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3at)
Power Consumption Max 16W
Working Environment -22°F ~ +140°F (-30°C ~ +60°C), Less than 95%RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions 11.35"(288.3mm) x 4.66" (118.3mm) x 3.98" (101mm)
Weight 5.51 lbs
Shipping Weight 8.0 lbs

Average Customer Rating:


2 Most useful customer reviews
John
Apr 18, 2014
This customer purchased the item at our site.
I've had this camera for about a week now and I'm happy with it. I've been trying to capture some wild animals on my deck, but finally been successful. I've tried the Dlink 2332L and the HikVision 2CD2032 with no success to capture the animals. This IMaxCamPro has much better nightvision than the other cameras.
Loading...Was the above review useful to you? Yes (1) / No (0)
Shane Turner
Jun 9, 2015
This customer purchased the item at our site.
We recently moved to an area in my country where security is not the first thing on the minds of those who roam in it. Since we could not do a thing about moving elsewhere I started searching for security cameras to protect my family. This camera turned out to be the best one (referring to my budget) and because it is weather proof. It gets really dust windy and rainy in this area. I have had this camera for a while now and it has proved to be really loyal throughout the rain and pitch dark nights. I bought it with the 7-22 mm choice and it shoots the clearest footage at night. I currently have the iMaxCamPro app and am accessing my footage through that; still have not gotten the hang of remote smartphone viewing without the installation of any app.

I have fixed in my 32 GB micro SD card and I love all the more space. You all should make good use of this feature, not many security cameras have it.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
