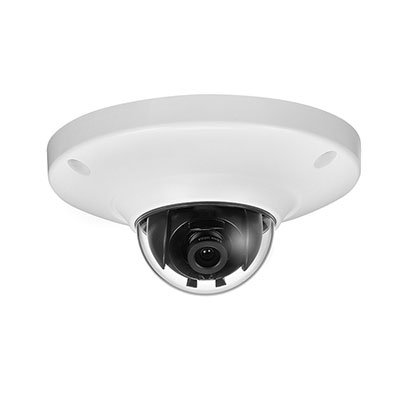

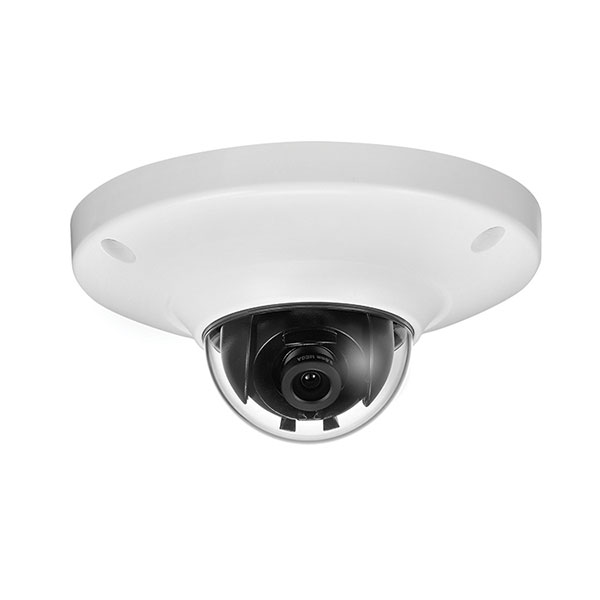

WEC-IP42-4MP 4MP Vandal-proof IP Fisheye Camera


Availability: In Stock
List Price: $549.99
Product #: 86585
Camera Resolution: 2592(H) x 1520(V)

Remote Login Support:

Product Features

  • 1/3” 4MP Progressive Scan OmniVision OV5689 CMOS Image Sensor
  • 1.18mm Fixed Fisheye Lens
  • Max 4MP@15fps, 3MP@20fps, 1080P/720P@30fps
  • H.264 & MJPEG Dual-Stream Encoding
  • Multiple Panoramic Display Modes Available using Web Service, Smartphone App, CMS (SmartPSS) software and Compatible NVR
  • MicroSD Memory Slot
  • 1 / 1 Audio Input / Output and Built-in Mic
  • 1 / 1 Alarm Input / Output
  • IK10 Vandal-proof Rating

Model WEC-IP42-4MP
Image Sensor 1/3" 4 Megapixel Progressive Scan Omnivision OV4689 CMOS Image Sensor
DSP Ambarella A5S
Effective Pixels 2592(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual; 1/3(4) - 1/100,000s
Min. Illumination 0.01 Lux/F2.0 (color); .001 Lux/F2.0 (B/W)
S/N Ratio >50dB
Video Output N/A
Camera Features
Max IR LED Distance N/A
Day/Night Auto(Electronic) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3DNR
Privacy Masking Up to 4 areas
Focal Length 1.18mm
Field of View Horizontal: 180°
Max. Aperture F2.0
Focus Control Manual
Lens Type Fixed Lens
Mount Type Board-in Type
Compression H.264 / MJPEG
Image Resolution 4M(2592×1520) / 3M(2048×1520) / UXGA(1600×1200) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288 / 352×240)
Frame Rate Main Stream 4M(1 ~ 15fps) / UXGA (1 ~ 25/30fps)
Extra Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 20Kbps ~ 8192Kbps
Compression G.711a/ G.711u/ PCM
Interface 1/1 channel In/Out(Built in Mic)
Network Interface RJ-45 (10/100M)
Wi-Fi N/A
Compatibility ONVIF Profile S, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Local Storage Micro SD Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
Power Supply DC12V, PoE (802.3af)
Power Consumption < 6W
Working Environment -22°F ~ +140°F (-30°C ~ +60°C), < 95%RH
Protection Rating N/A
Vandal Resistance IK10

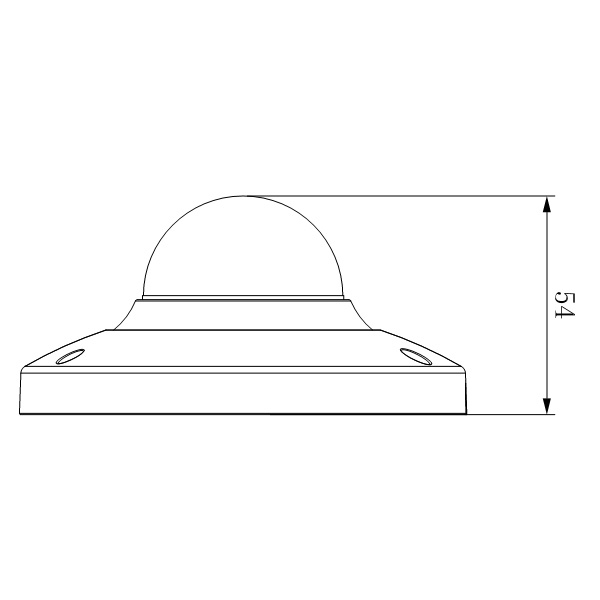

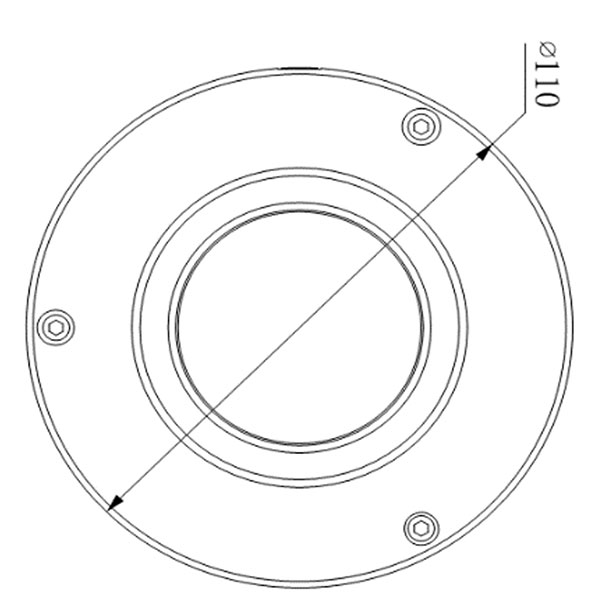

Dimensions Ø4.33" × 2.13" (Ø110 mm × 54mm)
Weight 0.55 lbs

Average Customer Rating:

1 Most useful customer reviews
Scott Lopez
Oct 6, 2016
This customer purchased the item at our site.
I have been searching for a fisheye security camera that has good quality footage since a while now but have not gotten anything. After my friend recommended this site to me I immediately got down to searching for fisheye security cams and this beauty caught my eye. I loved the fast shipping and I received the product within a day. The quality of the pictures is just perfect. I thought the night vision would be grainy and have lines all over the screen but it turned out quite the opposite. The quality is maintained even at night. The only thing that is different is the black and white filter.

I specifically love the built in mic as you do not see this feature in every other security camera. And it will come handy at some point. The micro SD slot makes me think this camera was MADE for me as I always love to use electronics with additional card slots to increase the functionality.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs

QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.

Easy remote Viewing
P2P/QR Code Easy Setup

To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.

You must check the box to enable P2P function and then click Apply to save at bottom of screen.


Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.


Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.



How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
