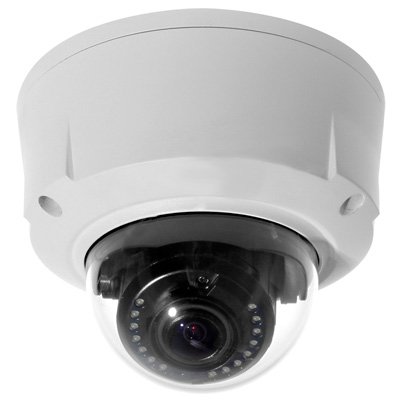

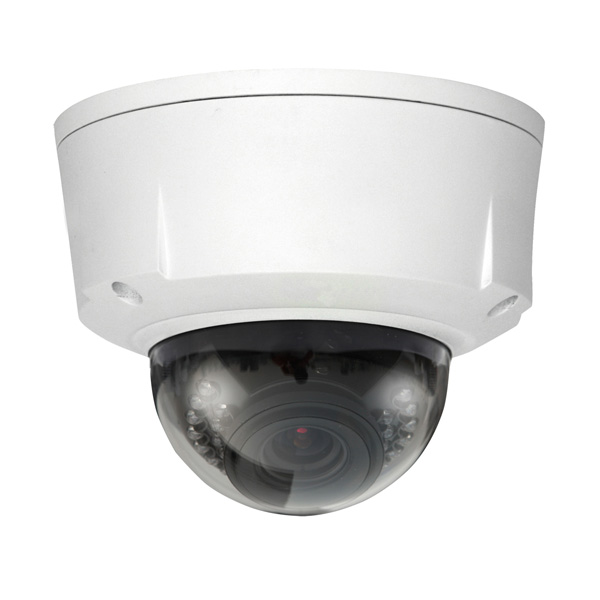

5 Megapixel Vandal Dome Camera, Triple Stream, Motorized 4-9mm Lens, IR Distance 20m, IP66, PoE


$554.00


Availability: In Stock
Ships Same Day
List Price: $775.60
SKU: WEC-IP23
Product #: 85786
Manufacturer:
Camera Type: Dome
Camera Resolution: 5 Megapixel
Camera Signal: IP
UPC: 683405210436
Shipping Lead Time: Ships Same Day
Lens Size: 4-9mm
Optical Zoom: Motorized Zoom

Remote Login Support:
Quantity

This dome surveillance camera can record 12 frames per second with a 5mp resolution. It has one of the highest resolutions on the market. The security camera has a 4-9mm varifocal lens with IR LEDs that allow it to record up to 65 feet away in total darkness. It also comes equipped with Wide Dynamic Range, digital noise reduction and a built-in alarm. It meets IP66 and IK10 standards and is approved for outdoor use.

Product Features

  • 1/2.5” 5Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 12fps @ 5M (2560×1920) & 25/30fps @ 1080P (1920×1080)
  • > DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & IMaxCam
  • 4~9mm varifocal motorized lens
  • Built-in 1/1 alarm in/out
  • Max. IR LEDs length 65 ft. / 20m
  • Micro SD memory, IP66, IK10, PoE

SPECIFICATIONS


Model WEC-IP23
Image Sensor 1/2.5” 5Megapixel CMOS
Effective Pixels 2560(H)x1920(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000
Min. Illumination Color: 0. 01Lux/F1.6
S/N Ratio More than 50dB
Video Output 1 channel, BNC(1.0Vp-p/75Ω)
Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Digital Zoom N/A
Lens
Focal Length 4~9mm motorized
Max Aperture F1.6
Focus Control Auto
Angle of View H: 86.5°(Wide)~28.6°(Tele)
Lens Type Motorized /Auto Iris(DC)
Mount Type Board-in Type
PT
Pan/ Tilt Range N/A
Preset Speed N/A
Preset N/A
Video
Compression H.264H/H.264B/H.264/MJPEG
Resolution 5M ( 2536×1920 )/ 3M ( 2048×1536 )/ 1080P ( 1920×1080 ) / 720P ( 1280×720 ) /
D1 ( 704×576 ) /  CIF ( 352×288)
Frame Rate Main Stream 5M ( 1~12fps) / 1080P/720P ( 1~25/30fps )
Frame Rate Sub Stream D1 / CIF(1 ~ 25/30fps)
Bit Rate H.264H: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u/ PCM
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V / AC24V, PoE( 802.3af )
Power Consumption 8.5W(AC24V: +2W)
Working Environment -30°C~+60°C, Less than 90%RH
Ingress Protection IP66
Vandal Resistance IK10

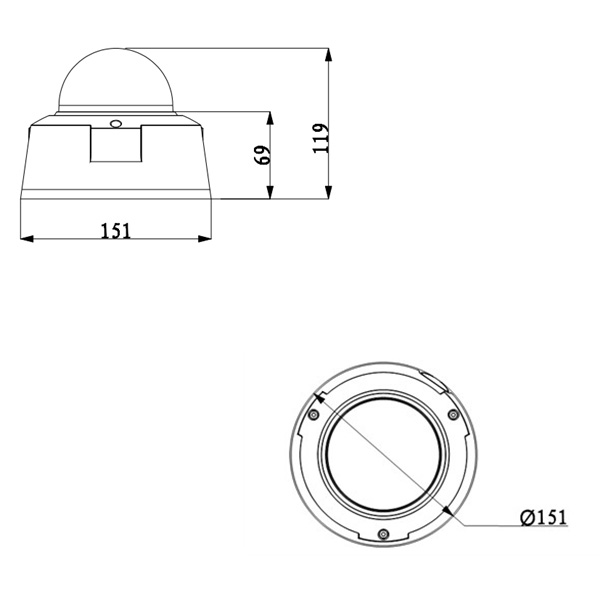

Dimensions Φ151mm x 119mm
Weight 1.25Kg

Average Customer Rating:


1 Most useful customer reviews
Hernandez
May 24, 2016
This customer purchased the item at our site.
The clarity of this product is everything! I love the image and video quality as they both are really high at 2560 x1920. Although I can take my pick from many image resolution modes. I bought this camera last week and loved the remote smartphone viewing. In fact I went as far as connecting my smartphone to my huge TV and showing my family members the quality of this camera. Although it is quite a heavy camera it deserves it for you cannot buy a lightweight camera and want it to have all these features. Besides this one is very durable and works perfectly for outdoor installation.

The angle of view is definitely my favorite thing about it as it comes in handy and covers a way bigger amount of space warning you before anything sudden happens. I also greatly love the night vision range of 65 ft. The quality of the video is pretty clear although we always leave our porch light on.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
