WEC-IP-PT8800 - 2 Megapixel High-Resolution 20X PTZ IP Camera


Availability: In Stock
Ships Same Day
List Price: $2,710.00
Product #: 86049
Camera Type: PTZ
Camera Resolution: 1080p
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 20X

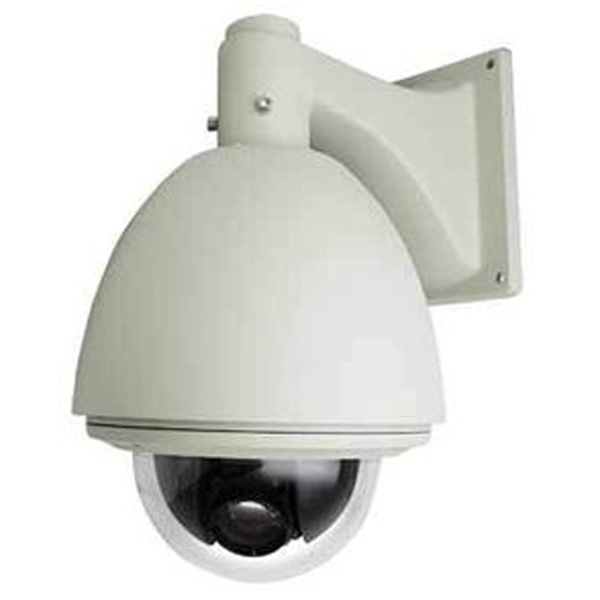

This high definition IP surveillance camera records 30 frames per second with a 1080p resolution. It has a powerful 20x optical zoom lens and auto focus. This is a pan/tilt/zoom security camera with a 360 degree continuous pan and no blind spot monitor. It meets IP66 standards and has a built-in temperature control device.

Product Features

  • 1/3" Progressive scan CMOS, 20 X optical zoom ; HD network video output
  • 1920x1080 @ 25fps (pal) / 30fps (NTSC)
  • SD card local storage, network remote storage
  • Support frame selection zoom in function
  • Provide standard SDK, easy to integrate with other digital system
  • CVBS video output : 1CH HD-SDI, 1 CH CVBS
  • IP66 weather proff ; 4KV lightning Protection ; Surge Protection
  • Power transformer Included



Model WEC-IP-PT8800
Image Sensor 1/3" Progessive CMOS
Image pixels 1920 X 1080
Horizontal resolution 1000 TVL
Min. illumination 0.5 Lux (Day) 0.1 Lux (Night) 0.05 Lux (DSS ON)
WB & S/N Ratio Auto/ Manual/ Timing ; Auto / Manual
Lens 20X Zoom, f=4.7 - 94mm, f1.6 - f3.5
Pan range 360 endless rotation
Pan Speed Preset Speed: 400/s; Manual Control Speed 0.5~120 /s
Tilt Range 0~90 (auto rotation)
Tilt Speed Preset Speed: 400/s; Manual Control Speed 0.5~90 /s
PTZ Control Support
Preset & Time Task Preset: 255, Time Task :8
Patrol , Trace & Scan Patrol: 8, Trace:4, Scan: 2
Home position display & flip Support position display ; Auto Flip
Alarm input / Output 4CH / 1CH (NC/NO)
Alarm linkage Support
Power Consumption 9W (max 24W, Heater on)
Power Supply AC24V/ DC12V
Work environment Temp: -20C ~ 60C : Humidity: less than 95%
Protection Level & Weight IP66 ; 5KG
Frame Rate 1~30FPS (25FPS)
Storage SD card local Storage, network remote storage
Smart Alarm Motion , Sensor
Resolution 1920 X 1080 , 1280 X 720 , 640 X 480 , 320 X 240 , 160 X 120
Multi-stream Support
Network interface 10Base-T / 100Base-TX, RJ45
Audio Mic input x 1 , output x 1
Analog Output CVBS
