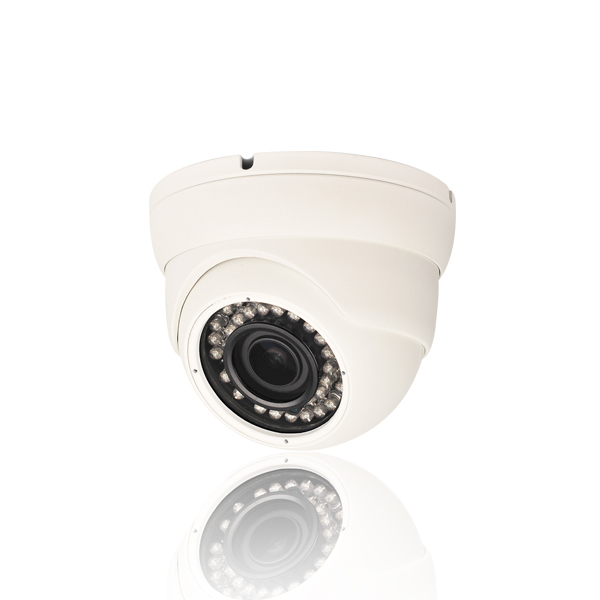

WEC-CN5E1F 1080p Eyeball EX-SDI Camera with 3.6mm Fixed lens & IR


$95.00


Availability: In Stock
List Price: $119.00
SKU: WEC-CN5E1F
Product #: 87073
Manufacturer:
Camera Resolution: 1080p
Camera Signal: HD-TVI
Lens Size: 3.6mm
Optical Zoom: Motorized Zoom

Quantity

Features

  • 1/3” 2.1 Mega CMOS Sensor.
  • EX-SDI(HD-SDI), HD-TVI - 1080P, 720P.
  • Max.500m distance with EX-SDI signal over Coax.
  • Motorized Focus 4Times, more convenient in adjusting focal length by OSD button.
  • Ture Day / Night Mechanical IR Filter.
  • Support True WDR, greatly improve image effect in backlight environment.
  • Supporting SMART IR function, efficiently prevent exposure issues.



Image Sensor 1/3” 2.1 Mega CMOS Sensor
Signal System PAL / NTSC ( switchable via OSD )
Total Pixels 1984 (H) x 1225 (V) Approx 2.43MP
Effective Pixels 1984 (H) x 1105 (V) Approx 2.19MP
Min. Illumination 0.01Lux@F1.2(AGC OFF), 0Lux with IR ON
Electric Shutter PAL : 1/50 ~1/100,000s / NTSC : 1/60 ~1/100,000s
Lens 3MP 3.6mm Lens
Day/ Night Conversion Type HD ICR
Horizontal Resolutions 1100TVL
Synchronization Inner-Sync
Frame Rate 1080P@25/30fbs, 720P@25/30/50/60fbs
SDI Signal Output 1 x BNC for EX-SDI
CVBS Signal Output 1 x BNC for CVBS 1.0Vpp 75ohmI
True WDR ≥ 150dB
S/N Rate ≥62bB
Camera ID OFF / ON ( 0~9 / A-Z options, position selectable )
3D DNR OFF / 2X ~32X
Sens-up 1.0X ~ 16.0
D-Zoom 0 ~ 20
AGC AUTO / Color / B&W / Extern
Day & Night AUTO / AUTOext / Preset / Manual
White Balance 24 Zones
Privacy Mask OFF /ON
Language CHN / CHN(s) / ENG / KOR / JPN / ITA
Function BRIGHTNESS, HLC, SHARPNESS, GAMMA, COLOR GAIN, MIRROR, FLIP, ACE, DEFOG, SHARDING, IMAGE RANGE, MONITOR
Operation Temperature -10~+50℃
Operation Humidity Within 90%RH
Power Supply DC 12V±15%
Consumption Max. 3W
IR Rating IP 66
IR View Distance 20~25m (65~80ft)
Dimension Ø 93 X 68 mm
Weight 480g

* Design and specifications are subject to change without notice.
