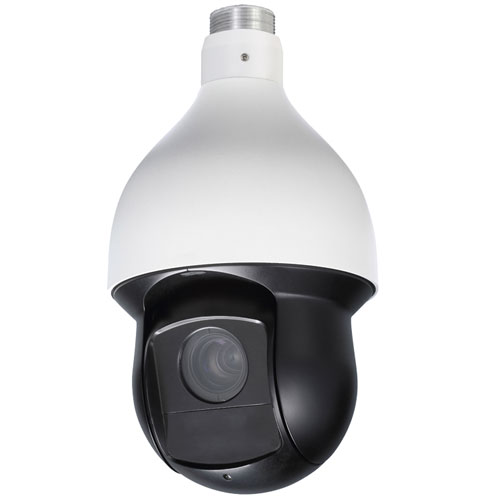

WEC-C2530XPTZ 2MP 30x Optical Zoom 16x Digital Zoom IP PTZ Camera


$958.00


Availability: In Stock
Ships Same Day
List Price: $1,249.00
SKU: WEC-C2530XPTZ
Product #: 85380
Manufacturer: iMaxCamPro

Camera Mount:
Remote Login Support:
Quantity

Product Features

  • Powerful 30x optical zoom
  • H.264 & MJPEG dual-stream encoding
  • Max 30fps@1080P & 60fps@720P
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(PSS) & iMaxCam
  • Max 400°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66, PoE+ (802.3at)
  • IR Distance up to 328ft(AC24V) / 263 ft(DC12V)

SPECIFICATIONS
Model WEC-IPPTZ4
Image Sensor 1/2.8"CMOS
Effective Pixels 1920(H) x 1080(V) (2 Megapixels)
Scanning System Progressive
Electronic Shutter Speed 1/1~1/30,000s
Min. Illumination Color: 0.05Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio More than 55dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.3mm~129mm(30x Optical zoom)
Max. Aperture F1.6 ~ F5.0
Focus Control Auto/Manual
Angle of View Horizontal: 65.1° ~ 2.34°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
IR Distance 263 ft.(DC12V)
328 ft.(AC24V)
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240)
Frame Rate Main Stream 1080P (1 ~ 25/30fps) / 720P(1 ~ 50/60fps)
Frame Rate Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 2/1 channel In/Out
General
Power Supply AC24V/DC12V, PoE+(802.3at)
Power Consumption DC12V: 13W, 20W (w/ IR on)
AC24V: 13W, 23W (w/ IR on)
Working Environment DC12V: -22°F ~ +140°F (-30°C ~ +60°C), Less than 90%RH
AC24V: -40°F ~ +158°F (-40°C ~ +70°C), Less than 90%RH
Ingress Protection IP66

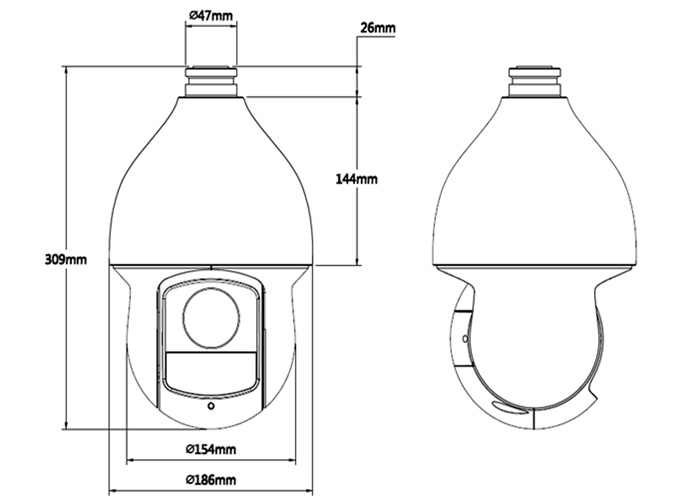

Dimensions Φ7.32"(186mm) x 12.17" (309mm)
Weight 7.72 lbs

Average Customer Rating:


1 Most useful customer reviews
Shane warne
Mar 8, 2015
This customer purchased the item at our site.
It took me some time deciding whether it was a good idea to purchase this camera or not. The price was a big factor to why I was doubtful about whether to purchase it or not. One day as I was showing it to a friend I realized that it was on discount. Even though it was a small discount offer, it made a huge difference for me. I would just like to say that this product is perfect for many people as you can choose whether to install it like this or purchase a pole mount with it.

My experience with this security camera was awesome for everything was exactly how I expected it to turn out. For instance the 30x optical zoom turned out to be pure perfection as well as the quality of the footage that I can remotely view from my android phone. I personally found the endless pan rotation to be the best thing about this camera and I'm sure other individuals will too as it is a very handy feature. The alarm system is also another thing that I am totally in love with. Took me some time to set it up but it was all the worth it.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
