UNV Uniview 8 Ch NVR & (8) 4 Megapixel IR Motorized Turret Dome Kit Professional Grade

Uniview
SKU: UNV-8CH-NVR-IPC3634-Kit


Uniview: The Rising Star of the CCTV World














How to Program Your Uniview EZView App on Your Mobile Device












These are 4MP Network IR Fixed Dome Cameras. They have a motorized varifocal lens size from 2.7mm~12mm. This lens size will vary your Angle of View from 91°~27°. Infrared night vision allows the security camera to see up to 98 feet in total darkness. These surveillance cameras are ONVIF compliant. They come with a built in audio microphone to allow both audio and video surveillance.

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • IR anti-reflection window to increase the infrared transmittance
  • 3D Noise Reduction











The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder



The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder brings to you many features like remote monitoring where you can easily hook up various security cameras to your IP address. Other features include numerous multiple recording and playback options. With these options you can schedule recordings on a given time or all around the clock.

The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the controls on this NVR.



The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!

The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the controls on this NVR.

Product Features



  • 16 IP Channel Inputs
  • 16 Independent 100M PoE+ Ports
  • 1 HDMI and 1 VGA Video Outputs
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • 1 RJ-45 10/100/1000M Ethernet Interface
  • 2 SATA Interfaces for Internal Storage
  • ONVIF Compliant
    • 31% less
    Market price:$3499.00 save $1089.00
  • $2410.00
Qty:
Free shipping
OR



The UNV Uniview 8 Ch NVR & (8) 4 Megapixel IR Motorized Turret Dome Kit is a comprehensive and reliable surveillance system that provides businesses and other organizations with top-notch security. The kit includes an 8-channel Network Video Recorder (NVR) and eight motorized turret dome cameras, each with a 4-megapixel resolution and infrared night vision capabilities.

The 4-megapixel resolution of the cameras ensures that the footage captured is of high quality and provides a high level of detail, making it easier to identify objects and people. The motorized turret dome cameras provide flexibility in terms of adjusting the viewing angle remotely, which is especially useful in situations where you need to zoom in or out for a closer look.

The infrared night vision capabilities of the cameras also ensure that they can capture footage even in complete darkness, providing 24/7 surveillance and security.

The cameras are designed to be durable and weather resistant, making them suitable for outdoor use. Their robust construction ensures they can withstand tampering or damage.

The included 8-channel NVR provides a reliable platform for managing and viewing the recorded footage. The NVR can support up to eight cameras, making it ideal for small to medium-sized businesses or organizations.

Overall, the UNV Uniview 8 Ch NVR & (8) 4 Megapixel IR Motorized Turret Dome Kit is a comprehensive and reliable security solution that can help businesses and other organizations protect their assets and maintain a secure environment.








How to Program Your Uniview EZView App on Your Mobile Device












The most cost effective professional grade solutions from Uniview. The 8ch NVR and 4MP motorized turret dome camera kit can support high resolution live view and playback up to 4K(4000x3000). This NVR supports 1-8TB surveillance hard drives for increased storage and efficiency. All cameras are equipped with the latest Ultra 265 Video codec for reduced storage needs without losing any video quality. The NVR is integrated with a 4 port PoE switch to provide the connected cameras both power and data up to 928ft. (with extended transmission enabled)

This kit includes eight 4MP motorized turret dome security cameras with 98ft of SmartIR night vision. It records high definition footage in 4MP (2K) resolution and is outdoor rated.  All footage is recorded onto the included NVR and can be monitored remotely via mobile device or computer.

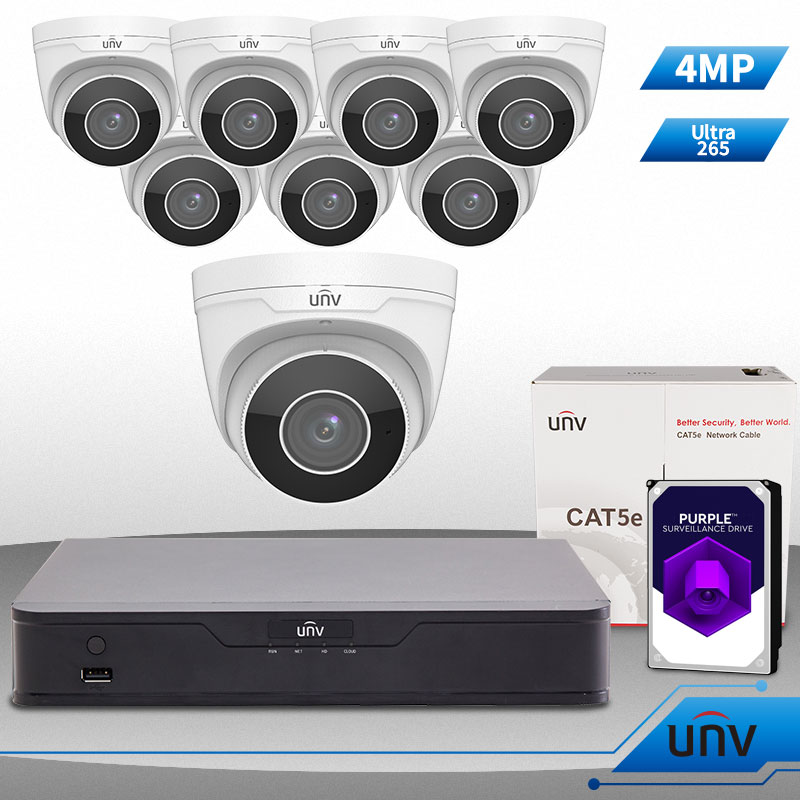

What’s Included:

· (1) 8 Ch, 8 Poe, 4K NVR
· (8) Uniview 4 Megapixel Motorized Turret Dome IP Camera
· 1TB Surveillance Hard Drive

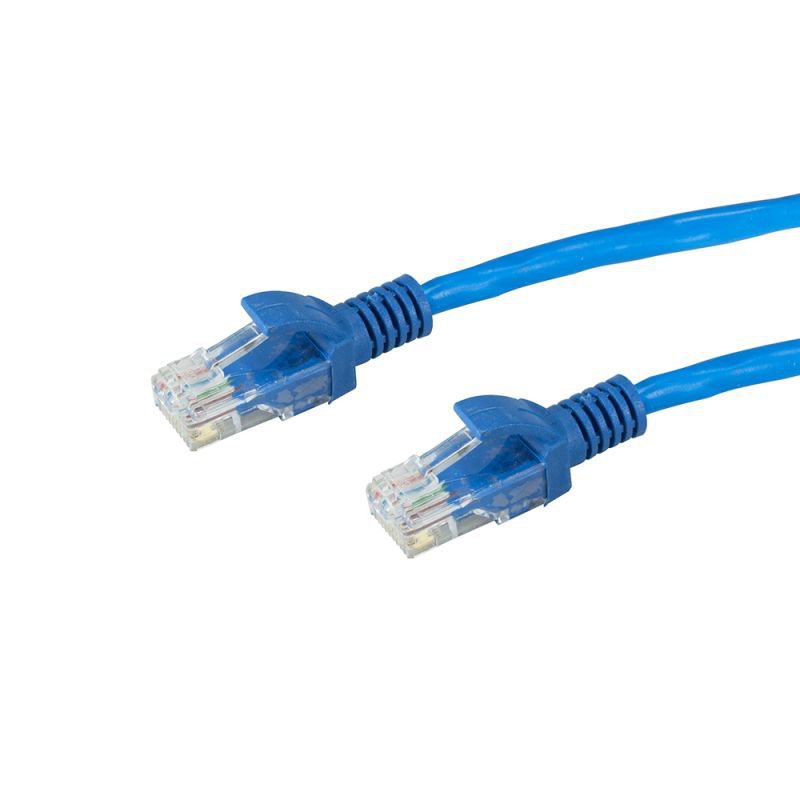

· 8x 100ft Cat5e Cables
· Free mobile apps and monitoring software
· Free lifetime technical support
· Free 3 Year Warranty

·HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables.

·Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smartphone or tablet.

·PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC.

·Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to external SATA drives or FTP servers on your network, in the case that your main HDD should fail.



Highlighted Features












U.265 Compression



By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.













Cloud Upgrade



If your NVR is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the NVR and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the NVR will automatically reboot.












Smart Playback

In normal search, you had to take hours to search the whole playback bar to find the desired video clip.
In smart search, specify an interesting area and do smart search, it only takes seconds to find the desired video clip

















Mobile App Push Notifications


Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered or alarm event. This enables you to quickly take action when an incident has occurred








E-Map Function


The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.






**There are NO contracts or monthly fees with any WorldEyeCam purchase**

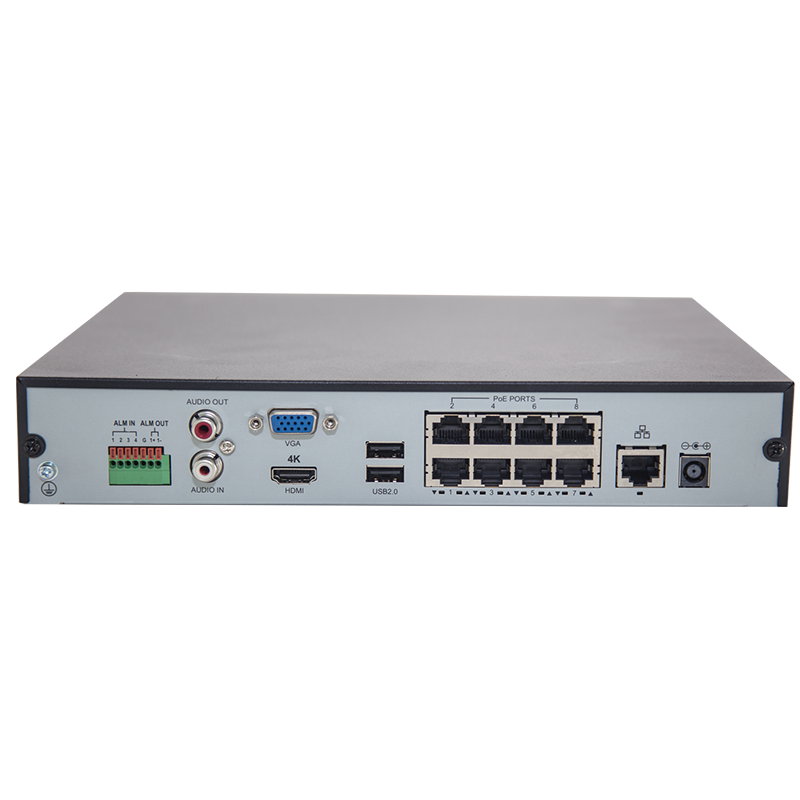

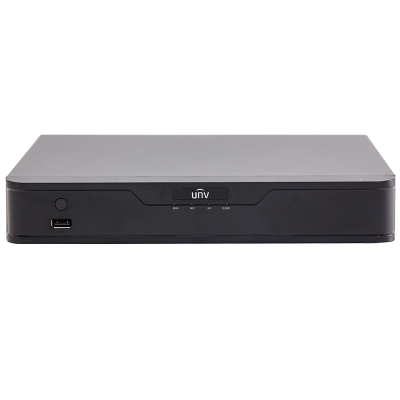

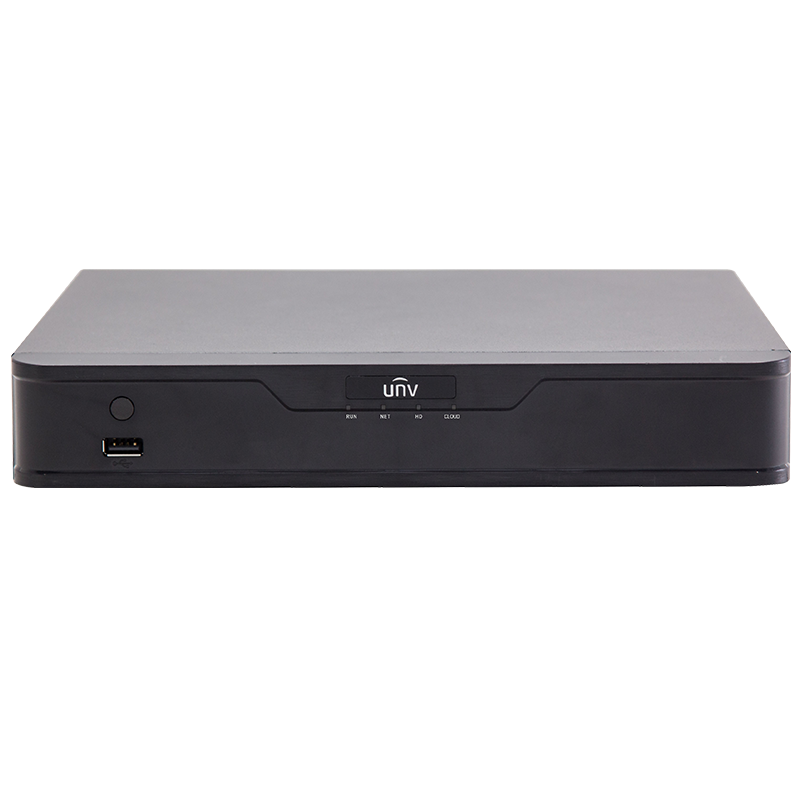

ModelNVR301-08-P8
Video/Audio Input
IP Video Input8-ch
Network
Incoming Bandwidth60Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:

3840x2160p /30hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback8-ch
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/ Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30fps, 2x 4MP@30FPS, 4 x 1080P@30, 4 x 720P@30
Hard Disk
SATA1 SATA interface
CapacityUp to 8TB for each HDD
External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0
PoE
Network Interfaces8 independent 100 Mbps PoE
Max PowerMax 30W for single port. Max 108W in total ( 13.5W for each )
Supported StandardsIEEE 802.3at, IEEE 802.3af
General
Power Supply52V DC

Power Consumption: ≤ 5 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)260mm ×240mm × 44mm (10.2" × 9.4"× 1.7")
Weight ( without HDD )≤ 1.12Kg(2.47lb)

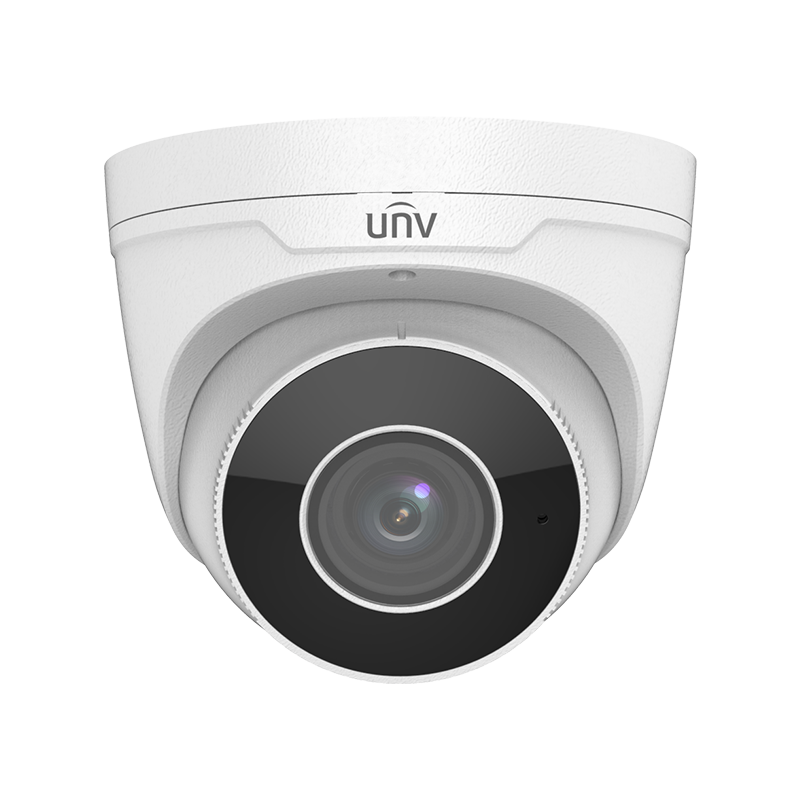

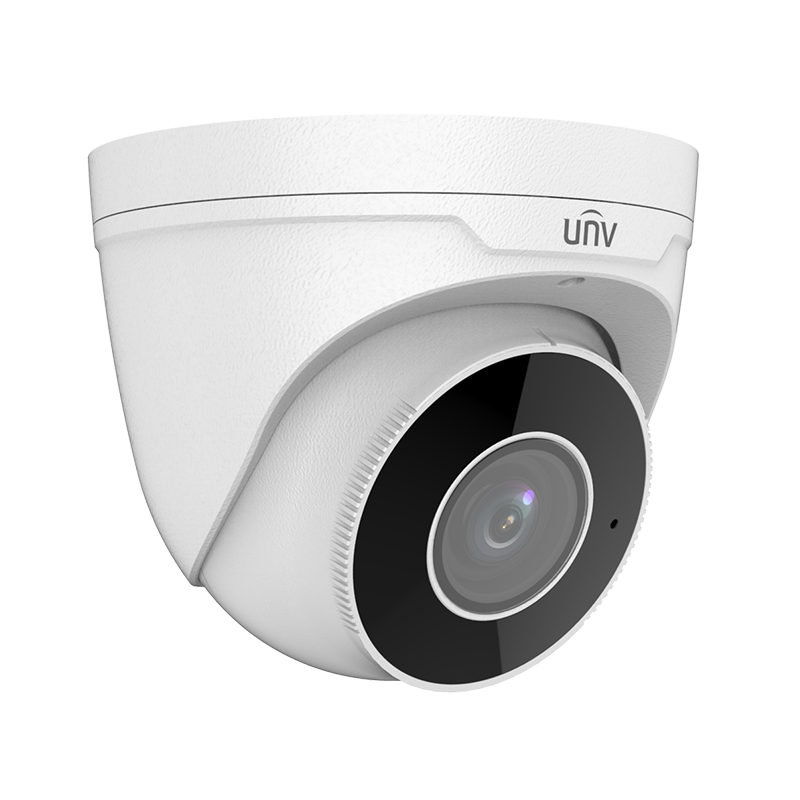

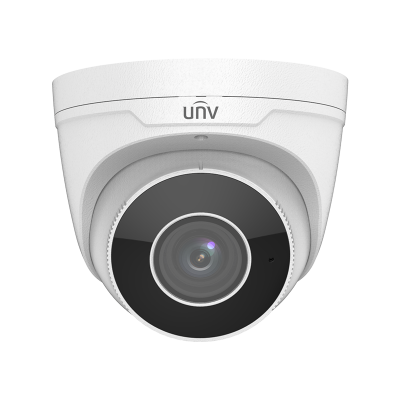

ModelIPC3634ER3-DPZ28
Camera
Sensor1/3", progressive scan , 4.0 megapixel, CMOS
Lens2.8~12 mm,AF automatic focusing and motorized zoom lens
DORI DistanceLens:
2.8mm: Detect (63m), Observe (25.2m), Recognize (12.6m), Identify (6.3m)
12mm: Detect (270m), Observe (108m), Recognize (54m), Identify (27m)
Angle of View (H)91.0°~27°
Angle of View (V)54.4°~13.7°
Angle of View (O)118.3°~33.2°
Adjustment anglePan: 0°~360°; Tilt: 0°~90°; Rotate: 0°~360°
ShutterAuto/Manual, 1/1~1/100000 s
Min. IlluminationColour: 0.005 Lux (F1.4, AGC ON)

0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
AWB (Auto White Balance)Auto/Manual
Gain ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps; 3MP (2048×1520): Max. 30 fps

Sub Stream: 2MP (1920×1080): Max. 30 fps;

Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication,
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
AudioBuilt-in Mic
Audio CompressionG.711
General
Power12 V DC(+/-25%); PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (Ø x H)Φ129 x 110 mm (Ø5.08” x 4.3”)
Weight0.82 kg (1.8 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
    • SKU
      UNV-8CH-NVR-IPC3634-Kit
    • Weight
      20 lbs
  • Manufacturer
    Uniview
  • Hard Drive # 1
    FREE 1TB HDD, 2TB HDD, 4TB HDD, 6TB HDD, 8TB HDD
  • Upgrade NVR
    None, 16ch NVR Upgrade
  • CAT5 CABLE
    Free 8 X 100 Ft RJ45, 1000 FT Cat5e
  • Monitor
    I will use my own monitor, 22 inch LCD Flat Panel 249.00 $, 24 inch LCD Flat Panel 299.00 $
  • NVR and Cameras Warranty
    3 Year Warranty
  • Remote login
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
