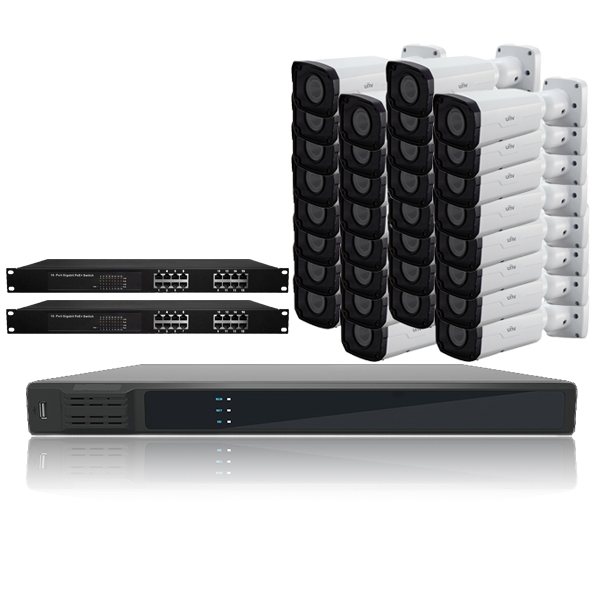

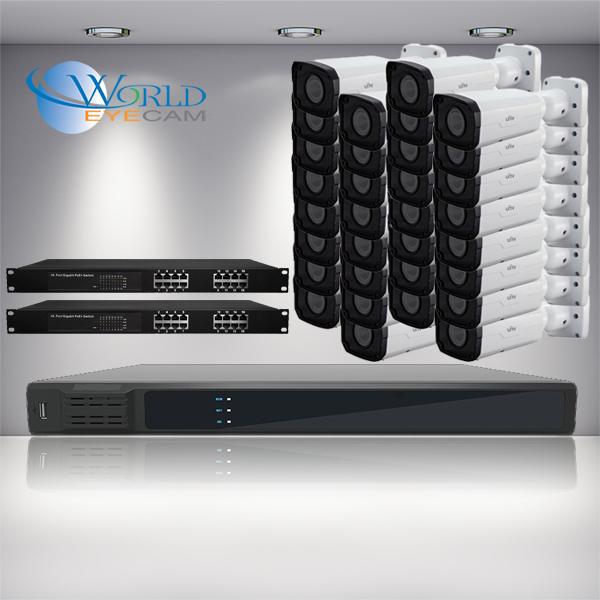

Uniview 32 Ch NVR & 32 HD 4 Megapixel 2.8-12mm Motorized Lens Bullet Camera Kit for Business Professional Grade


Please login or register to see price
Availability: In Stock
SKU: NVR304-32E-16-IPC2324EB-32-UNV-P
Product #: 88790
Manufacturer:
Camera Type: Bullet

The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!



The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the controls on this NVR.

The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder



Product Features



  • 32 IP Channel Inputs
  • 1 Independent 100M PoE+ Ports
  • 1 HDMI and 1 VGA Video Outputs
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • 1 RJ-45 10/100/1000M Ethernet Interface
  • 4 SATA Interfaces for Internal Storage
  • ONVIF Complianth



Remote Monitoring

Central Monitoring System: Have more than one location? Well accessing each of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP address.

Playback and Recording

Multiple Playback and Recording Options: The multiple recording options allow you to set your Universal DVR/NVR to record on a set schedule, continuously around-the-clock, or to further conserve hard drive space: only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users, using the multiple playback features.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Push Alerts

Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

E-map Function

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.

PTZ Control

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





**There are NO contracts or monthly fees with any WorldEyeCam purchase**






There have been no reviews

UNV Support


Uniview Support
Support Home

Uniview Quick Links


Uniview Remote Access Guides


Note! To Download Software Enter The Following Information:
Username: wec
Password: WEC1234$

Software Downloads


Networking


EZStation Client

Dealers and Installer Sign-up


Worldeyecam Dealers and CCTV Installers




Let's Get Started!

  • You must provide Worldeyecam, Inc with the Confidential Dealer / Reseller Application Form information.
  • Dealer LOGIN account will be created to display special discounted prices as an Worldeyecam Dealer/Distributor. You will be able to login and create quotes or simply order products at your discounted rate.
  • WorldEyeCAM, Inc. will add your business into our database of nationwide integrators and installers.
  • WorldEyeCAM, Inc will provide 1st Class Factory Trained technicians to provide fanatical technical support.
  • WorldEyeCAM, Inc. will advertise and promote your company on that we are partnered with installers that work in the area (cities and counties) that you service and cover.
  • When we get request for installation services in the area that you service, we will refer the customer to you for installation and sales.

Dealer Application
Click Here



Looking for a Quote from a local Installer? Click here



NVR


This UNV (Uniview) 32-ch 4-SATA 4K NVRhas the capability to record on 32 IP surveillance cameras channels and can record footage worth 12 MP of resolution. You can fix in 4 super strong SATA hard drives and each has a maximum of 8 TB of storage.



The NVR maintains third party IP security cameras as well. You also can connect to your NVR from multiple IP address and locations with no hassle. Included in the features is a collection of numerous recording and playback options.



The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs.



Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the PTZ controls on this NVR.

The UNV (Uniview) 32-ch 4-SATA 4K NVR



Product Features



  • 32-channel input
  • Third-party IP cameras supported with ONVIF conformance
  • Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • Accurate retrieval, instant playback
  • 4 SATA HDDs, Up to 8TB for each HDD
  • Support various VCA detection alarm and VCA search
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • Support for mobile client access



Remote Monitoring

Central Monitoring System: Have more than one location? Well accessing each of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP address.

Playback and Recording

Multiple Playback and Recording Options: The multiple recording options allow you to set your Universal DVR/NVR to record on a set schedule, continuously around-the-clock, or to further conserve hard drive space: only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users, using the multiple playback features.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Push Alerts

Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

E-map Function

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.

PTZ Control

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.



Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





**There are NO contracts or monthly fees with any WorldEyeCam purchase**





SPECIFICATIONS
Model NVR304-32E
Video/Audio Input
IP Video Input 32-ch
Two-way Audio input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote connection 128
Video/Audio Output
HDMI/VGA output HDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio Output 1-ch, RCA
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 16-ch
Decoding
Compression H.265/H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25
Hard Disk
SATA 4 SATA interfaces
Capacity up to 8TB for each HDD
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Network Function HTTP,HTTPS,UPNP, RTSP,RTP, SMTP, NTP, DHCP, DNS,IP Filter, PPPoE, DDNS, FTP, IP Server, P2P
Serial Interface: 1 x RS-485
USB Interface Front panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Supported Standard IEEE 802.3at
General
Power Supply 100 ~ 240 VAC
Consumption ( without HDD and PoE ) ≤ 12 W
PoE Max 30W for single port
Max 200W in total ( 12.5W for each )
Working Temperature -10?~ + 50? ( +14? ~ +131?)
Working Humidity 10% ~ 90%
Dimensions 44 * 440 * 344mm (1.7" * 17.3" * 13.5" )
Weight ( without HDD ) ≤ 3.14 Kg ( 6.92 lb )

Cameras


This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It is 4 megapixels and is fixed with optional lens size of 3.6mm or 6mm. With Infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has "Smart IR" which will adjust based on the situation to give you an optimal image.



The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space.The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet(1~2Mbs). The camera is wide dynamic range and very efficient for monitoring.









The UNV (Uniview) 4MP WDR Network IR Mini Bullet Camera. This is a 4 megapixel resolution IP bullet camera. It has an optional lens size of 3.6mm or 6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It is small and discreet but durable, with an IP66 rating.



Product Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 3D DNR (Digital Noise Reduction)

Compression

  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP66





Infrared

Smart IR Technology: This item comes with infrared technology, meaning not only can you see a longer distance in the dark but to bump up the ante, it also has "Smart IR" which will adjust based off of the situation to give you an optimal image.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





 WDR120dB

SPECIFICATIONS
Model IPC2124SR3-DPF
Camera:
Sensor 1/3” progressive scan, 4 megapixel, CMOS
Lens 12.0mm@F1.8
Iris Auto/Manual, F1.6 ~ F3.3
Shutter Auto/Manual, shutter time: 1/6 s ~1/8000 s
Minimum Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
S/N Ratio >55dB
Day / Night IR-cut filter with auto switch (ICR)
Angle of View (H) 25°
IR Range Up to 30m (98 ft) IR range
Video
Max. Resolution 1920 x 1080
Compression H.265/H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Motion Detection Up to 2 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Dimensions (Ø x H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45kg (0.99lb)
Working Environment -35?~60? (-31? ~ 140?), Humidity ≤ 95% RH (non-condensing)
Ingress Protection IP66

Mobile Apps


Uniview EZ-View Mobile App for iPhone and Android




EZView for iPhone and Android

Safe: data encryption, cell phone/e-mail registration, pin/gesture password and real-time alarm notification. Stable: add/manage/delete cloud devices, main/sub/third stream switch and multi-layer network address translation (NAT) traversal. Handy: quick add devices by scanning QR code, tap-drag live videos, gesture PTZ control and cellular/Wi-Fi data statistics



iPhone and iPad App

Android App

POE Switch


  • 16 PoE Ports at 10/100/1000 Mbps
  • Support up to 250W Max Power (30W per Port)
  • Auto-MDI/MDI-X
  • Compatible with IEEE 802.3af/at Standards
  • Power Protection on Low Power Devices
  • Smart Plug & Play / 19” Rack Mountable Case
  • StandardIEEE 802.3 at/af IEEE 802.3 10 BaseT IEEE 802.3u 100 Base-TX IEEE 802.3ab 1000Base-TX IEEE 802.3x Flow Control
  • Number of PoE Ports16 PoE Ports
  • MAC Address Table8K
  • Buffer Memory256 KB
  • Transmission MethodStore and Forward
  • Filtering/Forwarding Rates1000Mbps Port - 1,480,000pps 100Mbps Port - 148.800pps 10Mbps Port - 14,880pps
  • Transmission Media10 BaseT Cat 3, 4, 5 UTP/STP 100/1000 BaseTX Cat 5 UTP/STP
  • LED IndicatorsPer Port: Link/ Act, PoE ACT/ Status Per Unit: Power
  • Power Input100-240VAC, 50-60Hz
  • Power Output56VDC
  • Power Consumption250W Max Power, 30W per Port
  • Dimensions18.9" x 7.9" x 1.7"
  • Weight6.3 lbs
  • Operating Temperature32°F to 104°F
  • Storage Temperature-4°F to 158°F
  • Humidity10 to 90% RH (Non-condesending)
  • CertificationsFCC Class A, CE
