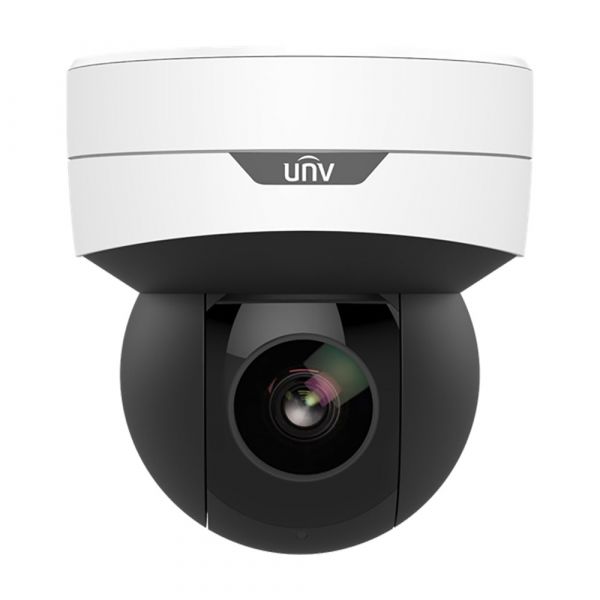

UN-IPC6412LRX5P | UNV 2MP IR Network Indoor Mini PTZ Camera


Please login or register to see price
Availability: In Stock
SKU: WEC-IPC6412LRX5P
Product #: 117671
Manufacturer:
Camera Type: PTZ
Camera Resolution: 2MP
Camera Signal: IP

Features

  • 1/2.9",progressive scan,CMOS
  • 1920×1080 resolution,30fps
  • 2.7~13.5mm, AF automatic focusing and motorized zoom lens
  • Ultra 265, H.265, H.264, MJPEG
  • Smart IR, up to 98ft 30m IR distance
  • 2D/3D DNR, ROI
  • DC12V, Wide voltage range of ±25%, PoE



More Information
Image Sensor 1/2.9" progressive scan, 2.0 megapixel, CMOS
Image Size 1920×1080
Electronic Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination

Colour: 0.03 lux (F1.2,AGC ON)
0 lux with IR

Focal Length 2.7~13.5mm,AF automatic focusing and motorized zoom lens
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.7mm 43.4 17.4 8.7 4.3
13.5mm 217 86.8 43.4 21.7





IR Distance UP to 30m (98ft)
S/N Ratio >52 dB
Angle of View Angle of View (H): 29.1°~104.3° Angle of View (V): 16°~55.1° Angle of View (O): 34.5°~142.9°
Wide Dynamic Range DWDR
OSD Yes
Video Compression Ultra 265,H.265, H.264, MJPEG
Video Resolution

1080P, 720P, CIF

Video Frame Rate

Main Stream:1080P (1920×1080):Max. 30 fps;
Sub Stream:720P (1920×1080):Max. 30 fps;
Third Stream: CIF (352×288): Max. 30 fps

Day / Night IR-cut filter with auto switch (ICR)
BLC Mode Supported
HLC Supported
ROI Up to 2 areas
Digital Noise Reduction 2D/3D DNR
Motion Detection Up to 4 areas
Privacy Masking Up to 4 areas
Audio In Bulit in Mic
Ethernet 1 RJ45 10M/100M Base-TX Ethernet
Network Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Storage ANR
Storage Card Micro SD, up to 256 GB
Mobile iPhone, Android
Pan Range 0° ~ 350°
Pan Speed 0.1°/s ~ 60°/s Preset speed: 60°/s
Tilt Range 0° ~ 90°
Tilt Speed 0.1° ~ 50°/s Preset speed: 50°/s
Number of Preset 1024
Home Position Supported
Smart Tracking Tracking the specified target
Power Supply DC 12V±25%, PoE (IEEE802.3 af)
Power Consumption Max 12W
Operating Temperature -10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
Dimensions Φ129mm×143mm(Φ5.07” x5.63”)
Weight 0.75kg(1.65lb)
Reset Button Supported
