TI2550 THERMAL FIXED 50mm 24v. 30hz
SKU: TI2550

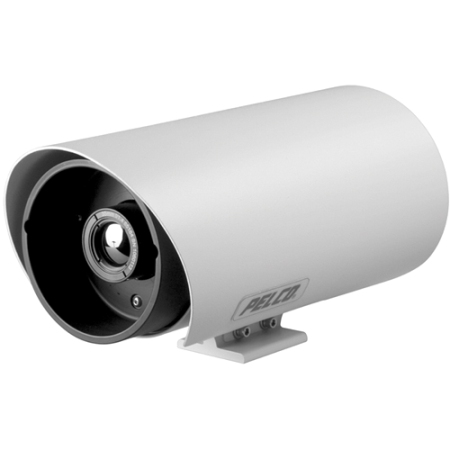

The TI2550 Fixed-Mount Thermal Imager from Pelco is a powder-coated,
aluminum constructed enclosure, which is ideal for either indoor or
outdoor applications. With standard features like a sun shroud and
built-in thermostatically controlled heater, the TI2550 can typically be
found in any environment.
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera, which delivers 320 x 240 thermal video and supports 2x digital zoom. The device provides outstanding sensitivity below 85 mK at f/1.4 and is capable of multiple display formats, including white hot, black hot, and color signatures.
The integrated fixed mount thermal imager can accommodate many security environments.
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera, which delivers 320 x 240 thermal video and supports 2x digital zoom. The device provides outstanding sensitivity below 85 mK at f/1.4 and is capable of multiple display formats, including white hot, black hot, and color signatures.
The integrated fixed mount thermal imager can accommodate many security environments.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
TI2550 THERMAL FIXED 50mm 24v. 30hz
The TI2550 Fixed-Mount Thermal Imager from Pelco is a powder-coated, aluminum constructed enclosure, which is ideal for either indoor or outdoor applications. With standard features like a sun shroud and built-in thermostatically controlled heater, the TI2550 can typically be found in any environment.
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera, which delivers 320 x 240 thermal video and supports 2x digital zoom. The device provides outstanding sensitivity below 85 mK at f/1.4 and is capable of multiple display formats, including white hot, black hot, and color signatures.
The integrated fixed mount thermal imager can accommodate many security environments.
Advanced Thermal Imaging Device
Offers a completely integrated advanced thermal imaging device in a Pelco outdoor enclosure
Uncooled, Vanadium Oxide Microbolometer
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera
320 x 240 Resolution, 38 Microns Pixel Size
It delivers 320 x 240 thermal video and supports 2x digital zoom
Lens Configuration
The integrated enclosure is available with a 50mm lens for effective deployment in a wide range of applications
Sensitivity Below 85 mK at f/1.4
Provides outstanding sensitivity below 85 mK at f/1.4. It is capable of multiple display formats, including white hot, black hot, and color signature
Powder-Coated, Aluminum Enclosure
The powder-coated, aluminum constructed enclosure makes the unit ideal for either indoor or outdoor applications. With a sun shroud and a built-in thermostatically controlled heater, the enclosure can be used in any environment
Features:
Specifications :
The TI2550 Fixed-Mount Thermal Imager from Pelco is a powder-coated, aluminum constructed enclosure, which is ideal for either indoor or outdoor applications. With standard features like a sun shroud and built-in thermostatically controlled heater, the TI2550 can typically be found in any environment.
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera, which delivers 320 x 240 thermal video and supports 2x digital zoom. The device provides outstanding sensitivity below 85 mK at f/1.4 and is capable of multiple display formats, including white hot, black hot, and color signatures.
The integrated fixed mount thermal imager can accommodate many security environments.
Advanced Thermal Imaging Device
Offers a completely integrated advanced thermal imaging device in a Pelco outdoor enclosure
Uncooled, Vanadium Oxide Microbolometer
At the core of the TI2550 is an uncooled, vanadium oxide 38 microns microbolometer, Long Wave Infrared (LWIR) camera
320 x 240 Resolution, 38 Microns Pixel Size
It delivers 320 x 240 thermal video and supports 2x digital zoom
Lens Configuration
The integrated enclosure is available with a 50mm lens for effective deployment in a wide range of applications
Sensitivity Below 85 mK at f/1.4
Provides outstanding sensitivity below 85 mK at f/1.4. It is capable of multiple display formats, including white hot, black hot, and color signature
Powder-Coated, Aluminum Enclosure
The powder-coated, aluminum constructed enclosure makes the unit ideal for either indoor or outdoor applications. With a sun shroud and a built-in thermostatically controlled heater, the enclosure can be used in any environment
Features:
- Advanced Thermal Imaging Device
- Uncooled, Vanadium Oxide Microbolometer
- 320 x 240, 38 Microns Pixel Size
- Sensitivity Below 85 mK at f/1.4
- 2x Digital Zoom
- Powder-Coated, Aluminum Enclosure
- 50mm Lens
- Designed for Maximum Rain Protection
- Included Sun Shroud & Heater
Specifications :
| Signal System | NTSC |
| Construction | Aluminum |
| Finish | Gray Polyester Powder Coat |
| Environment | Indoor/Outdoor |
| Image Controls | 2x digital zoom |
| Display Format | White hot, black hot, and color signatures |
| Field of View | 14 x 10° |
| Focus Range | 13 ft (4m) to infinity |
| Lens | 50mm |
| Pixel Resolution | 38 microns |
| Image Controls | 2x digital zoom |
| Detectors | Uncooled microbolometer, vanadium oxide |
| Normalization Source | Internal shutter (offset only), 0.7 seconds video freeze during shutter wink |
| Array Format | 320 x 240 |
| Format | 30Hz |
| Spectral Response | 7.5-13.5 ¼m, LWIR |
| Video Output | 1 Vp-p, 75 ohms |
| Serial Interface | RS-232/RS-422 compatible |
| Temporal NEdT | 85 mK at f/1.4 |
| Orientation | Invert/revert capability in software |
| Operating Temperature | -25 to 131°F (-32 to 55°C) |
| Dimensions | 10.5 x 8 x 5" (267 x 203 x 127mm) |
| Weight | 4.7 lbs (2.1kg) |
