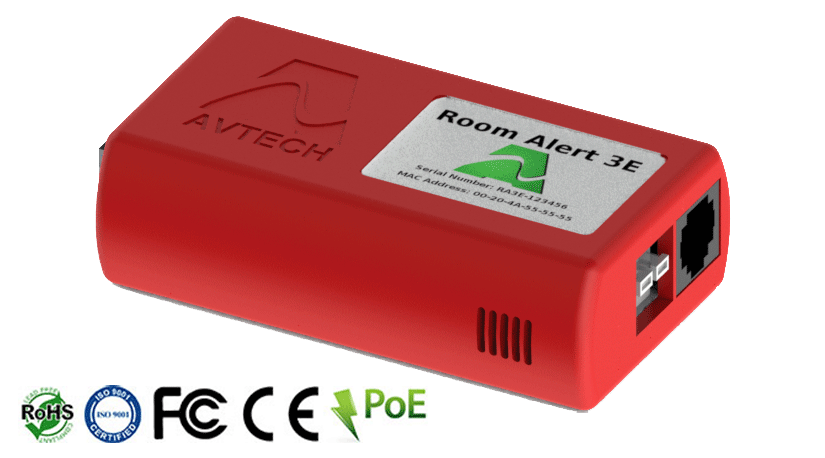

Room Alert 3E Monitor
Room Alert 3E is AVTECH's most economical solution for highly targeted or wide volume "IT & Facilities Environment Monitoring, Alerting & More". This is the most widely used product of its type worldwide. Room Alert 3E is designed specifically to assist with monitoring room temperature and other environmental conditions where a small footprint is needed, where access to electricity may not exist, when the investment cost needs to be minimal or deployment volume may be high. It is the least cost host for a Light Tower & Relay Adapter (LTA) that allows connection of an AVTECH Light Tower, Light Tower w/Audio or Relay Switch Sensor. Add a digital sensor and switch sensor of your choice to expand monitoring with an easy "click connect". Room Alert 3E environment and IT monitoring is is a PoE enabled device although if your network is not PoE, simply use the included power adapter and you are good to go. Install this in minutes.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Room Alert 3E is AVTECH's most economical solution for highly targeted or wide volume "IT & Facilities Environment Monitoring, Alerting & More". This is the most widely used product of its type worldwide. Room Alert 3E is designed specifically to assist with monitoring room temperature and other environmental conditions where a small footprint is needed, where access to electricity may not exist, when the investment cost needs to be minimal or deployment volume may be high. It is the least cost host for a Light Tower & Relay Adapter (LTA) that allows connection of an AVTECH Light Tower, Light Tower w/Audio or Relay Switch Sensor. Add a digital sensor and switch sensor of your choice to expand monitoring with an easy "click connect". Room Alert 3E environment and IT monitoring is is a PoE enabled device although if your network is not PoE, simply use the included power adapter and you are good to go. Install this in minutes.
Features & Specification For Room Alert 3E
Hardware
ID Box Model
RA3E
ID Box Dimensions
0.875" H x 3.625" D x 1.75" W
ID Box Weight
7.8 oz
ID Box Color
Red
Rack Mounted Model
None
Rack Mounted Size (1U 19")
*
Rack Mounted Weight
*
Rack Mounted Color
*
Rack Mounting Kit Available Separately
No
Wall Mounting Kit Available Separately
No, Built-In
Ceiling Mounting Kit Available Separately
No, Built-In
Operating Temperature
-40 to 185 F (-40 to 85 C)
Operating Relative Humidity (Non-Condensing)
5% - 85% RH
Power Source
5 VDC 1A Adapter (Included)
Power Over Ethernet (PoE)
Yes (IEEE 802.3af)
Power Compatibility
110/240 VAC, 50/60 Hz, RoHS
Power On/Off Switch
No
Built-In Uninterruptible Power Supply (UPS)
No
Built-In UPS Status Indicator (Red Battery/Green A)
No
Mini UPS (MUPS) Compatible, Upgrade Cost
Yes, $85
MUPS Status Indicator (Red Battery / Green AC)
No
PoE & WLAN Activity Indicators (LED)
No, No
International Power Adapter Provided
Yes
Reset Button (Restore To Default Settings)
Yes
0-5V Analog Sensor Input
No
External Relay Outputs
No
External Light Tower & Relay Connection Port
Yes, Use Digital Sensor Port w/Light Tower & Relay Adapter (LTA)
External Light Tower, Cable & Mounting Bracket
Optional
External Light Tower or Relay Switch Sensor Port
No
External Light Tower & Power Adapter Port
1 (via Digital Port)
Ethernet Port & Speed
RJ-45, 10/100 Mbps BaseTX
Ethernet Link & Activity Indicator
Yes
Ethernet Cable (Included)
No, Optional
Wi-Fi Enabled
No
Web Server (Built-In)
Standalone Capability (No PC Required)
Yes
Built-In Web Server
Yes
Web Browser Interface
Yes
Password Protected
Yes, 3 Levels
Built-In Web Server Alert Methods
Email, SMS, SNMP, Web
Built-In Web Server Alert Recipients
Individuals, Groups, Hierarchies
Built-In Ping Capability
No
Graphic Sensor Status Displays
Yes
Real-Time Digital Temperature
Yes
Temperature Values Displayed
Yes, Fahrenheit or Celsius
Temperature High / Low Watermarks Displayed
Yes
Real-Time Digital Humidity
Yes
Humidity Values Displayed
Yes, % Relative Humidity
Humidity High / Low Watermarks Displayed
Yes
Heat Index Calculated & Displayed
Yes, Fahrenheit or Celsius
Real-Time Values In Alerts
Yes
Easy Click Firmware Updates
Yes
SNMP Enabled (Trap & Query)
Yes
Compatible With SNMP Monitoring Applications
Yes
Real-Time Logging Of Sensor Data Via...
Device ManageR & SNMP
Real-Time Sensor Data Feeds
HTTP, SNMP, JSON, AJAX
MIB Files Available
Yes, Download
Digital Sensors (Internal & External)
Digital Sensor Compatibility
Temperature, Outdoor Temperature, Fluid Temperature, Temperature & Humidity, Temperature & Analog, Active Power
Built-In Digital Sensors (Internal)
Temperature
Digital Sensor Ports (External)
1 RJ-11
Digital Sensor Capacity (Total)
2
Digital Temperature Sensors Supported
Yes
Digital Temperature Sensors Included
1 Internal
Digital Temperature Sensor Range
-40 to 185 F (-40 to 85 C)
Digital Temperature Sensor Accuracy
+ / - 2 C
Digital Temperature Sensor Resolution
0.03125 C
Digital Humidity Sensors Supported
Yes
Digital Humidity Sensors Included
No
Digital Humidity Sensor Range
5% to 95% RH
Digital Humidity Sensor Accuracy
+/- 4.5%
Digital Sensor Cable Type & Standard Length
RJ-11 Cable, 25'
Maximum Digital Sensor Cable Length
Approximately 100'
Digital Sensor Alert Indicator (LED)
No
Switch Sensors (Internal & External)
Switch Sensor Contact Sets (External)
1 On Back Side
Switch Sensor Capacity
1
Built-In Switch Sensors (Internal)
None
Power Sensor
Optional
Mini UPS & Power Sensor
Optional
Flood Sensor
Optional
Smoke Sensor
Optional
IP Camera With Motion Sensor
Optional
Air Flow Sensor
Optional
Room Entry Sensor
Optional
Panic Button
Optional
Other AVTECH Sensors (See Website)
Optional
Dry Contacts (On Other Sensors or Devices)
Air Conditioner, UPS, Cooler, Etc.
Allows Multiple Sensors On Single Channel **
Yes, Via Chain or Spoke **
Switch Sensor Cable Type & Standard Length
2 Wire Cable, 25'
Maximum Switch Sensor Cable Length
Approximately 900'
Switch Sensor Alert Indicator (LED)
No
Wireless Sensor Hubs
WiSH Sensor Compatible (Powered or Battery)
No
WiSH Units Included
*
WiSH Communication Range (Distance)
*
WiSPR Sensor Compatible
No
WiSPR Units Included
*
WiSPR Communication Range (Distance)
*
Maximum WiSH/WiSPR Capacity (Quantity)
*
WiSH Signal Strength Indicators (LED)
*
Wireless Sensor Alert Indicator
*
Bundled Device ManageR Software
Device Manager Software License
Full Use License Included Free
* NOTE: This 'Does Not Apply' to this product.
** NOTE: The process of 'Chaining' or 'Spoking' multiple switch sensors together is sometimes possible although not recommended by AVTECH. There is no individual sensor alerting when multiple sensors are 'Chained' or 'Spoked' from a single
*** NOTE: A free Account upgrade to the Personal level is provided without charge with your organizations first Room Alert purchase after January 1, 2015. Optional upgrades and extensions of your Room Alert Account are available on an optional basis. Reffer to your account information or contact your Product Specialist for details.
