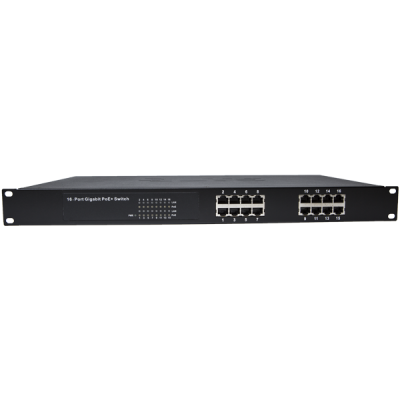

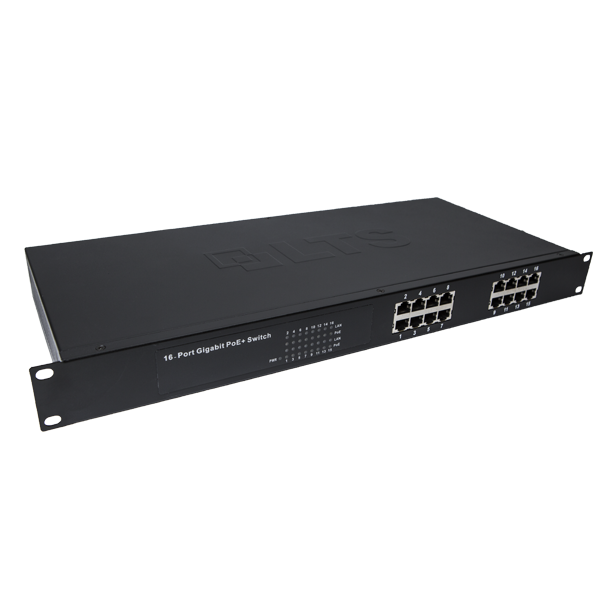

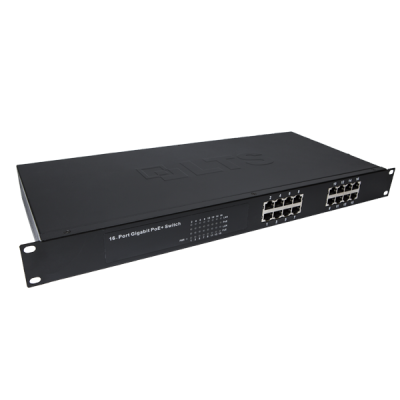

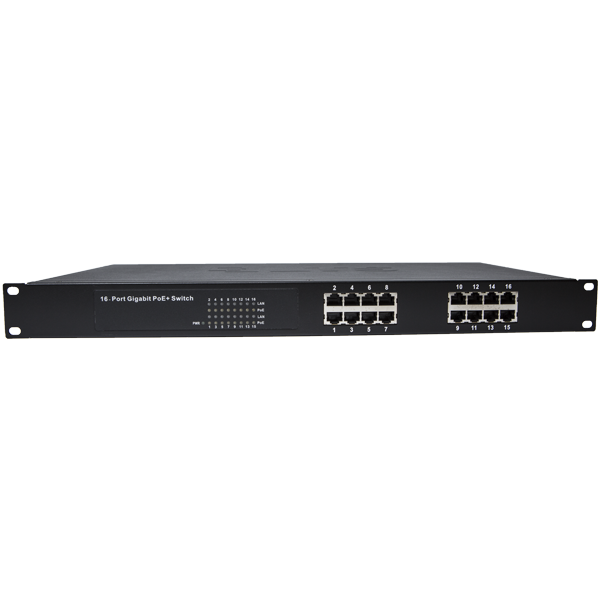

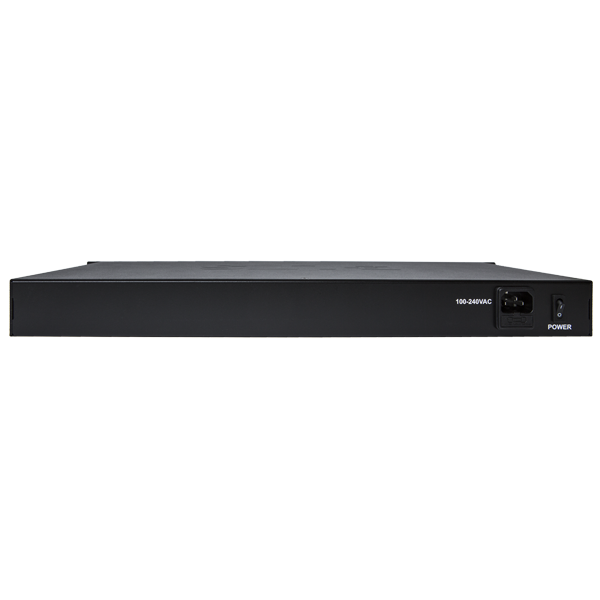

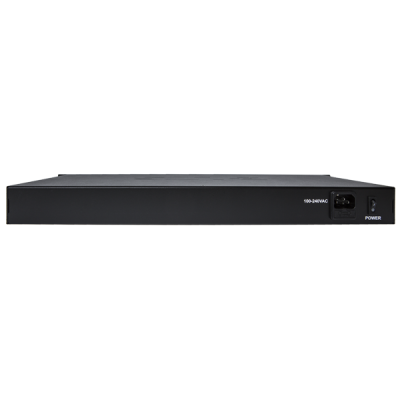

PoE 16 Port Gigabit Switch - 250W


$365.00


Availability: In Stock
List Price: $450.00
SKU: POE-SW1600G
Product #: 86786
Manufacturer:

Quantity

  • 16 PoE Ports at 10/100/1000 Mbps
  • Support up to 250W Max Power (30W per Port)
  • Auto-MDI/MDI-X
  • Compatible with IEEE 802.3af/at Standards
  • Power Protection on Low Power Devices
  • Smart Plug & Play / 19” Rack Mountable Case

There have been no reviews

Specifications


General


  • StandardIEEE 802.3 at/af IEEE 802.3 10 BaseT IEEE 802.3u 100 Base-TX IEEE 802.3ab 1000Base-TX IEEE 802.3x Flow Control
  • Number of PoE Ports16 PoE Ports
  • MAC Address Table8K
  • Buffer Memory256 KB
  • Transmission MethodStore and Forward
  • Filtering/Forwarding Rates1000Mbps Port - 1,480,000pps 100Mbps Port - 148.800pps 10Mbps Port - 14,880pps
  • Transmission Media10 BaseT Cat 3, 4, 5 UTP/STP 100/1000 BaseTX Cat 5 UTP/STP
  • LED IndicatorsPer Port: Link/ Act, PoE ACT/ Status Per Unit: Power
  • Power Input100-240VAC, 50-60Hz
  • Power Output56VDC
  • Power Consumption250W Max Power, 30W per Port
  • Dimensions18.9" x 7.9" x 1.7"
  • Weight6.3 lbs
  • Operating Temperature32°F to 104°F
  • Storage Temperature-4°F to 158°F
  • Humidity10 to 90% RH (Non-condesending)
  • CertificationsFCC Class A, CE
