200ft NIGHT GUARDIAN SONY 960H EFFIO 700 TV LINES Digital CCD Color IR Night Vision Security Camera


$239.00


Availability: Out of Stock
Ships Same Day
List Price: $379.00
SKU: NIGHTGUARD-700TVL-B
Product #: 47462
Manufacturer:
Camera Resolution: 700 TV Lines
Camera Signal: Analog
Keywords: Outdoor NIGHTGUARD-700TVL-B SONY HQ1 600 TV LINES Digital CCD Color Infrared Security Camera
Description: Outdoor NIGHTGUARD-700TVL-B SONY HQ1 600 TV LINES Digital CCD Color Infrared Security Camera
UPC: 881314694235
Shipping Lead Time: Ships Same Day

Casing Color:
Video and Power Cables:
Power Supply:
Remote Login Support:
Quantity

This surveillance camera is ideal for nighttime recording. It has infrared technology for recording clear images in total darkness. The security camera records video with a 700TVL resolution and automatic grain control. It has a 2.8-12mm varifocal lens with manual zoom. The surveillance camera is weatherproof and approved for outdoor use.



NightGuard Camera Features:
  • Sony Effio Technology
  • 1/3" Inch Format CCD Sensor
  • Digital Signal Processing
  • 700 Max TV Lines Resolution
  • 0 Lux Infrared Sensitivity

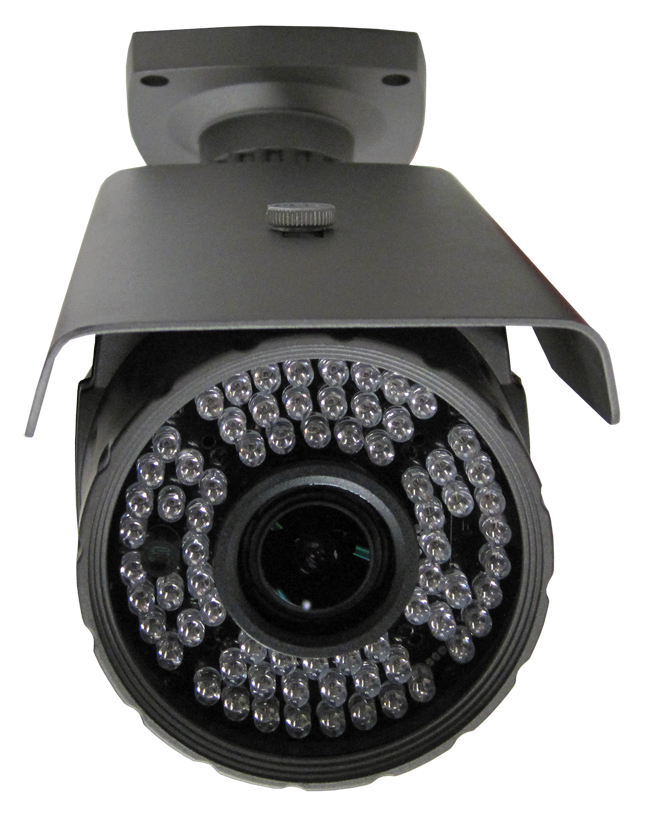

  • 72 High Powered LED Illuminators - 195' IR Night Vision
  • External Adjustable Varifocal Lens
  • Automatic Gain Control (AGC)
  • Automatic White Balance
  • IP66 Weatherproof Rating

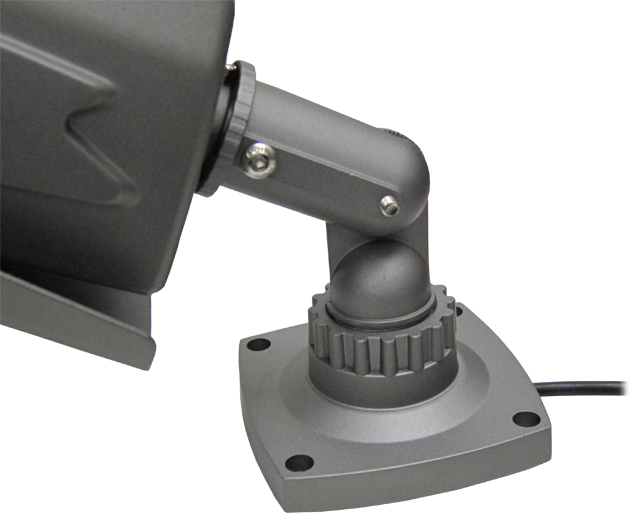

  • Integral Feed through Mount Included
  • Shipping Weight: 3LBS
Nightguard camera

Model

NIGHTGUARD-700TVL-B

Pick up Element

1/3" SONY Super HAD CCD

DSP

SONY Effio

Effective Picture Elements (H×V)

NTSC:1020(H)×508(V) PAL:1020(H)x596(V)

Horizontal Resolution

700 TV Line ( 700 TVL B/W )

Minimum Illumination

0.001 Lux

Minimum Illumination

0Lux (with IR LED ON)

S/N Ratio

More than 48dB

Scanning System

2:1 interface

Synchronous System

Internal, Negative sync.

Auto Electronic Shutter

NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s

Gama Characteristic

0.45

IR Distance

60 Meters (with à5X72PCS Infrared LED)

IR Status

Under 10Lux by CDS

IR Power On

CDS AUTO Control

Video Output

1Vpp, 75©

Auto Gain Control

Auto

Power/Current

DC12V/800mA

Lens

2.8-12 mm Manual Zoom Lens

Dimension (mm)

295(W)x120(H)x103(D)

Weight (g)

1600

Storage Temperature

-30~+60 RH95% MAX

Operating Temperature

-10°C~+45°C / 14°F~113°F RH95% MAX



Sony EFFIO Camera Features

The NIGHTGUARD-700TVL digital color camera features Sony’s latest Effio technology. The camera offers great improvement in low lux performance and literally turns night into day. The NIGHTGUARD-700TVL features a high resolution 700 line CCD in the 1/3-inch format.

Typical color cameras are unable to produce usable images in low light conditions. Sony’s new dual sensor solves this issue. The NIGHTGUARD-700TVL Sony Super HAD™ technology utilizes an auto-switching CCD that automatically switches to black and white with infrared assist during low lux environments.

The camera features a 2.8-12mm varifocal lens, adjustable from the bottom of the camera.

The NIGHTGUARD-700TVL day/night color camera provides exceptional illumination with its high powered array of 72 LED illuminators. The cameras IR range is in excess of 195 feet.

Encased in an IP66 enclosure, the NIGHTGUARD-700TVL can operate under a variety of harsh, outdoor environments. Water, dust, and crush resistant glass coating ensures a clear, vivid picture, while the material coating isolates ultra-violet rays ensuring long and stable operation.

Warranty: 1 Year

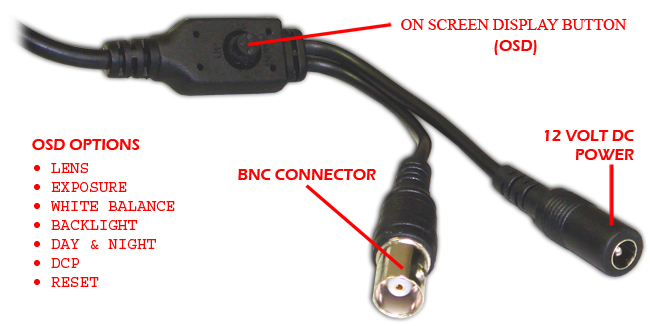

BNC and 12 volt DC power BNC / 12 Volt DC
