Outdoor IMaxCamPro-800TVL Bullet Security Camera 3.6mm


$69.00


Availability: Out of Stock
Ships Same Day
List Price: $169.00
SKU: IMaxCamPro-800TVL-13
Product #: 82456
Manufacturer:

Cables:
Power Supply:
Remote Login Support:
Quantity

iMaxCamPro 800TVL

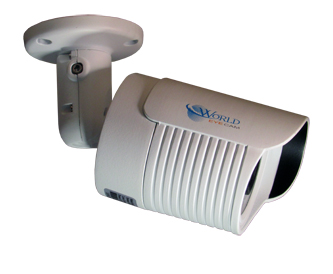

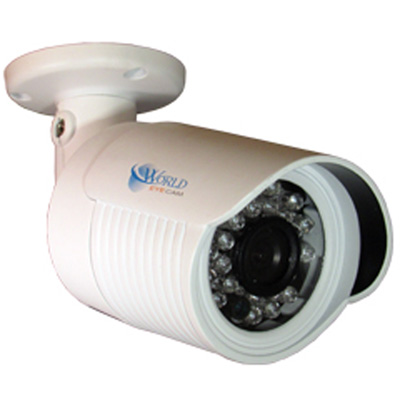

This bullet surveillance camera has a 3.6mm wide angle lens recording images with an 800TVL resolution. It has infrared technology for recording up to 60 feet away even in total darkness. The security camera meets IP66 standards and is approved for outdoor use. Power is supplied by 12V DC.




  • 3.6mm Fixed Lens
  • 1/3" CMOS
  • Digital Signal Processing
  • 800 Max TV Lines Resolution
  • IP66 Weatherproof Rating
  • UL Listed Vandal-proof
  • Compact Housing
  • Effective Picture 976(H)X496(V)
  • Minimum Illumination 0 lux/F1.2
  • S/N Ratio More than 46dB
  • Synchronous System Internal, Negitive sync.
  • Auto Electric Shutter NTSC: 1/60s~1/100
  • Gama Characteristics 0.45
  • IR Distance 60 Feet with 24pc Infared LED
  • Video Output 1Vpp, 75ohm
  • Auto Gain Control
  • Power / Current DC12V (+/-10%) 350mA
  • LensBoard Lens 3.6mm/F2.0
  • Dimensions 5.8" X 2.5" X 2.4"
  • Weight (g) 500
  • Operating Temperature 14~122F RH95% MAX

Average Customer Rating:


1 Most useful customer reviews
Carol Ramírez
May 18, 2016
This customer purchased the item at our site.
The king of all outdoor and weather proof cameras, mainly due to its features and strong exterior quality. This camera has passed and ruled over IP66 standards, while braving temperatures upto 122F and below zero, and various other outdoor hurdles it still manages to perform up to the standard in a number of ways. Like when it got UL listed for being Vandal-proof, or when it gave me up to 60ft infra-red vision at night time.

Being a geek an admirer of electronics since a very early age, I always had an eye out open for new additions in my world of electronics that I grew up to surround myself with. Later this stemmed into a hobby of collecting security gear, and after adding this one to my collection I was fascinated by such an affordable camera providing such heavy duty work.

At $69 you shouldn’t waste time and order your one for tomorrow, now!
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
