16CH IMAX NVR & Ninja 4 Megapixel IP Mini Bullet Camera 16 Cam Kit (White)


$2,899.00


Availability: In Stock
Ships Same Day
List Price: $5,000.00
SKU: IMAX-4MP-POE-IP67-KIT-NJMB16
Product #: 91162
Manufacturer:
Camera Type: Bullet
UPC: 881314694068
Shipping Lead Time: Ships Same Day

Hard Drive #1:
Hard Drive #2:
Monitor:
Cables:
Remote Login Support:
Quantity

Analog or IP Cameras ?

Which System is Right For You?

Why Choose Worldeyecam ?

Watch our Video!

Ninja IP Camera Series

Ninja IP Camera Series

How to Setup Motion Recording

How to Setup Motion Recording


This IP surveillance system kit comes with a 16 channel NVR with PoE+ and 16 HD 4MP Motorized mini bullet security cameras. The NVR comes with a free pre-installed 1TB HDD and can record up to 4K (2560×1440) resolution on all 16 channels. The mini bullet security cameras capture 4mp resolution footage and transmit that footage to the NVR via the included RJ45 cable. The kit also comes with FREE Monitoring Software so you can monitor your surveillance footage from anywhere.



What's Included


NVR Recorder

Universal NVR Recorder

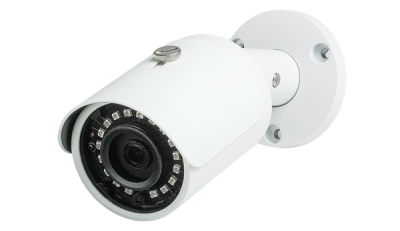

(16) 4MP WDR IP IR mini bullet Camera



(16) FREE 100 FT RJ45




(1) FREE 1 TB Hard Drive




Lifetime Technical Support



Mobile apps & Monitoring Software




2 Year Warranty








Why IP POE ?


NVR FEATURES


Camera In Day Time

Night Vision Camera

Night Vision Camera

Camera In Day Time

Camera In Day Time

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail

Set your NVR to automatically send you an e-mail or a Push notification with video clip every time there is a motion triggered event, so you'll never miss anything important.


Face Detection

Face Detection

The Face Detection function is used to search for or identify individuals. The Smart Search function assists you in easily finding any motion detection footage for future analysis, making monitoring simple and effective.




H.265 Real-time Recording and Playback

Its H.265 compression greatly reduces the size of your digital video files without compromising image quality, which means unbeatable recording picture quality that doesn't eat up valuable hard drive storage space.



Remote Monitoring


Central Monitoring System

The IP NVR can auto detect the signal from cameras without any settings, making operation a breeze.



No Port Forwarding

Remote Monitoring

Don't have immediate access to your NVR? Don’t worry. You can effortlessly log in to your recordings by accessing them on any compatible internet ready device, such as your smartphone or tablet.


Multiple Playback and Recording Options

Multiple Playback and Recording Options

Multiple recording options allow you to set your NVR to record on a set schedule: continuous around-the-clock recording or only when motion is detected, to save hard drive space. You can also select the number of cameras displayed on one screen. With multiple playback options you can even hide certain cameras from other users.


3D Intelligent Positioning

Digitally control your PTZ cameras (move the point of view up, down, left, right, and zoom in and out) from your monitor and mobile applications.



Camera Spec Sheet


Average Customer Rating:


4 Most useful customer reviews
Sandeep
Aug 29, 2017
This customer purchased the item at our site.
While the instructions were confusing for me. I worked with Abe in Tech Support and He had the system up and running in about 5 minutes. What a picture!
Loading...Was the above review useful to you? Yes (0) / No (0)
Dyan Bickel
Aug 9, 2017
This customer purchased the item at our site.
When it came to dome cameras I got this product, though I was not sure about its workability. But now I can say I am fully satisfied with the product. Its compatible structure attracted me though. But all the features, I must say, added up me with an extra eye. The HD quality picture even help you to detect small things as well. And the best thing is I can control it from anywhere. It’s been very easy for me to keep an eye on my shop even at the midnight. I must say this is the best security in an affordable price.
Loading...Was the above review useful to you? Yes (0) / No (0)
Maranda Mcferren
Aug 8, 2017
This customer purchased the item at our site.
This not just a surveillance kit this is an extra pair of eye which I installed in my place to look after when I am not around. And I must say with an upgraded lens my extra pair of eyes are just working great. It comes with a free Hard Drive storage of 1 TTB and provides Ultra HD picture quality. The best thing is it also saves my electricity bills up to a good extent as it comes with free cables as well. It is also easy to operate. Just one touch in your mobile makes you connect with your camera. Thanks to the remote monitoring app.
Loading...Was the above review useful to you? Yes (0) / No (0)
Berta Kreamer
Aug 1, 2017
This customer purchased the item at our site.
I am very much thankful to the manufacturer of this product. This product is endowed with all those features which makes it one of the best security device in the market. It has come with an H.265 NVR which is capable of viewing low complexity area with more precision. The cameras are also capable of providing a detailed zoom view of surveillance area with the assistance of the PTZ function. I will always refer for this product if you are looking for the best surveillance kit.
Loading...Was the above review useful to you? Yes (0) / No (0)

NVR


NVR User Manual


SPECIFICATIONS
Model WEC-NVR4416-16P-4K NVR4416-16P-4K
IP Camera Imputs 16 Channels
Two Way Talk 1 Channel RCA Input / Output
Display Interface 2 HDMI, 1 VGA
Display Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split 1 / 4/ 8 / 9
On-Screen Display Camera Title, Time, Video Loss, Channel Lock, Motion Detection, Recording
Video Compression H.265 / H.264 / MJPEG
Recording Resolution 12MP, 8MP, 6MP, 5MP, 3MP, 1080p, 1.3MP, 720p, D1
Recording Rate 192Mbps
Bit Rate 1 - 20Mbps
Recording Mode Manual, Schedule (Continuous, MD, Alarm), Stop
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, E-mail, FTP, Snapshot, Buzzer, On-Screen Notification
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Relay Outputs 6 Channels
Synchronized Playback 1 / 4 / 9 / 16
Search Mode Time/Date, Alarm, MD & Exact Search (accurate to second), Smart Search
Playback Functions Play, Pause, Stop, Rewind, Fast Forward, Frame by Frame, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Media USB Device / Network / Internal SATA burner / eSATA Device
Network interface 1 RJ-45 (10/100/1000M) Ethernet Port
PoE 16 ports (IEEE802.3at/af)>
Network Protocols HTTP, TCP/IP, IPv4/IPv6, UPnP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Remote User Access Maximum 128 Users
HDD Interfaces 4 Internal SATA III Ports with a maximum storage capacity of 6TB each, 1 eSATA port
USB Interfaces 1 USB 2.0 Port (front), 2 USB 3.0 Port (rear)
RS-232 Interface 1 Port for PC Communication and/or Keyboard
RS-485 Interface 1 Port for Serial PTZ Control
General
Power Requirement AC100V - 240V, 50/60Hz)
Power Consumption NVR: Maximum 27W (without HDD)
Operating Environment Operating Environment -10°C - +55°C, Less than 90% Relative Humdity
Dimensions 1.5U, 440mm x 405mm x 76mm
Weight 11 lbs (without HDD)
Shipping Weight 23 lbs (Dimensional Weight)
