Availability: Out of Stock
List Price: $911.98
SKU: AP-4 (LE-134)
Product #: 83813
Manufacturer: Louroe Electronics



  • Lroe 4 Zone Audio Desk Top
  • Network Devices

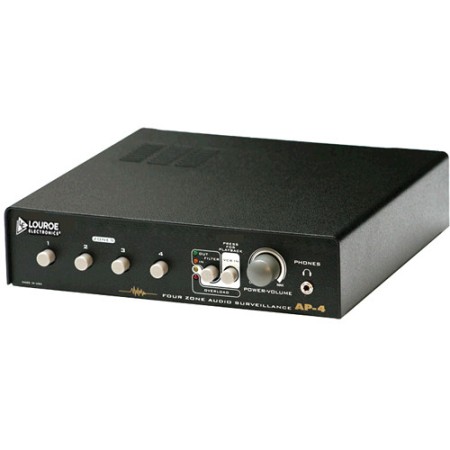

The Louroe Electronics AP-4 Audio Monitoring Base Station is a four-zone, non-alarming audio monitoring base station. It contains four audio inputs (terminal blocks) for connecting up to four Louroe microphones for live monitoring and has four audio outputs (RCA type) for connection to a DVR with multiple audio inputs.

This audio monitoring base station also contains a selectable audio output (RCA) for connection to a VCR or to a DVR with only one audio input. An audio input is available for audio playback from the DVR or the VCR. A 3" (76.2m) built-in speaker provides live audio and playback audio. Distance between the AP-4 base station and the microphones can be up to 1,000' (305m).

Note! When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone.

Built-in amplifier and 3" (76.2m) speaker for monitoring live audio and playback
Audio output (each zone) for connection to a DVR with multiple audio inputs
Volume control
Headphone jack for private monitoring
Desktop model
Applications: The AP-4 Base Station can be used in situations such as sleep disorder centers, therapy labs, fast food restaurants, convenience stores, interrogation rooms, day care centers, and anywhere CCTV cameras are installed
Made in USA
Input Sensitivity 0.78 Vrms from remote microphone
Monitoring Power Output: 1.5 W @ 8 Ω
Audio Line Output Impedance: 600 W or higher
Audio Input Impedance 10 kΩ
Frequency Response 100 Hz to 10 kHz
Headphone Impedance 8 to 600 Ω
Power Input 12 VDC, 500 mA
Power Supply 12 VDC / 110 VAC (included)
Wiring Requirements: 2 conductor shielded cable, 22 gauge with a 24 gauge drain wire. 1
Dimensions (L x W x H) 9.50 x 8.50 x 2.12" (241.30 x 215.90 x 53.84 mm)
Weight 3.5 lb (1.6 kg)
