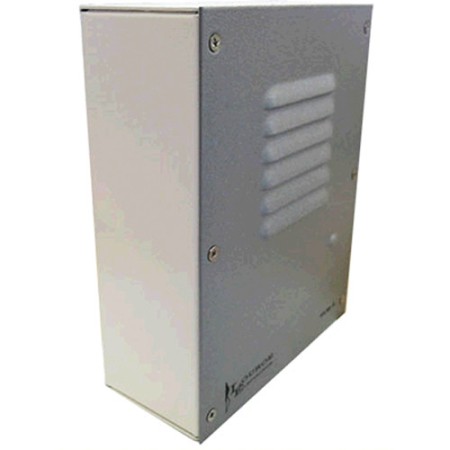

The Louroe Electronics TLM-E 2-Way Speaker/Microphone features an electret condenser microphone and a 4” (10.1cm) speaker, all within one housing. As a part of a Louroe audio system, it provides two-way communication between the remote area and the audio-receiving device (Louroe Base Station, etc). Provided with this 2-way unit are two back boxes for either flush mounting or surface mounting to a wall or a surface mount.
Note! When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped.
Requirements: 4 conductor wires consisting of 2 conductor-shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2 conductor-unshielded wires, 18-gauge (speaker connection), all in the same jacket
Metal surface mount box (H x W x D): 6.2 x 8.0 x 2.7" (15.8 x 20.3 x 6.8 cm),
plastic flush mount box
back box portion (H x W x D): 5.0 x 6.8 x 2.6" (12.7 x 17.2 x 6.6 cm),
total including flange (H x W x D): 6.2 x 8.0 x 2.6" (15.7 x 20.3 x 6.6 cm)
