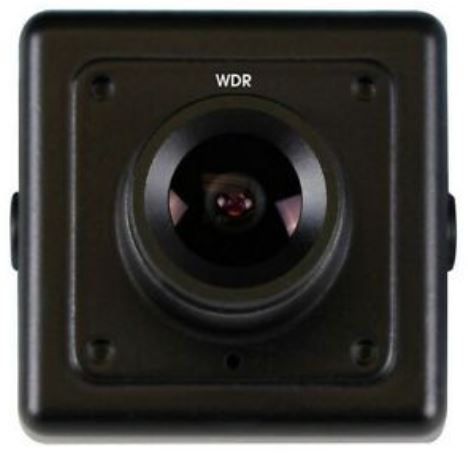

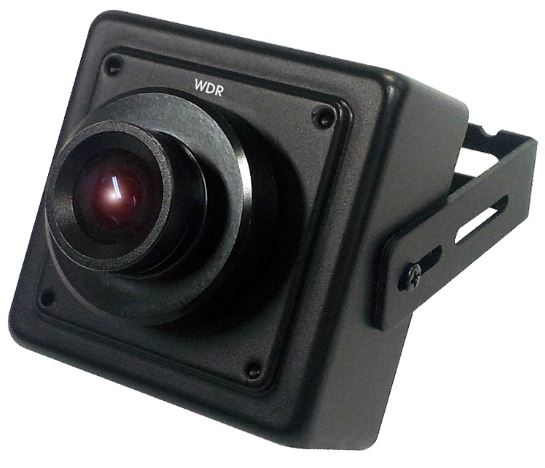

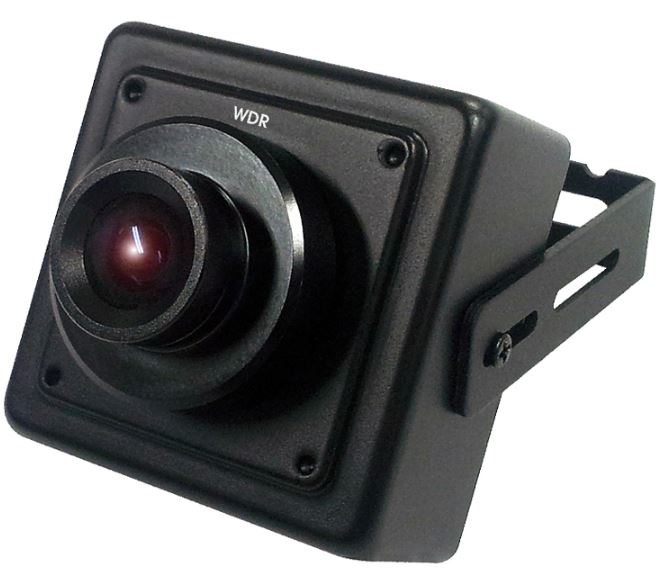

KPC-EW38NU/6MM 750 TVL Miniature Square Camera

KT&C
SKU: KPC-EW38NU
  • 1/3” 960H SONY Double Scan Super HAD CCD ll
  • 750TVL Horizontal Resolution
  • Board: 3.6, 4.3, 6, 8 mm Lens
    Pinhole: 3.7 (P1), 3.7 (P3), 4.3 mm (P4)
  • Fixed Board or Pinhole Lens
  • Digital Day & Night
  • Size: 1.5 x 1.5 inch (38 x 38 mm)
  • Min. Illumination of 0.1Lux (30 IRE@F2.0, AGC: 36dB), 0.000001 Lux (DSS: x256)
  • 3D DNR / BLC / WDR / OSD
  • DC 12V Power

The KT&C USA EW38NU is a miniature camera with a fantastic 750TVL analog resolution and a wide angle 6mm lens. Additional features for this miniature security camera include a 3X digital zoom, WDR functionality, a built-in OSD, and it uses 12VDC power.

Furthermore the EW38NU has a number of different lens options (see below) that allow for this semi covert camera to be used in a variety of different surveillance system applications. So if you need a quality miniature camera with a number of great features, including the ability to be used in covert surveillance; then take a good look at the EW38NU from KT&C USA.


KPC-EW38NUB: 3.6mm Board Lens
KPC-EW38NUP1: 3.7mm Conical Pinhole Lens
KPC-EW38NUP3: 3.7mm Flat Pinhole Lens
KPC-EW38NUP4: 4.3mm Super Cone Pinhole Lens

KPC-EW38NUCM: CM Lens Mount with Adapter for C/CS Lens

    • 61% less
    Market price:$452.00 save $276.00
  • $176.00

OR
Signal SystemNTSC
Image Sensor1/3” 960H SONY Double Scan Super HAD CCD ll
Scanning System2:1 Interlace
Horizontal Resolution750TV Lines
Scanning Frequency (H)15.734 KHz
Scanning Frequency (V)59.94 Hz
Total Pixels (H x V)1028 x 508
Effective Pixels (H x V)976 x 494
SynchronizationInternal
LensBoard: 3.6, 4.3, 6, 8 mm Lens
Pinhole: 3.7 (P1), 3.7 (P3), 4.3 mm (P4) Lens
Lens TypeFixed Board or Pinhole Lens
S/NMore than 50 dB (AGC: Off)
Gammar = 0.45
Min. Illumination0.1 Lux (30 IRE@F2.0, AGC: 36dB), 0.000001 Lux (DSS: x256)
Shutter Speed1/60 ~ 1/100,000 sec
Day & NightDigital Day & Night
Day & Night FunctionAuto, Color, B/W
Video Output Level1Vp-p Composite (75 Ω)
On-Screen Display (OSD)Built-in (Joystick)
BLCOn / Off (Level adjustment, Area selection)
DNR3D DNR
White BalanceATW, Push, User1, User2, Anti CR, Manual, Push-lock
Privacy Masking15 Zones (Area adjustment)
MirrorImage reverse (Normal/Flip)
Motion Detection4 Zones (Level adjustable, Area adjustment)
WDROn / Off (Level adjustable)
Digital Zoom Ratio3x
Digital Slow ShutterOff, 2 ~ 256 Field
Other FunctionBrightness, Contrast, Sharpness, HUE, Gain
Language OptionEnglish, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
Operating Temperature14 °F ~ 122 °F (-10 °C ~ 50 °C)
Storage Temperature-4 °F ~ 140 °F  (-20 °C ~ 60 °C)
HumidityLess than 80% RH
Power SupplyDC 12V (±10%) Max. 140mA
External ControlRS-485
Dimension1.5 x 1.5 inch (38 x 38 mm)
Weight0.2 lbs (80 g)







KPC-EW38NU.pdf

KPC-EW38NU_SPEC_SHEET.pdf
