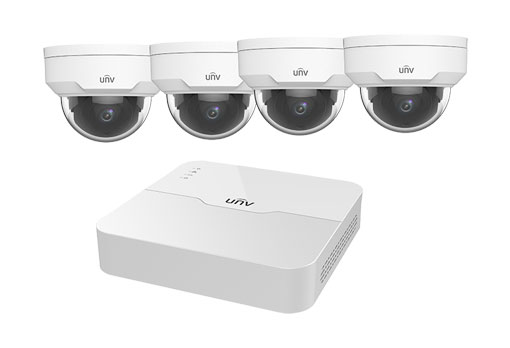

KIT/301-04LB-P4/4*322LR3-VSPF28-D


Please login or register to see price
Availability: In Stock
SKU: WEC/301-04LB-P4/4*322LR3-VSPF28-
Product #: 102644
Manufacturer:

NVR301-04LB-P4

 Support Ultra 265/H.265/H.264 video formats

 4-channel input

 Plug & Play with 4 independent PoE network interfaces

 Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

 Support 1-ch HDMI, 1-ch VGA

 HDMI and VGA simultaneous output

 Up to 2MP resolution recording

 1 SATA HDD, up to 10 TB

 Support cloud upgrade

IPC322LR3-VSPF28-D

 Day/night functionality

 Smart IR, up to 30 m (98 ft) IR distance

 2D/3D DNR (Digital Noise Reduction)

 Ultra 265,H.265, H.264, MJPEG

 ROI (Region of Interest)

 ONVIF Conformance

 Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)

 Wide voltage range of ±25%

 IK10 vandal resistant

 IP67

  • ModelNVR301-04LB-P4
    Video/Audio Input
    IP Video Input4-ch
    Network
    Incoming Bandwidth40Mbps
    Outgoing Bandwidth40Mbps
    Remote Users128
    ProtocolsP2P, UPnP, NTP, DHCP, PPPoE,
    Video/Audio Output
    HDMI/VGA OutputHDMI:
    1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
    VGA:
    1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
    Recording Resolution1080p/960p/720p/D1/2CIF/CIF
    Synchronous Playback4-ch
    Corridor Mode Screen3/4
    Decoding
    Decoding formatUltra 265/H.265/H.264
    Liveview/
    Playback
    1080p/960p/720p/D1/2CIF/CIF
    Capability4 x 1080p@20, 4 x 720p@30
    Hard Disk
    SATA1 SATA interface
    Capacityup to 10TB for each disk
    External Interface
    Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB InterfaceRear panel:2 x USB2.0
    PoE
    Interface4 independent 100 Mbps PoE network interfaces
    Max PowerMax 30W for single port
    Supported StandardIEEE 802.3at, IEEE 802.3af
    General
    Power Supply48V~52V DC
    Power Consumption: ≤5 W( without HDD )
    Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
    Dimensions(W×D×H)205mm × 205mm × 42mm(8.1" × 8.1" × 1.7")
    Weight ( without HDD )0.64kg ( 1.41lb )
    ModelIPC322LR3-VSPF28-D
    Sensor1/2.7", progressive scan, 2.0 megapixel, CMOS
    Lens2.8mm@F2.0
    DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
    2.8mm46.718.79.34.7
    Angle of View (H)112.7°
    Angle of View (V)60.1°
    Angle of View (O)146.5°
    Adjustment anglePan:   0°~360°Tilt:   0°~75°
    ShutterAuto/Manual, 1/6~1/100000 s
    Minimum IlluminationColour: 0.02Lux ( F2.0, AGC ON)
    0Lux with IR
    Day/NightIR-cut filter with auto switch (ICR)
    Digital noise reduction2D/3D DNR
    S/N>52dB
    IR RangeUp to 30m (98 ft) IR range
    WDRDWDR
    Video
    Video CompressionUltra 265,H.265,H.264,MJPEG
    H.264 code profileBaseline profile, Main Profile, High Profile
    Frame RateMain Stream:1080P (1920*1080): Max. 25 fps;
    Sub Stream:720P (1280*720): Max. 25 fps;
    Third Stream: CIF (352*288): Max. 25fps
    OSDUp to 4 OSDs
    Privacy MaskUp to 8 areas
    ROIUp to 2 areas
    Motion DetectionUp to 4 areas
    Network
    ProtocolsIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
    Compatible IntegrationONVIF(Profile S), API
    Interface
    Network10/100M Base-TX Ethernet
    General
    PowerDC12V±25%, PoE (IEEE802.3 af)
    Power consumption: Max.5.5w
    Dimensions (Ø x H)Φ109 x 81mm (Ø4.3” x 3.2”)
    Weight0.45kg (0.99lb)
    Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
    Ingress ProtectionIP67
    Vandal ResistantIK10
  • Datasheet
