IPC262ER9-X10DU - UNV Uniview - 2 MP Bullet IP Camera True 4.7mm - 47mm (10x) Motorized Zoom Lens


Please login or register to see price
Availability: In Stock
Ships Same Day
SKU: IPC262ER9-X10DU
Product #: 91198
Manufacturer:
Camera Type: Bullet
Camera Resolution: 2 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 10X
Optical Zoom: Motorized Zoom



Uniview: The Rising Star of the CCTV World












How to Program Your Uniview EZView App on Your Mobile Device

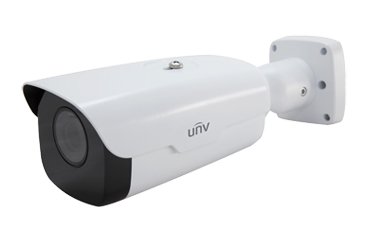

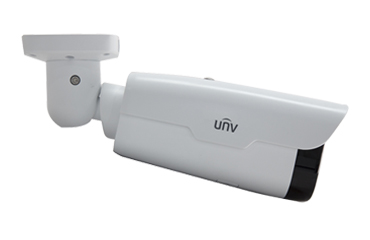

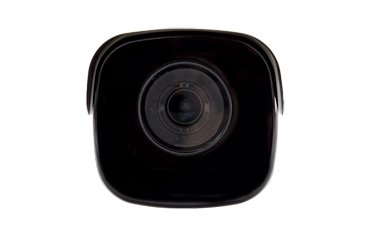

This Uniview 2MP WDR Network IR Bullet Camera is a smart functioning security camera. It is 2 megapixels and with the motorized 4.7mm - 47mm (10x) Motorized Zoom Lens the camera allows you to maintain perfect vision in total darkness in an area as wide and big up to 100 m (328 ft). This bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP67 rating. It also has "Smart IR" which will adjust based on the situation to give you an optimal image.


  • A 3 year warranty for our customers is what makes this wall and/or pendant installation a must buy. Made of sturdy aluminum alloy material, this ensures that your electrical circuits and wiring are safe from weather conditions, wear n tear or even vandalism.

  • Any customer can get his delivery within a couple of days from order plus also easily set it up as it comes equipped with all necessary accessories for set up.

Log-in or REGISTER HERE to view EXCLUSIVE pricing.










Product Features

Optics

  • Starlight illumination
  • 10X Optical Zoom & Auto Focus
  • Smart IR, up to up to 100m (328 ft) IR distance
  • Up to 120 dB WDR(Wide Dynamic )
  • Auto day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance

Compression

  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple Streams
  • ROI (Region of Interest)
  • 9:16 corridor format
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IP67

Digital Defog


Uniview puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.


Long-Range POE - 928 ft.


Even though the camera’s location is hundreds of feet away from NVR, you can still easily connect cameras directly to NVR for both power supply and video streaming because UNV NVR supports up to 928 Ft long rang PoE. It helps to make your store under protection 24/7 with only a few steps during installation.



Cloud Upgrade


If your camera is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu on your Uniview NVR by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the camera and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the camera will automatically reboot.



Wide Temperature Range


Uniview' s cameras can function well under -40 ℃ ~ 70 ℃ , adapting to all harsh environment condition.





Trip Wire


Create a Virtual Tripwire similar to those you see in Hollywood films. However, these criminals cannot dodge the power of Uniview!

You can also set the direction of which the Trip Wire will be activated
For example, if people are only supposed to be leaving one direction and someone decides to go back you will be notified since they are going the wrong direction.



UNV Customer System Kit Builder


Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

UNV IP System Builder
Click Here

SPECIFICATIONS

Camera

Sensor

1/2.8", progressive scan, 2 megapixel, CMOS

Lens

4.7~47mm@F1.6; P-Iris, AF automatic focusing and motorized zoom lens

Angle of View (H)

65°(wide)~ 9°(tele)

Shutter

Auto/Manual, 1/10~1/100,000s

Minimum Illumination

Colour: 0.001 Lux (F1.6, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Smart-IR ,up to 100m (328ft) IR range

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 2MP (1920×1080): Max. 30 fps;

Sub Stream: 2MP (1920×1080): Max. 30 fps;

Third Stream:D1(720×576) : Max. 30fps

9:16 Corridor Mode

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Smart

Behavior Detection

Intrusion, cross line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, Up to 128 GB

·         Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S, Profile G), API

Interface

Audio I/O

Audio cable

1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

1 Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

2 / 1

Serial Port

1 RS485

Network

10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power

DC12V±25%, AC24V±25% ,PoE (IEEE802.3 at)

Power consumption: 13.7W

Dimensions (L × W × H)

305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”)

Weight

1.65 kg (3.6 lb)

Working Environment

-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

Reset Button

Supported

Datasheet of IPC252ERA-X22DUG

Camera Installation Guide-V1.00

Network Cameras User Manual-V2.03
