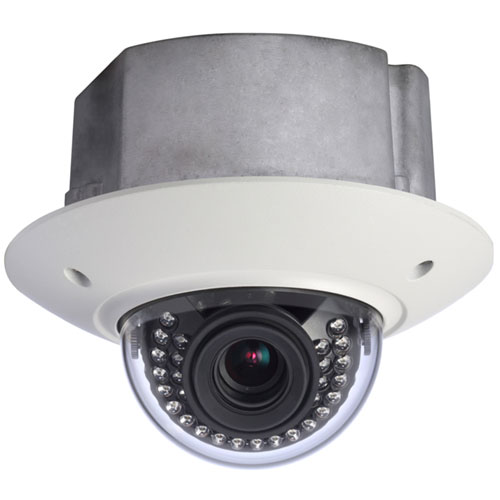

iMaxCamPro Hi-Res 3MP 30FPS at 1080P IP Dome Camera with Varifocal Lens (2.7-12mm)


$462.00


Availability: In Stock
Ships Same Day
List Price: $589.00
SKU: WEC-IP21-VF
Product #: 86081
Manufacturer:

Remote Login Support:
Quantity

3 Megapixel Full HD Network IR Dome Camera with 2.7 - 12mm varifocal lens

Features:

  • 1/3" 3 Megapixel progressive scan Aptina CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 20fps @ 3M(2052 × 1536) & 25/30fps @ 1080P(1920 × 1080)
  • DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iMaxCam
  • 2.7 - 12mm varifocal lens
  • Built-in 1/1 alarm in/out
  • Max. IR LEDs length 20m / 65 ft
  • Micro SD memory, IP66, IK10, PoE

Specifications
Model WEC-IP21-VF
Image Sensor 1/3" 3 Megapixel Aptina CMOS
Effective Pixels 2048 (H) x 1536 (V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual; 1/3 - 10,000s
Min. Illumination 0.1 Lux/F1.2 (Color); 0.01 Lux/F1.2 (B/W); 0 Lux/F1.2 (IR On)
S/N Ratio > 50dB
Video Output 1 port
Camera Features
Max IR LED Distance 65 ft. / 20m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto / Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7 - 12mm
Max Aperture F1.4
Focus Control Manual
Angle of View Horizontal: 82° - 25°
Lens Type Manual /Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Image Resolution 3M (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1(704 × 576) / CIF(352 × 288)
Frame Rate Main Stream 3MP @ 20fps; 1080p / 1.3MP / 720p @ 30fps
Extra Stream D1/CIF (1 ~ 25/30fps)
Bit Rate H.264: 32Kbps ~ 8192Kbps
Audio
Compression G.711a / G.711u/ PCM
Interface 1/1 channel In/Out
Network
Network Interface RJ-45 (10/100M)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF Compliance ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V/AC24V, PoE(802.3af)
Power Consumption Max 5W
Working Environment -4°F ~ +140°F (-20°C ~ +60°C), < 95%RH
Ingress Protection IP66
Vandal Resistance IK10

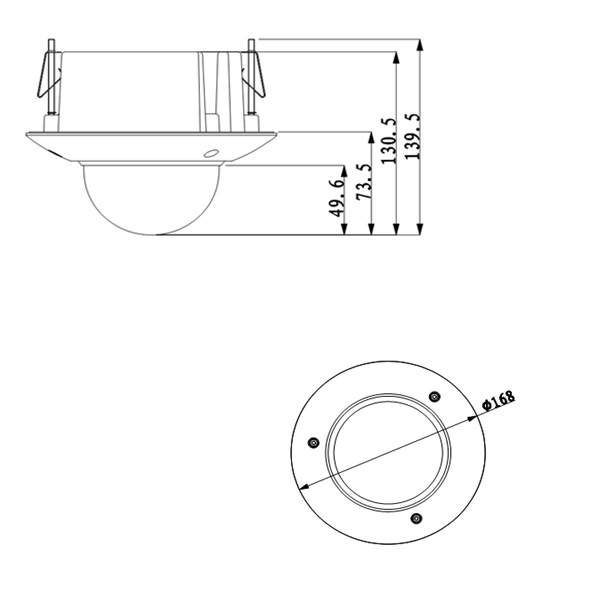

Dimensions ∅5.94"(151mm) x 4.69" (119mm)
Weight 2.76 lbs

Average Customer Rating:


1 Most useful customer reviews
Davis Lee
Dec 18, 2015
This customer purchased the item at our site.
The resolution of this camera is better than I had ever thought. With 3 megapixels it garners a resolution of 2048 × 1536 pixels. But that is not just it! There are variations that you can choose from if you are taking a picture. You can even go down to CIF mode. Overall I love everything about this camera for every feature and characteristic is in sync with each other making the performance smooth and impressive. Our company’s head office had put a limit of $8000 to fix security cameras in all areas and it barely cost us $3000 included with installation system labor.

Greatly impressed with the hardware of this security cam as well as the software, I loved working with this website and getting to experience their services. I recommend this website to all big firms and companies who need HIGH QUALITY security cams at a tight budget. The customer support is very helpful and will assist you in every step of the way.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
