iMaxCamPro 30X Optical Zoom 12X Digital Zoom IP PTZ Camera


$1,596.00


Availability: In Stock
Ships Same Day
List Price: $1,690.00
SKU: WEC-PTZ30HNZ
Product #: 85325
Manufacturer: iMaxCamPro
UPC: 683405210450

Remote Login Support:
Quantity

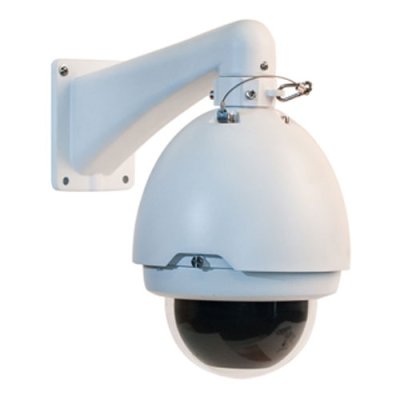

This IP pan/tilt/zoom surveillance camera records high definition video at 30 frames per second with a 1080p resolution. It has a 360 degree continuous pan range and 30x optical zoom. The security camera will continue record clear images even in very low light. Users are able to monitor and control pan/tilt/zoom functions remotely. Power is supplies by 24V AC.



  • Sony 2MP Exmor CMOS Sensor· 30x Optical Zoom
  • Web Interface
  • ONVIF
  • Ships standard with included wall mount.
  • Pole, Pendant, Ceiling, and Corner Mounts Available (Optional)

WEC-PTZ30HNZ

Network/IP-Pan Tilt Zoom Camera

Camera Specifications



Sensor Type

2MP Sony Exmor CMOS

Module Type

30X Optical Zoom Module

Effective Pixels

2 Megapixels

Digital Zoom

16x

Minimum Subject Distance

10mm-1000mm

Minimum Illumination

.8 Lux Color 0.02 Lux B&W

Electronic Shutter

1/1 - 1/30,000/s

Zoom

30x Optical, 16x Digital

White Balance

Auto / Manual

Day/Night

Auto (ICR), Color, B&W — 0.05 lux/Color, 0.005 lux/B&W

S/N Ratio

>50dB

Privacy Masking

On/Off

Analog Video Output

BNC (1.0Vp-p/75Ω) NTSC

Video Compression

H.264 / MJPEG4

Image Resolution

1080p (1920/1080)720p ( 1280/720)D1 (704x480)

Encoding Speed

Mainstream: NTSC 1080p/720p 1-30FPS

Bit Rate

32Kbps - 8Mbps

Audio Compression

G.711a (32Kbps) / AMR (10.2Kbps)

Speed Dome



Presets

255

Auto Tour

8

Auto Pattern

5

Auto Scan

5

Pan Speed

0.1° - 300° / second

Pan Range

0° - 360° continuous

Tilt Speed

0° - 150° / second

Tilt Range

2° - 90° — Auto rotates to pan 180°

Alarm I/O

7/2

Preset Speed

Horizontal 400° / second, Vertical 300° / second

3D Positioning

Yes

Idle Motion

Activate preset/scan/tour/pattern

Electrical



Power Requirements

AC 24V/3A

Power Consumption

12W

Environmental & Physical



Operating Temperature

-40° F to 140° F

Operating Humidity

0-90% ( No condensation )

PTZ Weight

10lbs

Wall Mount Weight

3lbs

Network



Ethernet

RJ-45 (10/100Base-T)

Network Functions

TCP/IP, HTTP, DDNS, DHCP, FTP , DNS, IP Filter, PPPoE, NTP, SMTP, Alarm Server

Max Remote Users

20 Simultaneous Users

Processor

TI DaVinci Series DSP

Operating System

Imbedded LINUX

Resource

Simultaneous remote monitoring, remote operation, and local recording

Remote Operation

Monitor, PTZ control, Voice Intercom, Sys-tem setting, Playback, File download, Log Information, Maintenance and Upgrade

Local Recording

SD/SDHC, Max 32GB

User Interface

Web, CMS (PSS) iMaxCam, NVR

Average Customer Rating:


1 Most useful customer reviews
Davis Lee
Apr 10, 2015
This customer purchased the item at our site.
My office’s security cameras all failed altogether and it was a great loss for our company as we had just purchased them a few weeks ago. Severely disappointed, I set out to find yet another set of security cameras and luckily found these. They were quickly shipped to us, which saved us a lot of trouble and stress as we needed new ones very quickly. They cost quite a wad but after installing them with the help of a service they proved to be of great quality for their price. They also used up a lesser amount of electricity compared to the crap ones we purchased previously.

They capture perfect footage with their pan/tilt/zoom feature and the 30x optical zoom is just perfect. You can fix this camera on the beginning of a long hallway and it can capture high quality footage till the very end. We had not trouble buying extra mounts for all of them were available for us and we easily could make decision on where to fix these cameras.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
