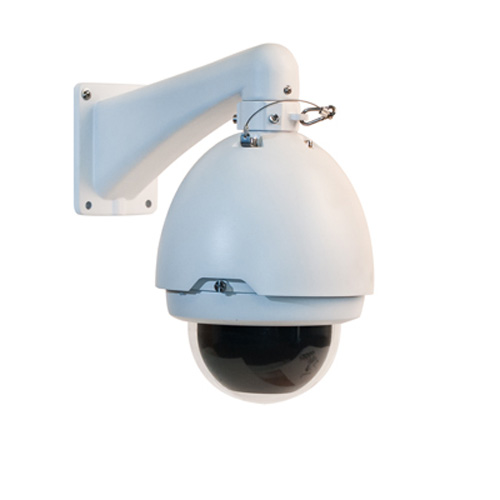

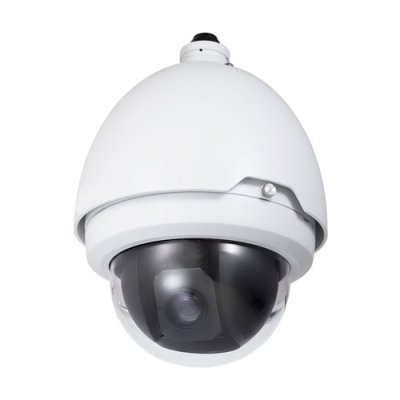

IMAX-PTZ-30X 600TVL 30x Zoom Module High-Speed PTZ With Intelligent Smart Zoom


$1,078.00


Availability: In Stock
Ships Same Day
List Price: $2,000.00
SKU: IMAX-PTZ-30X
Product #: 75070
Manufacturer: iMaxCamPro
UPC: 881314693481

Remote Login Support:
Quantity

This easy to install pan/tilt/zoom surveillance camera records high resolution 700TVL footage even in low light. It has 30x smart zoom and 255 preset positions. The security camera is approved for indoor or outdoor use and also comes equipped with Wide Dynamic Range, auto focus and infrared cut filter.



Product Features

  • Powerful 30x optical zoom
  • High resolution @ 700TVL/600TVL
  • DWDR, Day/Night (ICR), DNR (2D & 3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 400°/s pan speed, 360° continuous pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IP67, easy-installation



SPECIFICATIONS


Model IMAX-PTZ-30X
Image Sensor 1/4" Super HAD CCD II
Effective Pixels 752(H) × 582(V) / 768 (H) × 494(V)
Horizontal Resolution Color: 600TVL; B/W: 650TVL
Scanning System Interlaced
Electronic Shutter Speed 1/1~1/100,000s
Min. Illumination Color: 0.01Lux/F1.6, B/W: 0.001Lux/F1.6
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p,75Ω), PAL/NTSC
Camera Features
Max IR LEDs Length 100m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 3.4mm~102mm(30x Optical zoom)
Max. Apeture F1.6 ~ F4.5
Focus Control Auto/Manual
Angle of View Horizontal: 57.58° ~ 2.3°
Close Focus Distance 10mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300°/s; Tilt: 0.1° ~250°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Preset 80(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Auxiliary Interface
RS485 1 port
Alarm 7/2 channel In/Out
General
Power Supply AC 24V/3.0A (±10%), DC12V Optional
Power Consumption 15W, 25W (Heater on)
Working Environment -40°F ~ +140°F (-40°C ~ +60°C), Less than 90%RH
Protection Level IP67, IK10 Optional
Dimensions Φ8.74" (222mm) x 12.68" (322mm)
Weight 11.02 lbs

Average Customer Rating:


1 Most useful customer reviews
Lou
Apr 16, 2014
This customer purchased the item at our site.
Not very effective in darkness, but the rest of the time this camera can 'patrol' its area or be directed remotely to view something in-particular. I bought two but they didn't jibe with my Q-See DVR PTZ control system, and getting just one to function took several days of tinkering, but I finally got the one to do as told and I'm satisfied with that. But Again it could be my DVR controller system not the camera. The image quality is very good
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.
