8 HD 1080p IR Bullet HD-SDI DVR Kit for Business Commercial Grade


$3,951.60


Availability: In Stock
Ships Same Day
List Price: $6,699.00
SKU: SKU82640
Product #: 82641
Manufacturer:
Camera Type: Bullet
Shipping Lead Time: Ships Same Day

Hard Drive #1:
Hard Drive #2:
Hard Drive #3:
Hard Drive #4:
Monitor:
Cables:
Remote Login Support:
Quantity

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 8 HD 1080p IR Bullet HD-SDI DVR Kit for Business Commercial Grade.This kit has everything you need to start your surveillance system. It comes with 8 vandal resistant bullet security cameras that can be used indoor and outdoor. They record up to 30 frames per second with a 1080p resolution. The kit also features an 8 channel DVR and 8 60 foot Siamese cable. Footage recorded with this system can be monitored remotely from a smart phone or computer by downloading the free software. The product key featured by 8 Channel HD-SDI DVR: Record 8 individual cameras directly onto the DVR. (8) 2MP HD-SDI Bullet Cameras: 1080P resolution video, day or night, in real-time 30fps. Real-Time HD 1080P Output Resolution: Enjoy next generation 1080P High Definition output that provides more vivid detail from your recordings. HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables. Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smart phone or tablet. PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC. Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to FTP servers on your network, in the case that your main HDD should fail. The DVR is featured by Dual Core Processor. 8 Channel HD-SDI Video 1080p Real time Live View. HDMI, VGA & TV Simultaneous Video Output. Setup Wizard for the initial Configuration of the DVR. Search & Playback Functionality & Interface. 8 SATA up to 32TB, 1 eSATA up to 16TB, 4 USB 2.0. HDD Groups allow you to determine which channel records to Each Specified HDD. Smart Video Detect (Motion Detect, Camera Blank & Video Loss). On-Screen Keyboard. Built In Web Server, CMS (PSS) & iMaxCam Mobile App (Smart Phone). MAC Surveillance Software available - FREE DOWNLOAD. 1 Year Warranty. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

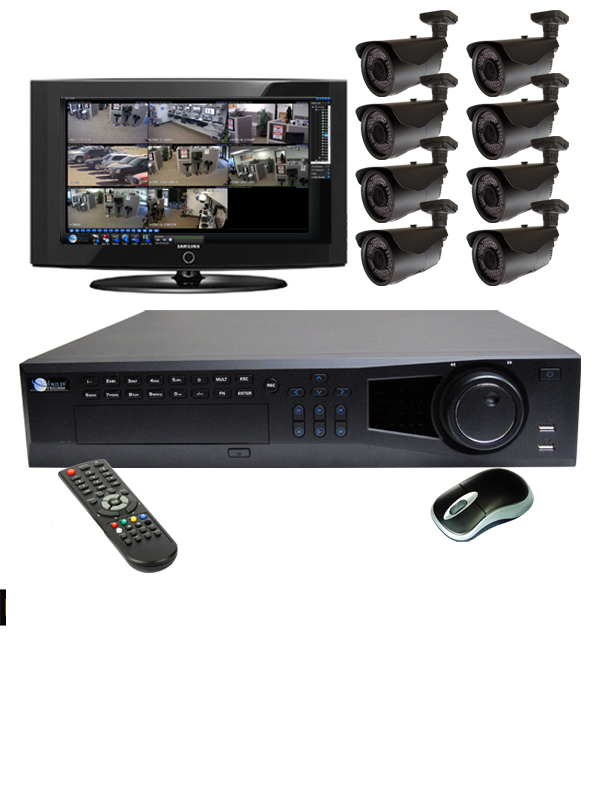

This kit has everything you need to start your surveillance system. It comes with 8 vandal resistant bullet security cameras that can be used indoor and outdoor. They record up to 30 frames per second with a 1080p resolution. The kit also features an 8 channel DVR and 8 60 foot Siamese cable. Footage recorded with this system can be monitored remotely from a smart phone or computer by downloading the free software.



What’s Included:

· (1) 8 Channel HD-SDI DVR Recorder
· (8) Vandal Resistant Bullet Cameras
· (8) 60' Siamese Cable
· Free mobile apps and monitoring software
· Free lifetime technical support

Key Features:

· 8 Channel HD-SDI DVR: Record 8 individual cameras directly onto the DVR.

· (8) 2MP HD-SDI Bullet Cameras: 1080P resolution video, day or night, in real-time 30fps.

· Real-Time HD 1080P Output Resolution: Enjoy next generation 1080P High Definition output that provides more vivid detail from your recordings.

· HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables.

· Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smartphone or tablet.

· PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC.

· Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to FTP servers on your network, in the case that your main HDD should fail.




iMaxCam HD-SDI DVR Features:

· Dual Core Processor
· 8 Channel HD-SDI Video 1080p Real time Live View
· HDMI, VGA & TV Simultaneous Video Output
· Setup Wizard for the initial Configuration of the DVR
· Search & Playback Functionality & Interface
· 8 SATA up to 32TB, 1 eSATA up to 16TB, 4 USB 2.0
· HDD Groups allow you to determine which channel records to Each Specified HDD
· Smart Video Detect (Motion Detect, Camera Blank & Video Loss)
· On-Screen Keyboard
· Built In Web Server, CMS (PSS) & iMaxCam Mobile App (Smart Phone)
· MAC Surveillance Software available - FREE DOWNLOAD
· 1 Year Warranty


Additional DVR Features:

Plug and Play right out the Box: The simple to use instructions and setup seamlessly allow you to turn on your DVR recorder, plug in your cameras and the system is ready to record!

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
h.264 Compression


Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device.
Free Remote Access Mobile Apps for Android, iPhone and tablets



Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.
Free CMS Software PSS


Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.
Motion Detection or Around the Clock Recording


E-map Function Support:
The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.
Emap function for expansive properties like a college campus


Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
Push Notification or E-Mail Alerts are easy to configure

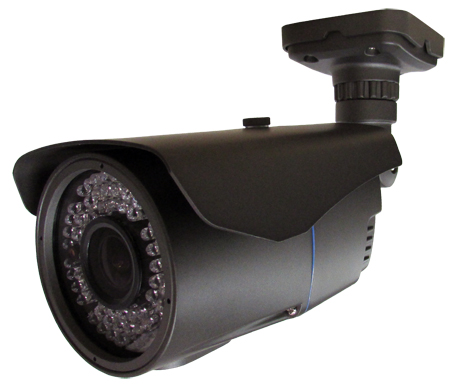

BL1080P HD-SDI Bullet Camera Features:





Specifications
Image Sensor 1/3" 2.1 Megapixel CMOS
Scanning System Progressive Scan
S/N Ratio More than 50dB (AGC Off)
Video Output Level HD-SDI / 1.0 Vp-p (75©, Composite)
Video Output Mode 1080P (1920 X 1080)
Lens Vari-focal 2.8mm - 12mm Lens
Min. Illumination 1.0 Lux (Color), .05 Lux (BW)
IR Distance 131' (with 42 pcs LED)
OSD Built-In
Electronic Shutter Auto/FLK/1/25,30 sec ~ 1/50000 sec
AGC Low / Middle / High
2D / 3D-NR 2DNR / 3DNR / SMART NR
Digital Zoom / PIP On / Off (X2 ~ X64)
Digital Effect Freeze / Mirror / D-Zoom / NEG, Image
Voltage / Current DC12V+10% / 210mA (650mA with IR on)
Operating Temperature 14° ~ +122° F
Dimensions (in.) 11.6(W) X 4.7(H) X 4(D)
Weight 4 lbs

Additional Camera Features:

NOTE: HD-SDI cameras require a HD-SDI DVR to view or record. They are not compatible with traditional analog DVRs or DVR cards. HD-SDI delivers the crisp high-definition image you want from a megapixel camera, but with the latency-free image you expect from an analog camera. This camera runs on standard BNC cables with 12v DC power, however it must be connected to a HD-SDI DVR to record footage.

Megapixel quality means catching the small details


Vandal Proof: The vandal proof housing built around these cameras deliver that added satisfaction that they are built to last in any life situation.
Vandal resistant Dome camera


Weather Resistant Indoor/Outdoor Dome Camera: The camera enclosure is built to withstand even the harshest of conditions including ultra heavy rain, snow, and extreme hot weather conditions.
IP66 rated for indoor or outdoor use

Custom System Design:
Worldeyecam offers free consultation and system design, so if the bundled kits don't have what you need don't hesitate to call us! 1-888-211-2288 Monday through Friday 8AM to 5PM Pacific time.
Free System Design and Consultation

Average Customer Rating:


1 Most useful customer reviews
Joe
Apr 9, 2014
This customer purchased the item at our site.
Setting up internet connection was easy for me, but I'm an electrical engineer and software programmer. There are many ways you can view the live video and recordings without being anywhere near the DVR. Using the browser with supplied plug-in gives nearly all the same capability as using mouse/remote on the DVR.... but you can control from anywhere. Sometimes, the video is NOT streamed in HD to preserve your network bandwidth - but you can control that by clicking on "Main stream" to get the full HD.

IMaxCam Lite & Imaxcampro I downloaded copies of these and side-loaded the apps and they work just fine with my phone and tablet. (Both Google Nexus devices)

My confidence in what this system can catch using motion detection continues to improve.... yesterday, one camera caught a small rabbit crossing my driveway at 4am (total darkness) from about 30ft away!

Initially, the colors were a bit washed out - but you can control that using the configuration software.
Loading...Was the above review useful to you? Yes (1) / No (0)

Mobile App


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
