How To Record Video (Selected Cameras) By Input Trigger

How do I record video (selected cameras) by input trigger?
Back to GeoVision Support | Support Home

To start round-the-clock recording on selected cameras by input(s)
Note: all cameras will record by motion when input trigger is off.
Note: a maintained switch is required. For example, light switch.

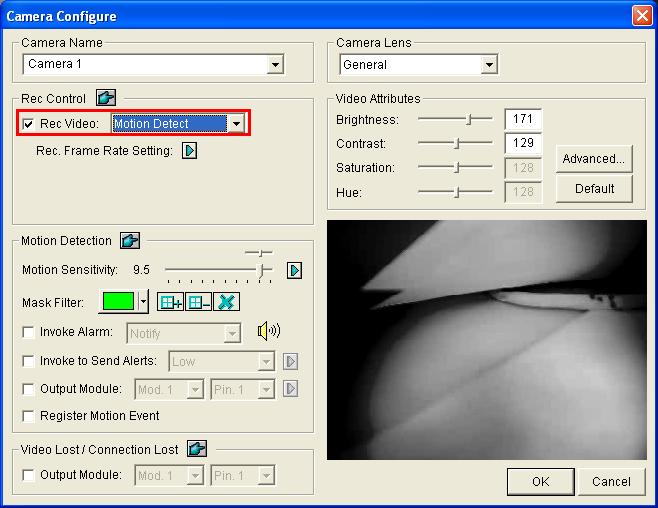

  • Click on Configure button, System Configure, Camera Configure.

  • Select Motion Detection and apply the same setting on all cameras.

  • Click OK.

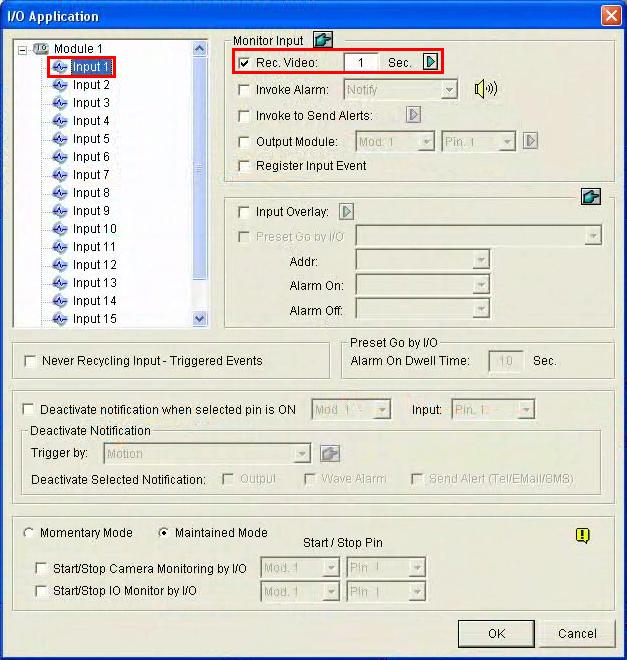

  • Click on Configure, Accessories, I/O Device, I/O Application Setting.

  • Select the Input number, then check Rec. Videoand enter 1 sec.

  • Click on the green arrow to the right and check on the applicable cameras to record round-the-clock when input is triggered.

  • Click OK.

  • Click on Monitoring button, then Start All Monitoring.
