How To Record Video (ALL cameras) By Input Trigger

How do I record video (ALL cameras) by input trigger?
Back to GeoVision Support | Support Home

To start/stop recording on all cameras by input(s)
Note: no video will be recorded when input trigger is off.

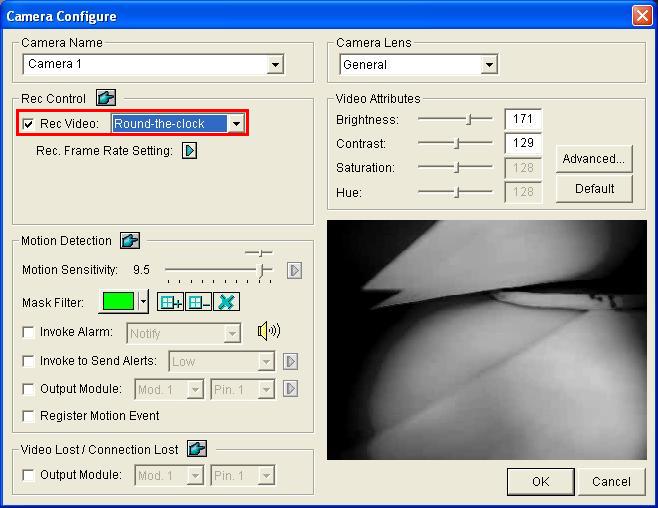

  • Click on Configure button, System Configure, Camera Configure.

  • To record base on motion when input is triggered, select Motion Detection . Or to record continuously when input is triggered, select Round-the-clock instead.

  • Apply the same setting on all cameras.

  • Click OK.

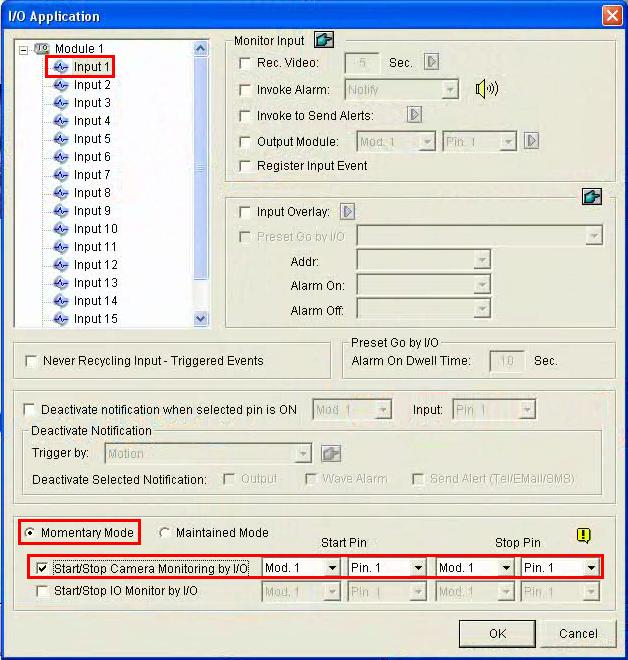

  • Click on Configure, Accessories, I/O Device, I/O Application Setting.

  • Select the Input number, then check Momentary Mode and designate input(s) to Start and Stop Monitoring.

  • Click OK.

  • Click on Monitoring button, then start I/O Monitoring.
