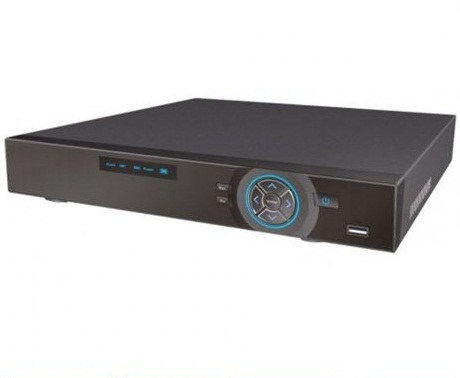

HD-CVI DVR - 4ch Tribrid, 720p/1080p, 1 SATA up to 4TB of Storage


$129.00


Availability: In Stock
List Price: $215.00
SKU: HCVR5104H-S3
Product #: 87116
Manufacturer:

Quantity

HVR501H-04-S3

  • 4 Channels, Analog/HD-CVi
  • 1 SATA port, up to 4TB
  • Supports 2 to 6 channels for IP
  • H.264/G.711 Video/Audio Compression
  • Record rate of 1080p @ 15fps
  • Record rate of 720p @ 30fps
  • OSD Menu

There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.



Specifications


System


  • Main ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX

Video

  • Input4 channel, BNC
  • Standard AnalogNTSC/PAL
  • HDCVI1080P/720P HDCVI Camera
  • IPSupport 2ch 1080P/720P IP Camera
Audio

  • Input1 channel, RCA
  • Output1 channel, RCA
  • Two-way TalkReuse audio input/output channel 1
Display

  • Interface1 HDMI, 1 VGA
  • Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split1/4
  • Privacy Masking4 rectangular zones (each camera)
  • OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

  • Video/Audio CompressionH.264/G.711
  • Record RateMain Stream:1080P(1~15fps)/ 720P/960H/D1 (1~25/30fps)
  • Extra StreamCIF/QCIF(1~25/30fps)
  • Bit Rate96~4096Kb/s
  • Record ModeManual, Schedule(Regular(Continuous), MD), Stop
  • Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm

  • Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,
  • Buzzer & Screen tips
  • Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup

  • Sync Playback1/4
  • Search ModeTime/Date, MD & Exact search (accurate to second)
  • Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup ModeUSB Device/Internal SATA burner/Network
Network

  • EthernetRJ-45 port (10/100M)
  • Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
  • Max. User Access128 users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
Storage

  • Internal HDD1 SATA port, up to 4TB
Auxiliary Interface

  • USB Interface2 ports(1 Rear), USB2.0
  • RS4851 port, For PTZ Control
General

  • Power SupplyDC12V/2A
  • Power Consumption10W(without HDD)
  • Working Environment-10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimension(W×D×H)Mini 1U, 325mm×255mm×55mm
  • Weight1.5KG(without HDD)
