H.264 Complete Video Security Camera System - Mobile Phone Support
SKU: WEC-23254CH.MR603BCAM-KIT
The Company offers a complete line of Safety and Security, CCTV, access products. The Model is H.264 Complete Video Security Camera System - Mobile Phone Support. The camera is featured by Night Vision Weather Proof Camera, 1/3" Sony Super HAD CCD, 480 TV Lines, 3.6mm Lens, 0 LUX, 24 IR, Max Range 65 feet, NTSC, DC 12V 1000mA. WECMR603HCAM. The DVR is featured by H.264 compression. Two USB Interface, USB2.0 for data backup, USB1.1 for mouse operation. 3.5" SATA HDD, Special file system for security.

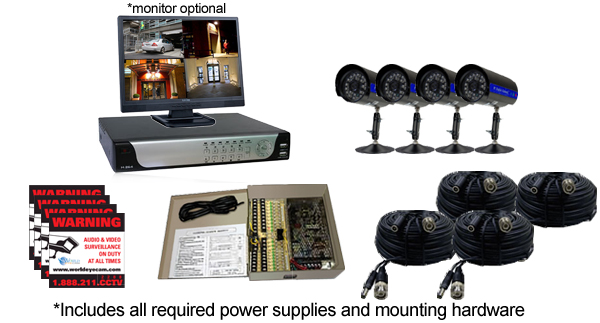

This 4 Channel Video Package Includes:
- (1) 4 Ch DVR with live internet and cell phone viewing
- (4) MR603BCAM Night Vision Weather Proof Camera, 1/3" Sony Super HAD CCD, 480 TV Lines
- (4) 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
- (4) 100' Video/Power Cables & Cable Connectors (Choice of Sizes)
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The Company offers a complete line of Safety and Security, CCTV, access products. The Model is H.264 Complete Video Security Camera System - Mobile Phone Support. The camera is featured by Night Vision Weather Proof Camera, 1/3" Sony Super HAD CCD, 480 TV Lines, 3.6mm Lens, 0 LUX, 24 IR, Max Range 65 feet, NTSC, DC 12V 1000mA. WECMR603HCAM. The DVR is featured by H.264 compression. Two USB Interface, USB2.0 for data backup, USB1.1 for mouse operation. 3.5" SATA HDD, Special file system for security. 16 bit color translucent user-friendly GUI, with notes for selected menu items. Optimized four channel simultaneously playback. Double level user management. Support live view, parameter setting and copy playback video via network. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications. 4 Channel H.264 Hexaplex Realtime Network DVR, VGA Output, Support Mobile Phone Surveillance. |
This 4 Channel Video Package Includes:
- (1) 4 Ch DVR with live internet and cell phone viewing.
- (4) MR603BCAM Night Vision Weather Proof Camera, 1/3" Sony Super HAD CCD, 480 TV Lines
- (4) 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
- (4) 100' Video/Power Cables & Cable Connectors (Choice of Sizes)
CAMERA DETAILS:
Night Vision Weather Proof Camera, 1/3" Sony Super HAD CCD, 480 TV Lines,
3.6mm Lens, 0 LUX, 24 IR, Max Range 65 feet, NTSC, DC 12V 1000mA.
WECMR603HCAM
SPECIFICATION
| Key Features |  1/3” Sony Super HAD Interline Transfer CCD 480 TV Line 3.6mm Fixed Lens 24 IR LED 0 LUX (IR On) 100 FT. IR Distance DC 12V, 500mA (min.)/Recommended: 1A | |
| Image Pick-up Device | 1/3” Sony Super HAD Interline Transfer CCD | |
| Effective Pixels | NTSC: 768 (H) X 494 (V) | |
| Signal System | NTSC | |
| Horizontal Resolution | 480 TV Lines | |
| Minimum Illumination | 0 LUX (30 Pieces IR LED On) | |
| S/N Ratio | More than 48 dB | |
| Electronic Shutter | 1/60~1/100,000 sec | |
| Lens | 3.6mm Fixed Lens | |
| GAMMA | 0.45 | |
| Video Output | 1.0 Vp-p, 75 Ohms, Negative | |
| Power Supply | DC 12V | |
| Power Consumption | Min Req: 500mA/ Recommended: 1A | |
| IR Distance | 65FT | |
| Camera Dimension | Ø 3.7" x 2.63" | |
| Camera Weight | 0.82 lbs | |
| Package Dimension | 4.25" x 7.35"x 4.00" | |
| Weight | 3.7 lbs | |
DVR DETAILS:
- H.264 compression
- Two USB Interface, USB2.0 for data backup, USB1.1 for mouse operation
- 3.5" SATA HDD
- Special file system for security
- 16 bit color translucent user-friendly GUI, with notes for selected menu items
- Optimized four channel simultaneously playback
- Double level user management
- Support live view, paramenter setting and copy playback video via network.
Specifications:
| Video System Video Compression Format Video Input Channel Video Output Channel Video Display Modes Video Display Frame Rate Resolution Display Resolution Recording Resolution Modes Recording Compression Recording Frame Rate Audio Input Audio Output Recording Quality Channel Playback Playback Search Mode Storage Backup Device Alarm Input Alarm Output Serial Connectors Network Connection Network Protocol Network Remote Network Remote Users System Power Remote Control Mouse Dimension (Package) Weight (Package) Dimension (DVR) Weight (DVR) | * NTSC/ PAL * H.264 * 4 BNC * 2 BNC Video Output, 1 VGA Output * Full Screen, Sequence, Split (1/4) * NTSC: 120fps; PAL: 100fps/ Mode: Auto * Up to NTSC: 720 x 480/ PAL: 720 x 576 * NTSC: 720 x 240/ 360 x 240 and PAL: 720 x 288/ 360 x 288 * Continuous, Motion Detection, Sensor Triggered, Time Schedule * H.264 * NTSC: 120fps; PAL: 100fps * 4 * 1 * Best, Fine, Normal * Up To 4 Channels * Date/ Time, Log, Archived Files * 1 SATA HDD. Max. up to 500GB (not included) * USB 2.0: Thumb Drive * 4 * 1 * USB 2.0 x 2 (Mouse and Thumb Drive) and RS485 x 1 * 10/100 Ethernet (RJ-45) * TCP/IP, Static IP, DHCP, PPPOE, DDNS * Remote Client Software and IE Browser * Up to 5 Users Simultaneously * Input: AC100~240V 47~63Hz, Output: DC19V * Included * Included * 15" x 13.60" x 3.76" * 6 lbs * 11.87" x 9.50" x 2.25" * 3.35 lbs |
- ManufacturerWorldeyecam
- Hard DriveFREE 500GB Installed, 1.0 TB, 2.0 TB
- MonitorI will use my own Monitor, 19 Inch LCD Flat Panel
- Digital Video Recorder (DVR)4 Camera DVR Included, Upgrade to 8 Camera DVR for Future Expansion
- Cables4X 100 feet, 4X 25 feet, 4X 50 feet, 500ft Bulk Spool w/connectors, 1000ft Bulk Spool w/connectors
