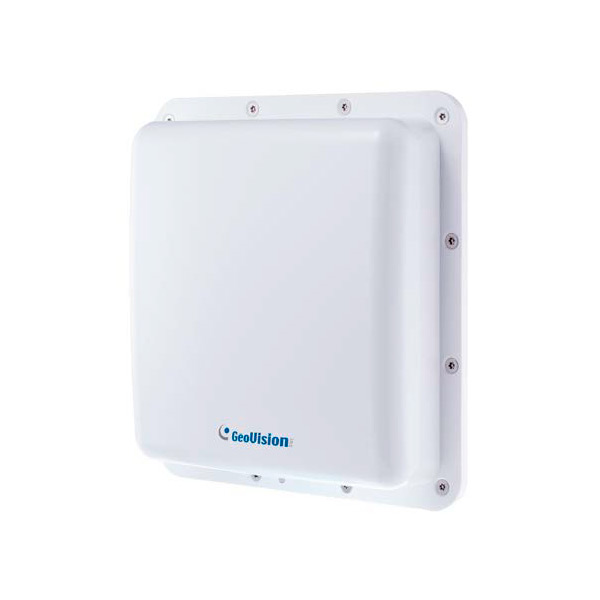

GV-RU9003 UHF RFID Reader


$576.00


Availability: In Stock
Ships within 1 to 12 Hours
List Price: $870.00
SKU: GV-RU9003
Product #: 87260
Manufacturer:
Shipping Lead Time: Ships within 1 to 12 Hours

Warranty:
Remote Login Support:
Quantity

GV-RU9003 is a Radio Frequency Identification (RFID) reader of ISO18000-6C (EPC GEN2) standard. Designed for parking lot management, the reader can read RFID tag within 10 m (32.8 ft).

Features

  • Built-in antenna and RF module
  • Effective identification with specially designed antenna pattern
  • Compatible with access controller using Wiegand 64 interface
  • Ideal sensing range within 10 m (32.8 ft)
  • Special energy-saving design reducing power consumption
  • Support for external sensors and controllers
  • Electronic tag compliant with EPC Gen II (ISO18000-6C) standard
  • R&D patent for EMI reduction
  • NCC/FCC/CE certification


Input Voltage 9 ~ 15 V
Antenna Gain 7.71 dBi (circular polarization)
Antenna Receiving 50 ohm U.FL.
Wiegand Interface Wiegand 64 bit
Operating Frequency RU9003 TW 922-928MHz
RU9003 US 902-928MHz
RU9003 EU 865-868MHz
Emission Power 60 mA
Modulation Scheme Red, Green and Blue LED
Current <1A max.
Protocol EPC Gen2 (ISO 18000-6C)
Receiving Sensitivity -85 dBm
Sensing range 10 m (32.8 ft) max.
Water Resistance IP56
Operating Temperature -20°C ~ 55°C (-7.6°F ~ 131°F)
Storage Temperature -20°C ~ 85°C (-7.6°F ~ 185°F)
LEDs Red, Green
Operating Humidity 5% ~ 90% RH(non-condensing)
Dimensions (W x H x D) 228 x 228 x 52.3mm (8.97" x 8.97" x 2.04")
Weight 530 g (1.16 lbs)
Certification NCC, FCC, CE


Note:

1. The GV-ASManager V4.4.2.0 is required.
2. Wiegand interface supports both GeoVision AS2xxx/4xxx/8xxx controllers and 3rd party controllers (Wiegand 64 Bits).
3. Specifications are subject to change without notice.

There have been no reviews

Packing List


  • GV-RU9003
  • L-Bracket
  • Fixed-clamp
  • U-clip
  • Screws x 4
  • Installation Guide
  • Warranty Card
