GV-FE5302 5MP 1.32mm Fisheye Cam 110-FE5302-000
        • GV-FE5302 5MP 1.32mm Fisheye Cam 110-FE5302-000
        • GV-FE5302 5MP 1.32mm Fisheye Cam 110-FE5302-000

        GV-FE5302 5MP 1.32mm Fisheye Cam 110-FE5302-000

        SKU: 84-FE53020-001U
        Geovision
        SKU:  84-FE53020-001U
        • 1/2.5" progressive scan CMOS
        • Dual streams from H.264 and MJPEG
        • Up to 10 fps at 2560 x 1920
        • Day and night function (with removable IR-cut filter)
        • Vandal resistance (IK10+ for metal casing)
        • POE+ (IEEE 802.3at)
        • Mini USB slot for WiFi Adapter or USB hard drive
        • Built-in micro SD card slot (SD/SDHC) for local storage
        • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
        • Built-in microphone and speaker
        • Digital Object Tracking
        • Provides 360° and 180° panorama view
        • Different angle of view accessible by multiple users at the same time
        • Playback from any view angle and zoom level
        • No mechanical moving parts
        • Two-way audio
        • Wide Dynamic Range (WDR)
        • Defog
        • Tampering alarm
        • Virtual PTZ function
        • Auto Pan function
        • Privacy mask
        • Visual automation
        • Text overlay
        • 31 languages on Web interface
        • ONVIF (Profile S) conformant
        • More storage option - NAS
          • 40% less
          Market price:$560.00 save $226.00
        • $334.00

        OR
        Camera packaging contents:

        1. GV-Fisheye Camera
        2. Support Bracket x 3
        3. Camera Cover (Hard Ceiling Mount)
        4. Camera Cover (In-Ceiling Mount)
        5. Screw (Hard Ceiling Mount) x 3
        6. Screw (In-Ceiling Mount) x 3
        7. Torx wrench
        8. Plastic Screw Anchor x 3
        9. Mini USB Extension Cable
        10. Installation Sticker
        11. Power Adapter
        12. GV-IPCAM H.264 Software DVD
        13. GV-Fisheye IP Dome Hardware Installation Guide
        14. GV-NVR Software DVD
        15. Warranty Card
        • 1/2.5" progressive scan CMOS
        • Dual streams from H.264 and MJPEG
        • Up to 10 fps at 2560 x 1920
        • Day and night function (with removable IR-cut filter)
        • Vandal resistance (IK10+ for metal casing)
        • POE+ (IEEE 802.3at)
        • Mini USB slot for WiFi Adapter or USB hard drive
        • Built-in micro SD card slot (SD/SDHC) for local storage
        • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
        • Built-in microphone and speaker
        • Digital Object Tracking
        • Provides 360° and 180° panorama view
        • Different angle of view accessible by multiple users at the same time
        • Playback from any view angle and zoom level
        • No mechanical moving parts
        • Two-way audio
        • Wide Dynamic Range (WDR)
        • Defog
        • Tampering alarm
        • Virtual PTZ function
        • Auto Pan function
        • Privacy mask
        • Visual automation
        • Text overlay
        • 31 languages on Web interface
        • ONVIF (Profile S) conformant
        • More storage option - NAS
        Introduction

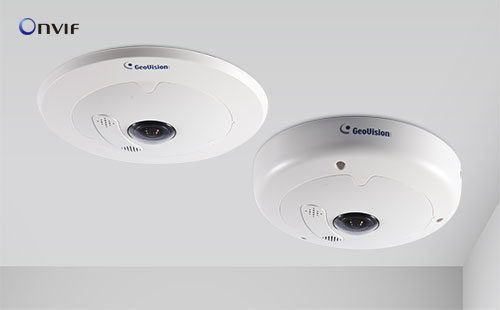

        GV-FE5302 is an indoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling, wall, wall corner and the pole. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System, providing advanced monitoring and video management features.





        Standard

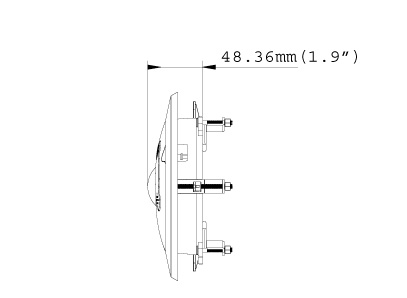

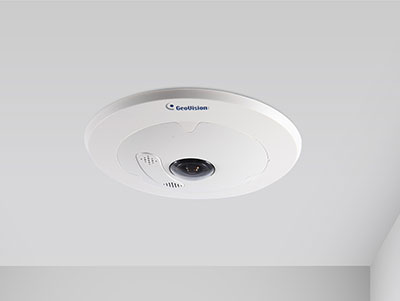

        In-Ceiling Mount

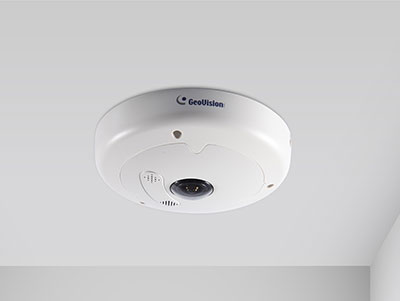

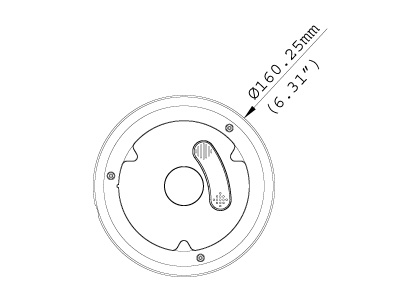

        Hard-Ceiling Mount

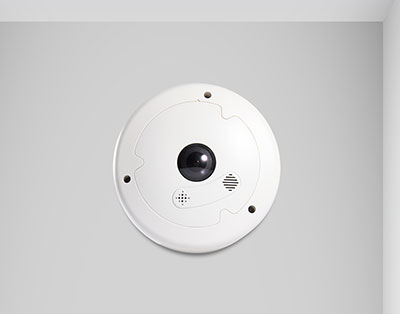

        Wall Mount

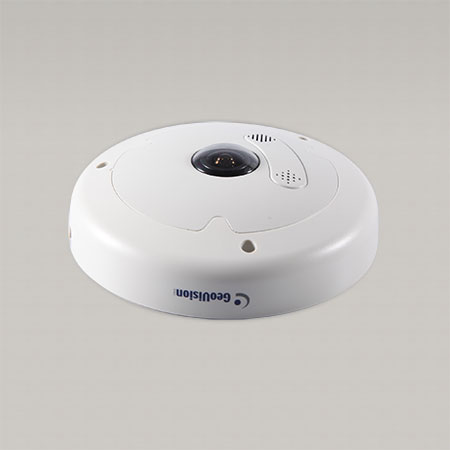

        Ground Mount

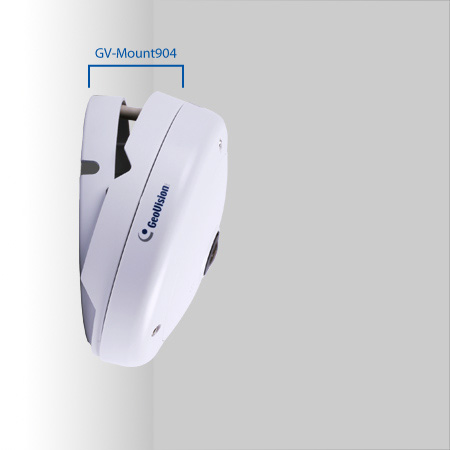

        Tilting Wall Mount


        Wall Pendant Mount

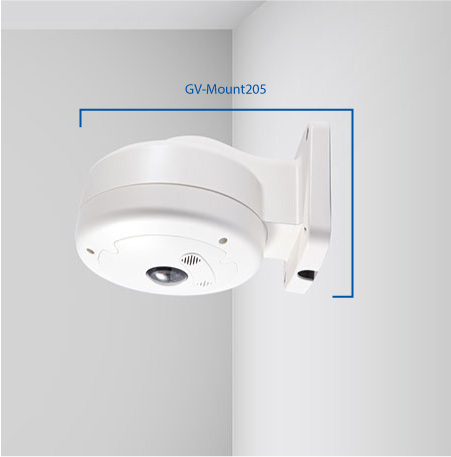

        Wall Mount Bracket

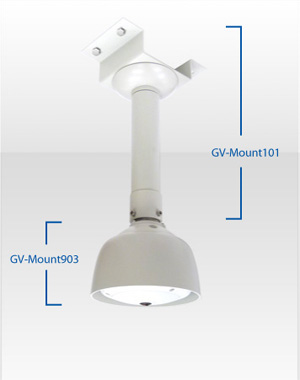

        Straight Tube Mount

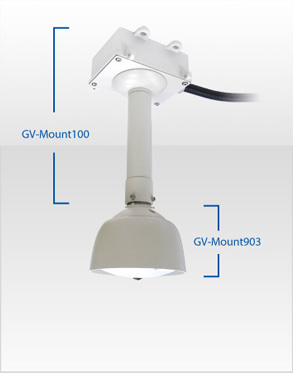

        Straight Tube Box Mount

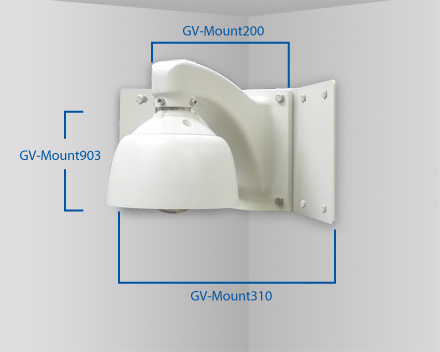

        Concave Corner Mount

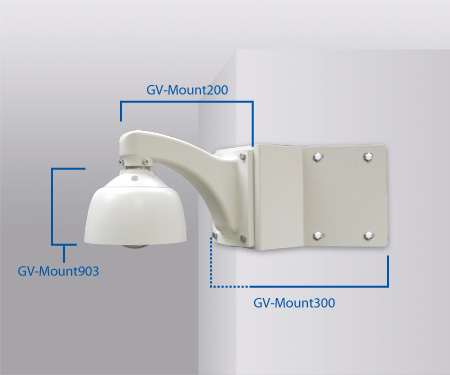

        Convex Corner Mount


        Convex Corner Box Mount

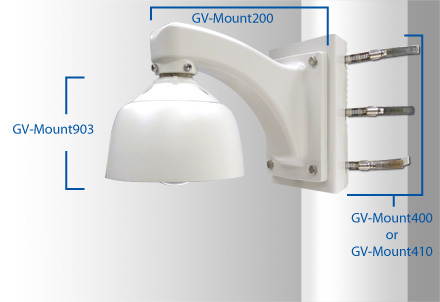

        Pole Mount

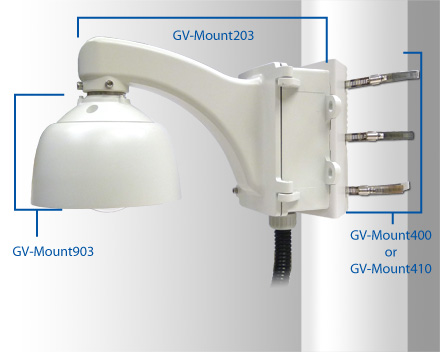

        Pole Box Mount

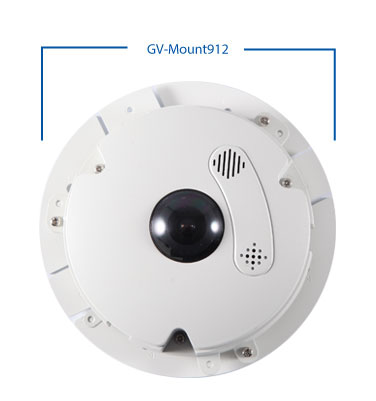

        Power Box Mount

        Firmware

        Software Download & Upgrading

        Version History

        GV-IP Camera Bandwidth and Recording Size Calculator

        Datasheet_IPCamH264FE5302.pdf

        GV-IPCAM_Spec_table.pdf

        GV-IPCAM_Comparison_table.pdf

        Item No. (Sales Part No.)Description
        110-FE5302-000GV-FE5302 5MP Fisheye IP Camera US
        150-MT912-000GV-Mount912 Power Box Mount Bracket (FE/FER)
        150-MT904-FE0GV-Mount904 Tilting Wall Mount Bracket
        150-MT903-ALLGV-Mount903 Dome Housing for FE/FER V3 / VD V3 Series
        150-MT702-500GV-Mount702 Extension Tube 50cm
        150-MT702-300GV-Mount702 Extension Tube 30cm
        150-MT702-200GV-Mount702 Extension Tube 20cm
        150-MT702-100GV-Mount702 Extension Tube 10cm
        150-MT410-000GV-Mount410 Pole Mount Bracket Kit Ø 6’’ ~ 7.5’’
        150-MT400-000GV-Mount400 Pole Mount Bracket Kit Ø 4’’ ~ 6’’
        150-MT310-000GV-Mount310 Concave Corner Adapter Kit
        150-MT300-000GV-Mount300 Convex Corner Adapter Kit
        150-MT203-000GV-Mount203 Wall Pendant Tube and Junction Box Kit
        150-MT200-000GV-Mount200 Wall Pendant Tube
        150-MT101-000GV-Mount101 Straight Tube Kit
        150-MT100-000GV-Mount100 Straight Tube and Junction Box Kit

        Model NoNameDetails
        GV-Mount100Straight Tube and Junction Box KitDimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1") Weight: 3.17 kg (6.99 lb)
        GV-Mount101Straight Tube KitDimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1") Weight: 1.8 kg (3.97 lb)
        GV-Mount200Wall Pendant TubeDimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8") Weight: 900 g (1.98 lb) Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
        GV-Mount205Wall Mount Bracket KitDimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3" (L x W x diameter) Weight: 0.5 kg (1.1 lb) Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
        GV-Mount702Extension TubeFour options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7") Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
        GV-Mount903GV-FE / GV-VD Dome HousingDimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8") Weight: 700 g (1.54 lb)
        GV-Mount904Tilting Wall Mount BracketDimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6") Weight: 400 g (0.88 lb)
        GV-Mount912Power Box Mount BracketDimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4") Weight: 180 g (0.4 lb)
        GV-POE SwitchThe GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
        Power AdapterContact your sales representative for the countries and areas supported. * This item does not include a power cord.

          • SKU
            84-FE53020-001U
          • Weight
            5 lbs
        • Manufacturer
          Geovision
        • Camera Type
          PTZ
        • Camera Signal
          IP
        • Camera Resolution
          2560 x 1920
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
