GV-FE3402 3MP 1.19mm WDR Pro Fisheye Cam 110-FE3402-W00

Geovision
SKU:  84-FE34020-001U
  • 1/3.2" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 15 fps at 2048 x 1536
  • Day and night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • Vandal resistance (IK10+ for metal casing)
  • POE+ (IEEE 802.3at)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
  • Built-in microphone and speaker
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Defog
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • More storage option - NAS
    • 42% less
    Market price:$354.00 save $150.10
  • $203.90
Qty:
OR
Camera packaging contents:

  1. GV-Fisheye Camera
  2. Support Bracket x 3
  3. Camera Cover (Hard Ceiling Mount)
  4. Camera Cover (In-Ceiling Mount)
  5. Screw (Hard Ceiling Mount) x 3
  6. Screw (In-Ceiling Mount) x 3
  7. Torx wrench
  8. Plastic Screw Anchor x 3
  9. Mini USB Extension Cable
  10. Installation Sticker
  11. Power Adapter
  12. GV-IPCAM H.264 Software DVD
  13. GV-Fisheye IP Dome Hardware Installation Guide
  14. GV-NVR Software DVD
  15. Warranty Card
  • 1/3.2" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 15 fps at 2048 x 1536
  • Day and night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • Vandal resistance (IK10+ for metal casing)
  • POE+ (IEEE 802.3at)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
  • Built-in microphone and speaker
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Defog
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • More storage option - NAS

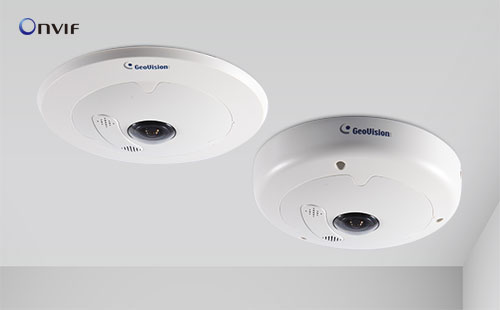

GV-FE3402 is an indoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling, wall, wall corner and the pole. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System, providing advanced monitoring and video management features.





Standard

In-Ceiling Mount


Hard-Ceiling Mount

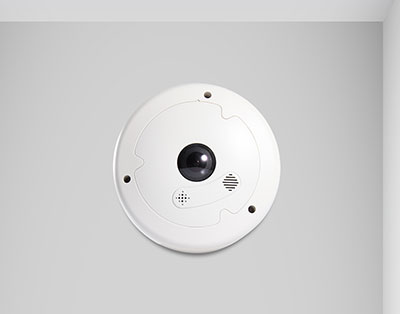

Wall Mount

Optional

Tilting Wall Mount


Wall Pendant Mount


Wall Mount Bracket


Straight Tube Mount


Straight Tube Box Mount


Concave Corner Mount


Convex Corner Mount


Convex Corner Box Mount


Pole Mount


Pole Box Mount


Power Box Mount
Ground Mount

Firmware

Software Download & Upgrading

Version History

GV-IP Camera Bandwidth and Recording Size Calculator

GV-IPCAM_Spec_table.pdf

Datasheet_IPCamH264FE3402.pdf

GV-IPCAM_Comparison_table.pdf

Item No. (Sales Part No.)Description
110-FE3402-W00GV-FE3402 3MP WDP Pro Fisheye IP Camera US
150-MT912-000GV-Mount912 Power Box Mount Bracket (FE/FER)
150-MT904-FE0GV-Mount904 Tilting Wall Mount Bracket
150-MT903-ALLGV-Mount903 Dome Housing for FE/FER V3 / VD V3 Series
150-MT702-500GV-Mount702 Extension Tube 50cm
150-MT702-300GV-Mount702 Extension Tube 30cm
150-MT702-200GV-Mount702 Extension Tube 20cm
150-MT702-100GV-Mount702 Extension Tube 10cm
150-MT410-000GV-Mount410 Pole Mount Bracket Kit Ø 6’’ ~ 7.5’’
150-MT400-000GV-Mount400 Pole Mount Bracket Kit Ø 4’’ ~ 6’’
150-MT310-000GV-Mount310 Concave Corner Adapter Kit
150-MT300-000GV-Mount300 Convex Corner Adapter Kit
150-MT203-000GV-Mount203 Wall Pendant Tube and Junction Box Kit
150-MT200-000GV-Mount200 Wall Pendant Tube
150-MT101-000GV-Mount101 Straight Tube Kit
150-MT100-000GV-Mount100 Straight Tube and Junction Box Kit

Model NoNameDetails
GV-Mount100Straight Tube and Junction Box KitDimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1") Weight: 3.17 kg (6.99 lb)
GV-Mount101Straight Tube KitDimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1") Weight: 1.8 kg (3.97 lb)
GV-Mount200Wall Pendant TubeDimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8") Weight: 900 g (1.98 lb) Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
GV-Mount205Wall Mount Bracket KitDimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3" (L x W x diameter) Weight: 0.5 kg (1.1 lb) Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
GV-Mount702Extension TubeFour options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7") Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903GV-FE / GV-VD Dome HousingDimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8") Weight: 700 g (1.54 lb)
GV-Mount904Tilting Wall Mount BracketDimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6") Weight: 400 g (0.88 lb)
GV-Mount912Power Box Mount BracketDimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4") Weight: 180 g (0.4 lb)
GV-POE SwitchThe GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power AdapterContact your sales representative for the countries and areas supported. * This item does not include a power cord.

    • SKU
      84-FE34020-001U
    • Weight
      5 lbs
  • Manufacturer
    Geovision
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Camera Resolution
    2048 x 1536
  • Lens Size
    1.19mm
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
