GV-EFD2101 2MP 3~9mm Super Low Lux, P-Iris Fixed Dome, DC 12V/PoE 110-EFD2101-000


$178.08


Availability: In Stock
List Price: $298.00
SKU: 84-EFD2101-0010
Product #: 89975
Manufacturer:
Camera Type: Dome
Camera Resolution: 1920 x 1080
Camera Signal: IP
Optical Zoom: Varifocal

Remote Login Support:
Quantity

Camera packaging contents:

  • Target Fixed Dome
  • Screw x 3
  • Screw Anchor x 3
  • Torx Wrench
  • TV-Out Wire
  • Installation Sticker
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
  • 1/2.8” progressive scan super low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • P-Iris lens for auto Iris control
  • IR distance up to 50 m (164 ft)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • More storage option - NAS

The Target Fixed Dome is an indoor, fixed network camera equipped with an automatic IR‐cut filter, Super Low Lux, IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers a surveillance solution with all the essential features and excellent image quality.

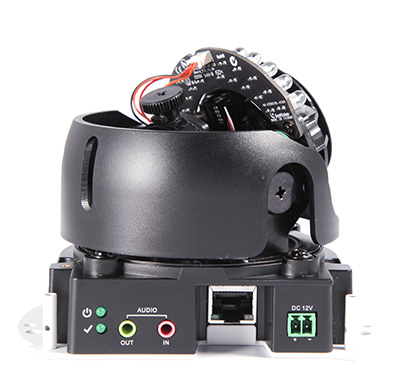

Rear Panel

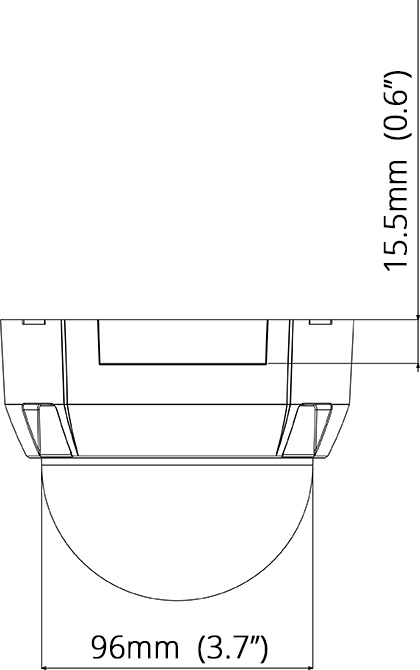

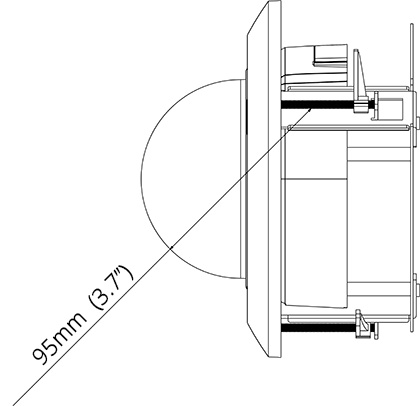

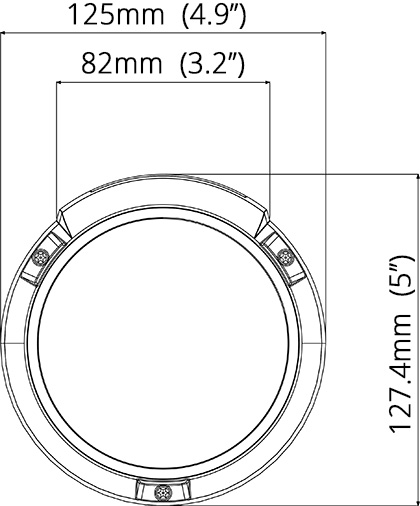

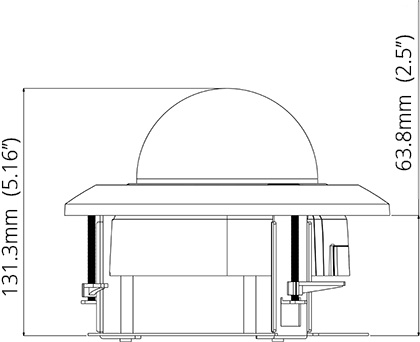

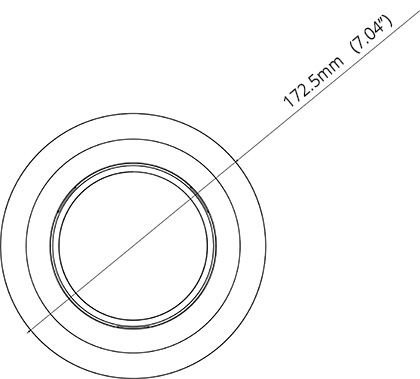

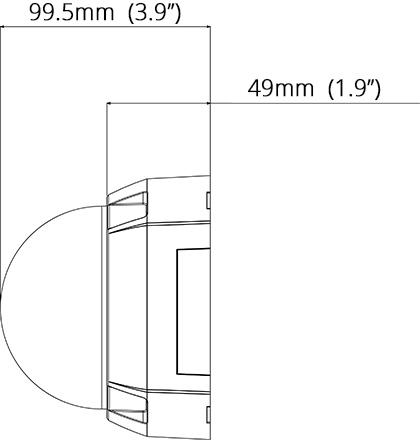

Dimensions
Hard-Ceiling Mount

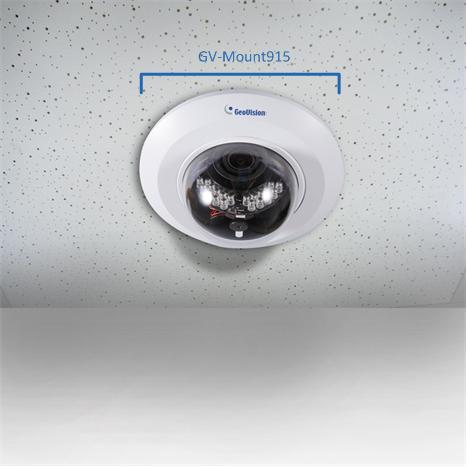

In-Ceiling Mount

Standard

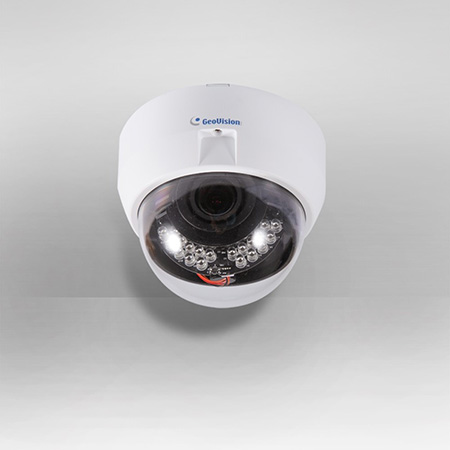

Ceiling Mount


Wall-Surface Mount

Optional

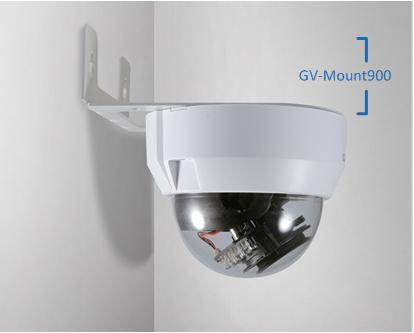

L-Shaped Wall Mount

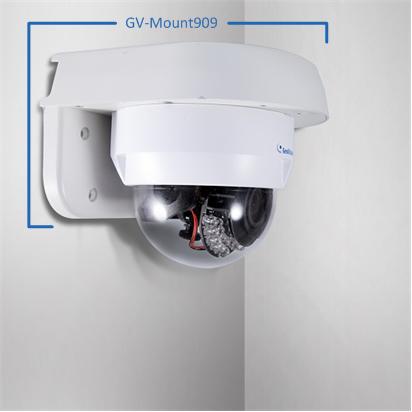

Wall Box Mount

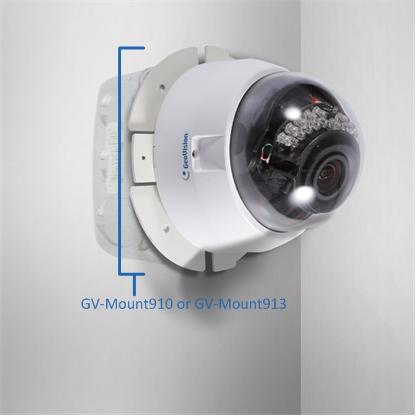

Power Box Mount


In-Ceiling Mount

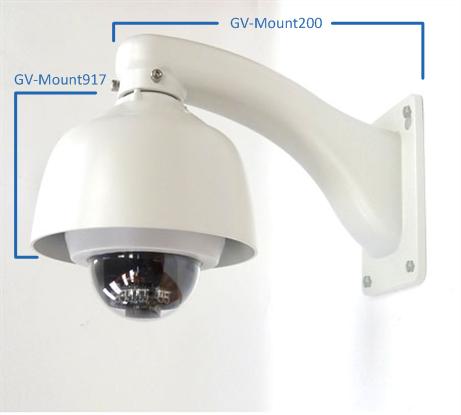

Wall Pendant Mount

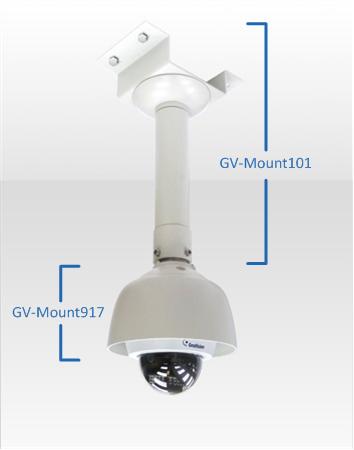

Straight Tube Mount

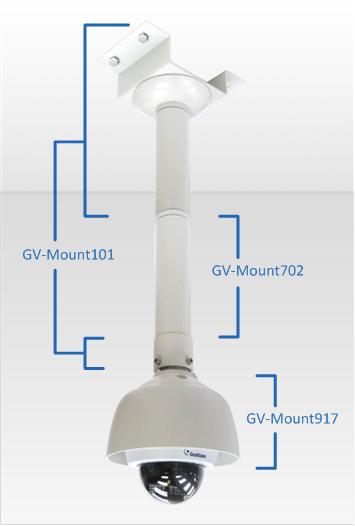

Straight Tube Mount with Extension Tube

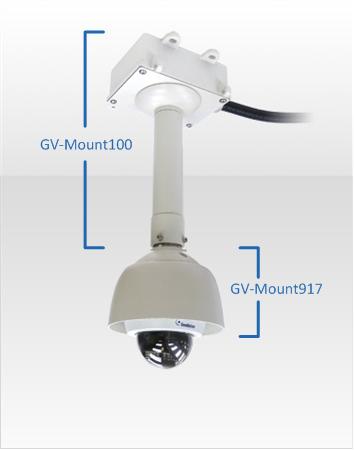

Straight Tube Box Mount

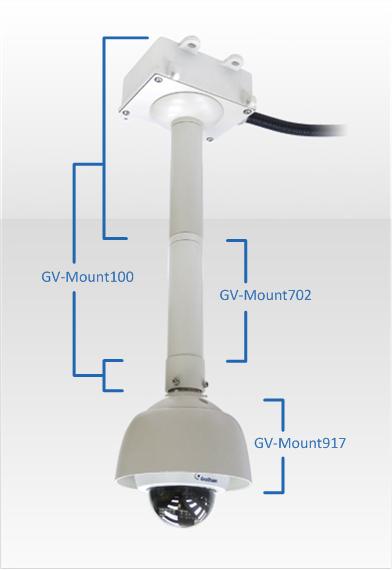

Straight Tube Box Mount with Extension Tube

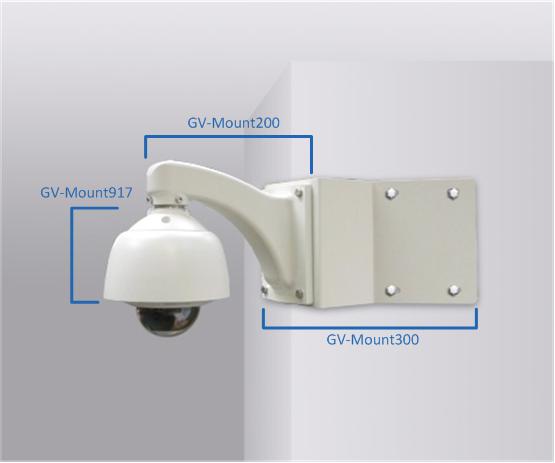

Convex Corner Mount

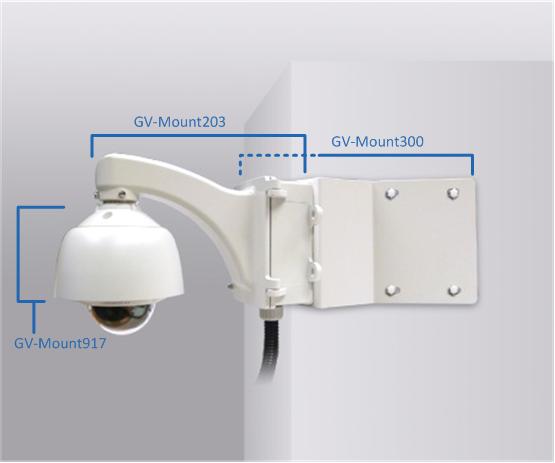

Convex Corner Box Mount

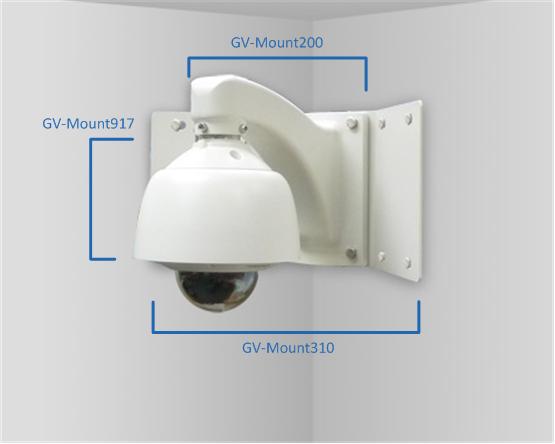

Concave Corner Mount

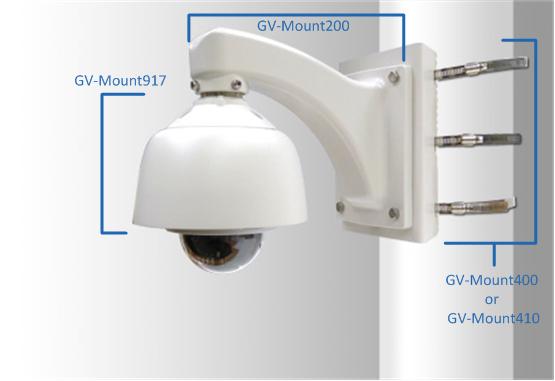

Pole Mount

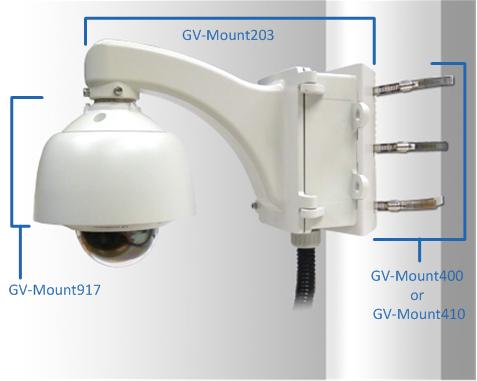

Pole Box Mount

Firmware

Software Download & Upgrading

Version History

GV-IP Camera Bandwidth and Recording Size Calculator

[ebook on iBooks Store] Quick Start Guide

[ebook on Google Play] Quick Start Guide

GV-IPCAM_Spec_table.pdf

Datasheet_IPCamEFD2101.pdf

GV-IPCAM_Comparison_table.pdf

Item No. (Sales Part No.) Description
110-EFD2101-000 GV-EFD2101 2MP Super Low Lux WDR IR Fixed IP Dome
150-MT100-000 GV-Mount100 Straight Tube and Junction Box Kit
150-MT101-000 GV-Mount101 Straight Tube Kit
150-MT200-000 GV-Mount200 Wall Pendant Tube
150-MT203-000 GV-Mount203 Wall Pendant Tube and Junction Box Kit
150-MT300-000 GV-Mount300 Convex Corner Adapter Kit
150-MT310-000 GV-Mount310 Concave Corner Adapter Kit
150-MT400-000 GV-Mount400 Pole Mount Bracket Kit Ø 4’’ ~ 6’’
150-MT410-000 GV-Mount410 Pole Mount Bracket Kit Ø 6’’ ~ 7.5’’
150-MT702-100 GV-Mount702 Extension Tube 10cm
150-MT702-200 GV-Mount702 Extension Tube 20cm
150-MT702-300 GV-Mount702 Extension Tube 30cm
150-MT702-500 GV-Mount702 Extension Tube 50cm
150-MT900-000 GV-Mount900 Wall Mount Bracket 154 x 108 x 50 mm
150-MT909-000 GV-Mount909 Wall Box Mount 170 X 150 X 110 mm
150-MT910-000 GV-Mount910 Power Box Mount Bracket (MFD/MDR/EFD)
150-MT913-000 GV-Mount913 Power Box Mount Bracket
150-MT915-000 GV-Mount915 In-Ceiling Mounting Kit
150-MT917-000 GV-Mount917 Dome Housing
140-PA901-000 GV-PA901 PoE Adapter

Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1") Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1") Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8") Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9") Weight: 2.95 kg (6.5 lb)
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1") Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5") Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7") Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2") Weight: 240 g (0.53 lb)
GV-Mount909 Wall Box Mount Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3") Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3") Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3") Weight: 180 g (0.4 lb)
GV-Mount915 In-Ceiling Mounting Kit for GV-EFD2101 / 3101 Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04 x 2.5") Weight: 424 g (0.93 lb)
GV-Mount917 GV-EFD2101 / 3101 Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8") Weight: 948 g (2.09 lb)
GV-PA191 PoE Adapter Dimensions: 43 x 69 x 40 mm (1.69" x 2.72" x 1.57") Weight: 130 g (0.29 lb)
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
