GV-B600U U Bracket for 600lbs Gate Lock -Optional for use with GV-ML600 on glass door


$38.00


Availability: In Stock
Ships within 1 to 12 Hours
List Price: $52.00
SKU: GV-B600U 81-MB600U0-0001
Product #: 85618
Manufacturer: Geovision

GeoVision Authorized Distributor Warranty:
Quantity

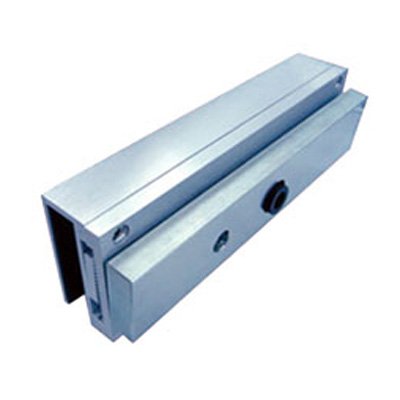

The GV-B600U Brackets are required for installing the GV-ML600 electromagnetic lock on the glass doors. With the GV-ML600 lock body mounting on the door frame, and the U bracket attaching to the magnet faceplate from the GV-ML600, the glass door is secured with the electromagnetic lock to enhance the security.

Model No GV-B600U

Ordering Part No. 530-ML600-U00

SKU 81-MB600U0-0001

The GV-B600U Brackets are required for installing the GV-ML600electromagnetic lock on the glass doors. With the GV-ML600 lock body mounting on the door frame, and the U bracket attaching to the magnet faceplate from the GV-ML600, the glass door is secured with the electromagnetic lock to enhance the security.

Specifications

Holding Force 272.15 kg (600 lb)
Dimensions (L x W x H) 185 x 62 x 33.6 mm (7.3" x 2.44" x 1.32")
Weight
(bracket + spacer + plates)
700 g (1.54 lb)
Material aluminum
Suitable glass thickness 7 mm to 12 mm

*}
