GV-AS Net (pair with AS100/AS110/AS120 to provide ethernet function, two doors solution)


Availability: In Stock
Ships within 1 to 12 Hours
Product #: 85608

Remote Login Support:

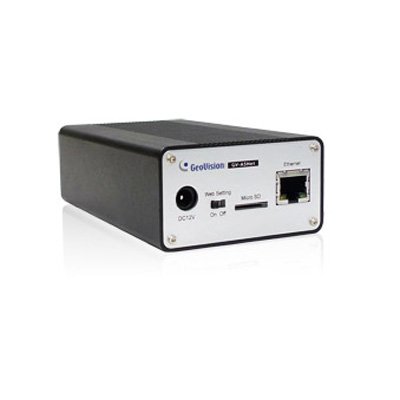

The optional GV-ASNet is the network expansion module for GV-AS100, GV-AS110 and GV-AS120. With the GV-ASNet, GV-AS100/GV-AS110/ GV-AS120 can be connected to the GV-ASManager and you can access the Web interface of GV-AS100/GV-AS110/ GV-AS120.

Key Features

  • Model No. GV-ASNET
  • Ordering Part No. 530-ASNET-000
  • 84-ASNET-100U
  • Add TCP/IP networking capability to GV-AS100/ GV-AS110/ GV-AS120
  • Access GV-AS100/ GV-AS110/ GV-AS120's features through Web-based interfaces
  • Support 2 units of GV-Readers and GV-GF Fingerprint Readers
CPU 32-bit ARM7TDMI Microprocessor
Power 100 ~ 240V AC, 50 ~ 60Hz
Battery 12V, 5Ah and 12V, 12Ah
Reader Port 1 RS-485 interface only for GV-Readers and GV-GF Fingerprint Readers (Max. 2 readers)
Communication Protocol GV-AS100/110/120 RS-485
GV-ASManager TCP/IP (10/100 Mbps Ethernet)
Operating Temperature 0 °C ~ 65 °C / 32 °F ~ 149 °F
Operating Humidity 10 ~ 90% RH (non-condensing)
Dimensions (W x H x D) 118.3 x 74 x 40 mm / 4.7 x 2.9 x 1.6 in
Weight 300 g / 0.66 Ib
Certification CE, FCC, RoHS
