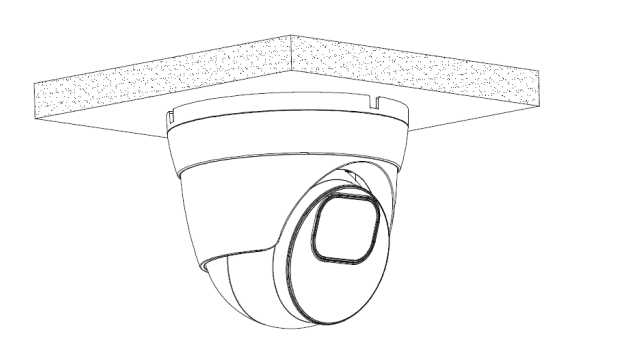

Geovision UA-CR510F2 l 5 MP Super Low Lux IR Eyeball Dome Camera


Availability: In Stock
List Price: $120.00
Product #: 118827
Camera Type: Eyeball Dome
Camera Signal: IP
Lens Size: 2.8mm

Remote Login Support:

UA-CR510F2 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA‐XVL810, UA‐XVL1610 and UA‐XVR810), it supports real-time alert, event playback and more.


Model UA-CR510F2
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 111.4°
Maximum Aperture F/1.6
Image Format 1/2.7"

Key Features

  • 1/2.7" progressive scan CMOS sensor
  • IR distance up to 20 m (65 ft)
  • Built-in microphone
  • Ingress protection (IP66)
  • 4 in 1 (TVI / AHD / CVI / CVBS)

  • Note:
  • All specifications are subject to change without notice.



  • Model No Name Details
    UA-Mount215 Wall Box Mount Dimensions: 155 x 75 x 132 mm (6.1" x 2.95" x 5.2")
    Weight: 0.62 kg (1.37 lb)
    UA-Mount505 Wall Mount Bracket Dimensions: Ø 100.5 x 56 mm (Ø 3.96" x 2.2")
    Weight: 0.46 kg (1.01 lb)
    UA-Mount922 Power Box Mount Bracket Dimensions: Ø 148.00 mm (Ø 5.83")
    Weight:180 g (0.4 lb)
