GeoVision How do I upgrade firmware on AS400?

Back to GeoVision Support | Support Home

AS400 firmware upgrade procedure:
  1. Download AS400 firmware and save it onto the desktop.
  2. Extract the .zip file onto the desktop.
  3. Power off AS400 panel until all lights are gone.

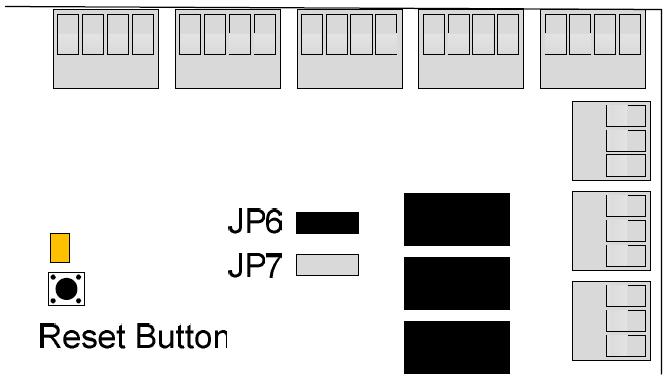

  4. Add an additional jumper to JP7. So there should now be a jumper on BOTH JP6 and JP7.
  5. Reconnect power to AS400 panel.

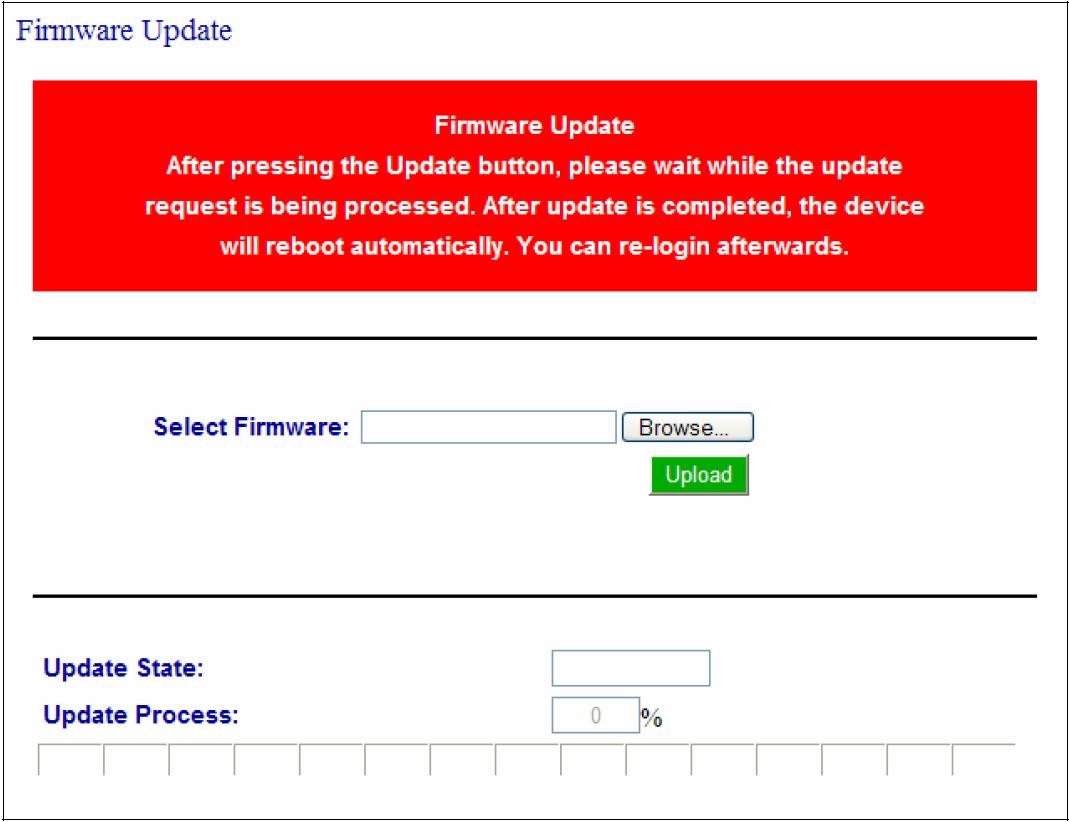

  6. Go on to AS400's web interface, select Firmware Update on the left.
  7. Click "Browse..." and locate the new firmware file in *bin format.
  8. Click Upload button to initiate the firmware upgrade (this may take more than 60 seconds).

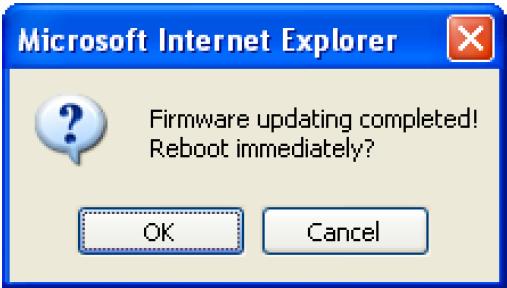

  9. When firmware upgrade is complete, click OK to reboot.
