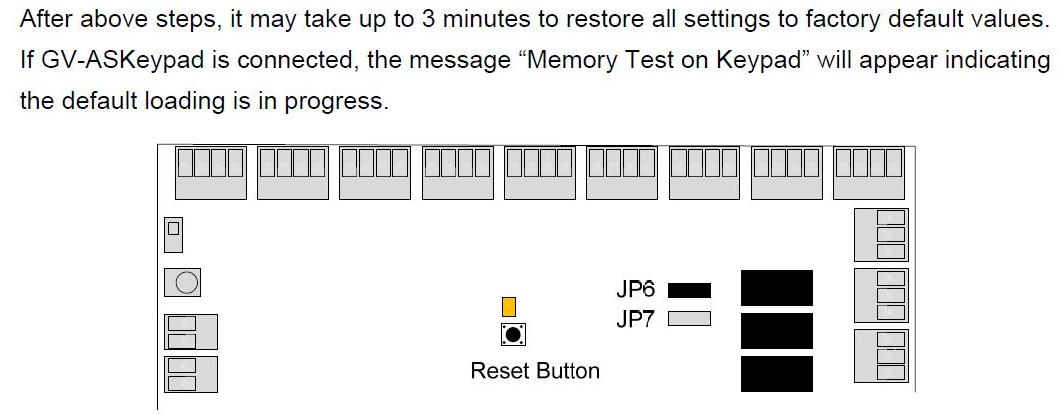

To restore factory default settings via AS400 web interface, leave jumper on JP6, nothing on JP7.
To restore factory default settings on AS400 panel:
- Disconnect power from AS400 panel until all LED lights disappear.
- Move jumper from JP6 to JP7.
- Power on the AS400 panel.
- Press and hold the Reset button in the upper center of GV-AS400 circuit board for 45 seconds. All input LEDs should light on.
- Move jumper back from JP7 to JP6.
- Wait 2 minutes for the AS400 to reboot.
