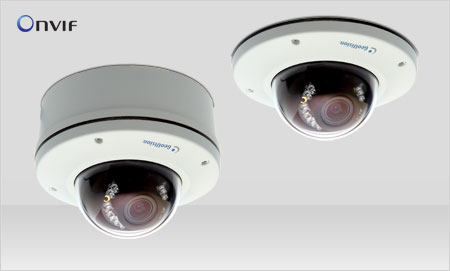

GEOVISION GV-VD2400 2MP H.264 Outdoor Day/Night WDR Pro IR Vandal-Proof IP Dome Camera with 3 to 9mm Lens

Geovision
SKU: 84-VD24000-001U

Information

  • 2MP/VANDM/WDR/IR/3-9M/IP67-20C
  • Gv-Vd240d Ip Camera Vandal Proof Dome D/N,Ip67,2M
  • IP Fixed Domes Cameras
    IP Cameras

Overview

The GV-VD2400 2MP H.264 Outdoor Day/Night WDR Pro IR Vandal-Proof IP Dome Camera from GeoVision comes with an automatic IR-cut filter and IR LEDs for day and night surveillance. It features a 2MP 1/3.2" progressive scan CMOS sensor and offers resolutions up to 1920 x 1080 at 30 fps. Equipped with WDR Pro, the camera can process scenes with contrasting intensity of lights and reproduce clear images. Thanks to its IP67 and IK10+ vandal-proof metal enclosure, the GV-VD2400 dome camera can be installed outdoors and in high-risk areas. It can be installed on wall surface, wall corner, pole, and ceiling using GV-Mount accessories (not included).

1/3.2" progressive scan CMOS sensor
Removable IR-cut filter for Day/Night functionality
Dual streaming with H.264 and MJEPG video compression
Up to 30 fps at 1920 x 1080
Varifocal megapixel lens
3-axis adjustment (pan / tilt / roll)
WDR Pro (Wide Dynamic Range Pro)
Intelligent IR
2-way audio support with external microphone
Backlight Compensation
Defog
Motion detection
Privacy mask
Tampering alarm
TV-out support
One sensor input and alarm output
Built-in microSD card slot (SDHC/SDXC) for local storage
IP67-rated and vandal-resistant (IK10+)
IP address filtering
Supports iPhones, iPads, Android devices, and 3GPP devices
31 languages on Web interface
ONVIF (Profile S) conformant
12VDC/24VAC/PoE
    • 37% less
    Market price:$879.68 save $324.09
  • $555.59
Qty:
OR

Information

  • Model No. GV-VD2400
  • Ordering Part No. 120-VD2400-000
  • 2MP/VANDM/WDR/IR/3-9M/IP67-20C
  • Gv-Vd240d Ip Camera Vandal Proof Dome D/N,Ip67,2M
  • IP Fixed Domes Cameras
    IP Cameras

Overview

The GV-VD2400 2MP H.264 Outdoor Day/Night WDR Pro IR Vandal-Proof IP Dome Camera from GeoVision comes with an automatic IR-cut filter and IR LEDs for day and night surveillance. It features a 2MP 1/3.2" progressive scan CMOS sensor and offers resolutions up to 1920 x 1080 at 30 fps. Equipped with WDR Pro, the camera can process scenes with contrasting intensity of lights and reproduce clear images. Thanks to its IP67 and IK10+ vandal-proof metal enclosure, the GV-VD2400 dome camera can be installed outdoors and in high-risk areas. It can be installed on wall surface, wall corner, pole, and ceiling using GV-Mount accessories (not included).

1/3.2" progressive scan CMOS sensor
Removable IR-cut filter for Day/Night functionality
Dual streaming with H.264 and MJEPG video compression
Up to 30 fps at 1920 x 1080
Varifocal megapixel lens
3-axis adjustment (pan / tilt / roll)
WDR Pro (Wide Dynamic Range Pro)
Intelligent IR
2-way audio support with external microphone
Backlight Compensation
Defog
Motion detection
Privacy mask
Tampering alarm
TV-out support
One sensor input and alarm output
Built-in microSD card slot (SDHC/SDXC) for local storage
IP67-rated and vandal-resistant (IK10+)
IP address filtering
Supports iPhones, iPads, Android devices, and 3GPP devices
31 languages on Web interface
ONVIF (Profile S) conformant

Specifications

12VDC/24VAC/PoE

Camera
Image Sensor1/3" progressive scan super low lux CMOS
Picture ElementsH x V: 1920 x 1080
Minimum IlluminationColor: 0.08 lux
B/W: 0.05 lux
IR On: 0 lux
Shutter Speed1/5 to 1/8,000 sec (Automatic, Manual)
White Balance2,800 to 8,500 K (Automatic, Manual)
Gain ControlAutomatic
S/N Ratio47 dB
Lens
TypeVarifocal (Megapixel)
Focal Length3 to 9 mm
Day/NightYes, with removable IR‐cut filter
Maximum ApertureF1.2
MountØ 14 mm
Image Format1/2.7"
FocusManual with lock
ZoomManual with lock
IrisDC drive
TorqueFocus / Zoom Screws: 0.049 Nm maximum
IR LED10
Illumination Distance50' (15 m)
Operation Details
Video CompressionH.264, MJPEG
Video StreamingDual streams from H.264 and MJPEG
Frame Rate30 fps at 1920 x 1080 1
Image SettingsBrightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog
Audio Compression FormatG.711
AudioTwo‐way support
Sensor Input1 (Dry Contact)
Alarm Output1 (200 mA, 5 VDC)
Video ResolutionMain Stream
4:3: 1600 x 1200, 1280 x 960
16:9: 1920 x 1080, 1280 x 720
5:4: 1280 x 1024

Sub Stream
4:3: 640 x 480, 320 x 240
16:9: 640 x 360, 448 x 252
5:4: 640 x 512, 320 x 256
Network
InterfaceRJ45, 10/100 Base-T Ethernet
ProtocolHTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
DetectorsTemperature detector
Pan0 to 350°
Tilt10 to 90°
Rotate0 to 340°
ConnectorsAudio:
Input: 1 x RCA female for microphone
Output: 1 x RCA female for speaker

Digital I/O: Input/Output wire

Auto Iris: DC Drive

Power: 2‐pin terminal block, PoE

TV-Out: BNC connector (640 x 480 resolution)
Local StoragemicroSD card slot (SDHC / SDXC for Class 6 card or above; card not included)
LED Indicator2: Power, status
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet / PD
PoE Power Supply TypeEnd‐Span
PoE Power OutputPer Port: 48 VDC, 350 mA, maximum 15.4 W
Web Support
Installation & ManagementWeb‐based configuration
MaintenanceFirmware upgrade through Web Browser or Utility
Web Browser AccessCamera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ
LanguageArabic, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hungarian, Indonesian, Italian, Japanese, Lithuanian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish
Applications
Network StorageGV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server
Smart Device AccessGV‐Eye for Android smartphones, tablets, iPhones, and iPod Touch
GV‐Eye HD for iPads
Live ViewingIE, smartphone
CMS Server SupportGV‐Control Center, GV‐Center V2, GV‐VSM
General
IP RatingIP67
Vandal ProofIK10+
RegulatoryCE, FCC, C-Tick, RoHS compliant
Power Source12 VDC / 24 VAC / PoE
Maximum Power Consumption12 W
Environment Temperature‐22 to 122°F (‐30 to 50°C)
Humidity10 to 90% (no condensation)
Cable Length3.28' (1.00 m)
DimensionsCamera Body (ø x L): 6.49 x 4.92" (165.00 x 125.00 mm)
Maximum Cable Diameter: 0.66" (16.7 mm)
Maximum Connector Diameter: 0.66" (16.7 mm)
Weight3.75 lb (1.70 kg)



    • SKU
      84-VD24000-001U
    • Weight
      3.75 lbs
  • Manufacturer
    Geovision
  • Shipping Lead Time
    Ships within 1 to 12 Hours
  • Warranty
    GeoVision Direct Warranty
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
