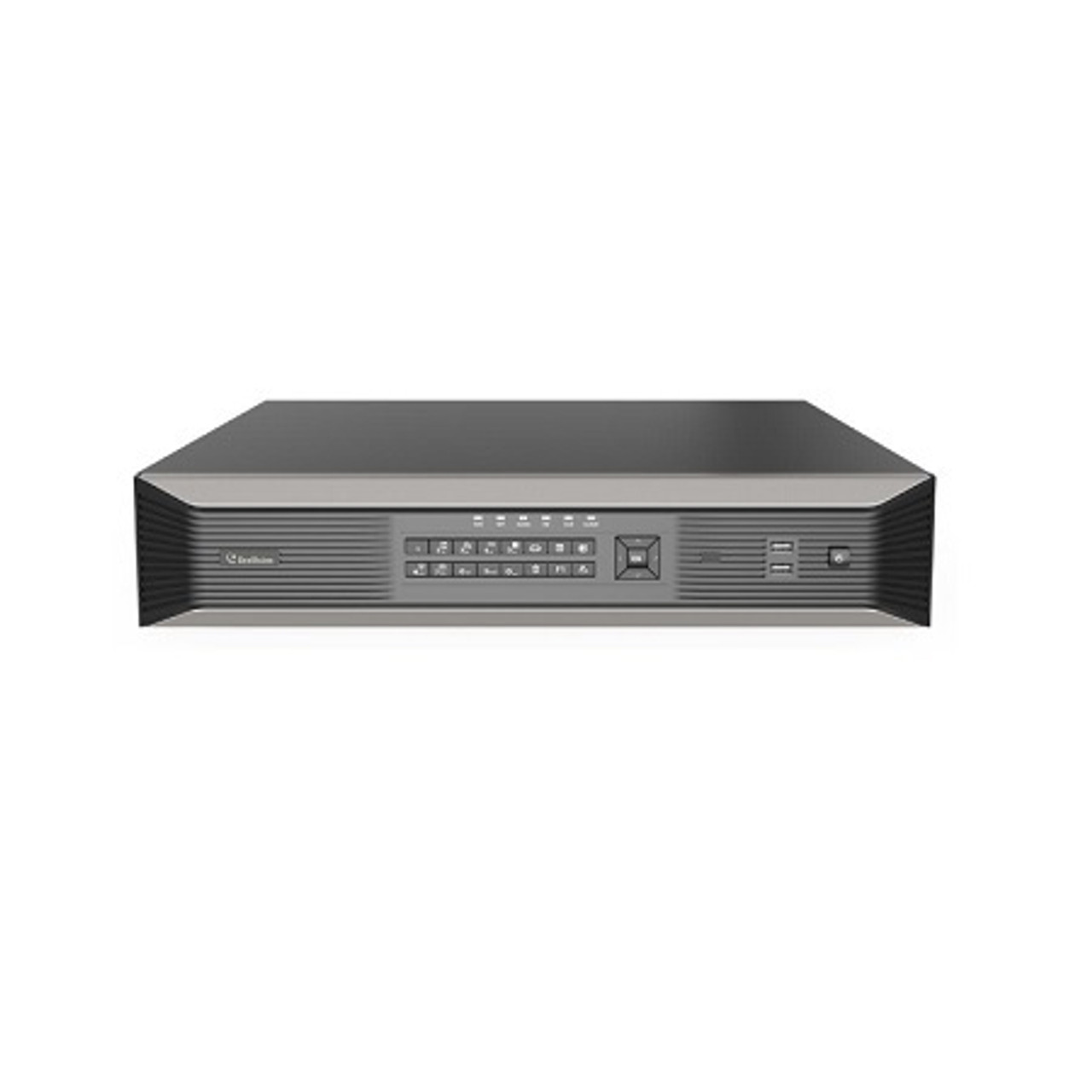

Geovision GV-SNVR3203 32 Channel NVR 384Mbps Max Throughput - No HDD
The GV‐SNVR0812 is an H.264/H.265 Linux‐embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV‐IP devices for network surveillance. GV‐SNVR0812 has 8 built‐in PoE+ (IEEE 802.3at) ports, functioning to carry network and power to the connected IP devices. Featuring up to 4K resolution video output, GV‐SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to import or export system settings, update firmware, save snapshot files as well as back up video in AVI format.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The GV‐SNVR0812 is an H.264/H.265 Linux‐embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV‐IP devices for network surveillance. GV‐SNVR0812 has 8 built‐in PoE+ (IEEE 802.3at) ports, functioning to carry network and power to the connected IP devices. Featuring up to 4K resolution video output, GV‐SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to import or export system settings, update firmware, save snapshot files as well as back up video in AVI format.
Features:
- Model Number - GV-SNVR3203
- Manufacturer SKU Number - 84-SNR323W-001U
- Sales Part Number - 801-SNVR-3203
- 32-channel video recording
- Up to 4000 x 3000 resolution for each channel
- Dual stream support
- Triple display from 3 video outputs: One 4K (HDMI), two 1080p (HDMI / VGA)
- 4 SATA HDD drawers (3.5") for up to 40 TB storage
- Two-way audio
- 16 sensor inputs and 4 alarm outputs
- Automatic search and setup for IP cameras
GV-SNVR3203 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive and supports up to 32 IP camera channels for video surveillance. Thanks to its up to 4K resolution video output, GV-SNVR3203 eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export system settings, update firmware, store snapshot files and back up videos.
Specification
Hardware
System
- OS - Embedded Linux
- No. of Drive Bay - 4 (3.5" HDD), up to 40 TB
- Power Source - Input: AC 100 ~ 240V, 50 ~ 60 Hz

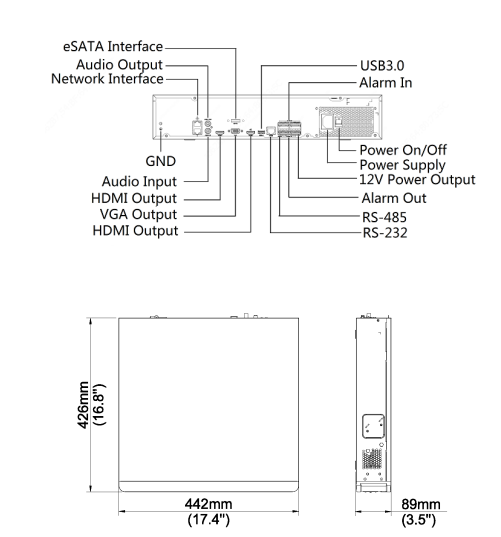

- Connectors
- Gigabit Ethernet - 2 ports, RJ-45 10/100/1000 Mbps
- Video Output - HDMI output ports x 2 / VGA output port x 1
- Audio - RCA, Audio In/Out
- USB - Front: USB 2.0 x 2 Port, Rear: USB 3.0 x 1 Port
- Serial - RS-485
- I/O - 16 Inputs, 4 Output
- LED Indicator - 6 LEDs: RUN, NET, GUARD, HD, ALM, CLOUD (not functional)
- Operating Temperature - -10°C ~ + 55°C (+14°F ~ +131°F)
- Humidity - 0% ~ 90% RH (non-condensing)
- Dimensions (L x W x H) - 442 mm × 426 mm × 89 mm (17.4" × 16.8" × 3.5")
- Net Weight - 5.7 kg (12.57 lb)
- Regulatory - FCC, CE, BSMI, RoHS compliant
Video and Audio
- Video Compression - H.264, H.265
- Video Stream - Dual streams from H.264, H265
- Video Output - 4K (HDMI) / 1080p (HDMI/VGA)
- Local Viewing
- Corridor Mode - 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
- Multi-Window - 4 / 6 / 8 / 9 / 16 / 25 / 36
- Audio Compression - G.711
- Audio Support - Yes
- Two-Way Audio - Yes
- Playback - Max. 16-ch playback
Disk Array
- Array Type - RAID 1, 5
Interface
Monitors
- VGA Output - 1 port (1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz)
- HDMI Output - 2 ports (3840 x 2160 / 30 Hz, 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz) *HDMI audio output is not supported
Operation
- Recording Bandwidth - Input Max. 384 Mbps, Output Max. 384 Mbps
- Decoding Capability - 12 MP at 30 fps x 2-ch, 8 MP at 30 fps x 4-ch, 4 MP at 30 fps x 8-ch, 4 MP at 25 fps x 9-ch, 1080p at 30 fps x 16-ch, 960p at 25 fps x 32-ch
- Recording Mode - Normal, Motion Detection, Alarm Input, Alarm Output, Manual Alarm, Audio Detection Recording, Schedule Recording, Event recording, Snapshot, Manual recording
- Pre-Recording - 0 ~ 60 sec. / Default 10 sec
- Post Recording - 5 ~ 600 sec. / Default 60 sec
- Instant Playback - 5 minutes and 30 seconds
- Backup Type - USB flash drive of FAT32 or NTFS format
- Playback Function - Fast forward / backward (2x, 4x, 8x, 16x), Slow forward (1/2x, 1/4x, 1/8x,)
Deep Learning Function
- AI Analytics - Intrusion Detection, Cross Line Detection, Enter Area, Face Detection, Leave Area (Human classification), Defocus detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting, Crowd Density Monitoring, People Counting Report. *VCA functions are only applicable when the NVR is connected to AI-capable IP cameras listed in Compatible GV-AI Capable IP Cameras below
Management
- Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese
- Firmware upgrade - Upgrade through Web
- Web Browser - IE 10 or above, Firefox V52 or above Google Chrome V45 or above Edge V79 or above
Network
- Protocol - 802.1x, ARP, HTTPS, DHCP, IPv4, PPPoE, DDNS, FTP, HTTP, RTSP, UPnP, SMTP, SNMP, DNS, ICMP, IGMP, NTP, QoS, RTCP, RTSP, RTP, TCP, UDP
System Monitoring and Recovery
- Power Restoration - Automatic restart after power outage
Remote Viewing
- Multi-Window - 1 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 25 / 36
- Monitoring Environment - IE browser, non-IE bowsers (Chrome, Edge, Firefox, Safari), Mobile app
- Access from Web Browsers - Live View, Image Snapshot, Playback, Digital PTZ, System Configurations
Applications
- Software Supported - GV-Control Center (V4.2.0 or later), GV-Edge Recording Manager Windows Version (V2.3.0 or later), GV-ASManager (V.6.0.2.0 or later)
- Smart Device Access - GV-Eye for iOS and Android (V3.0.0 or later)
