GEOVISION 84-PT22000-001U / GV-PT220D 2M WDR, IR, Pan Tilt IP Cam
Information
- GV-PT220D 2M WDR,IR,PAN TILT I
- Gv-Pt220d 2M Wdr,Ir,Pan Tilt Ip Cam
- IP Bullet Cameras
IP Cameras - 999999424493
Details

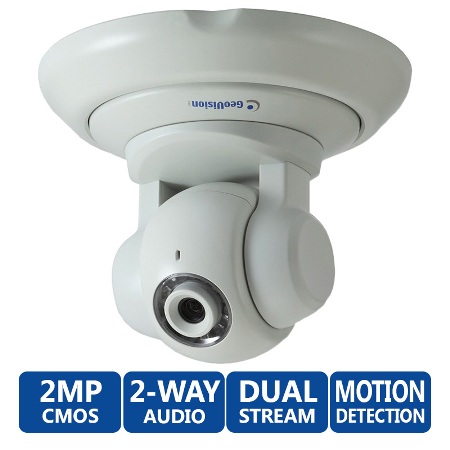

The GV-PT220D is an indoor pan and tilt camera that is designed to monitor a wide surveillance area. The camera supports remote pan and tilt control and is capable of storing pre-established panning/tilting movements and points on live view for immediate monitoring. Equipped with IR LEDs and IR-cut filter, the camera provides excellent image quality in the dark.
Features
- 2 megapixel progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Pan and tilt (Pan: -175° ~ 175°; Tilt: -45° ~ 90°)
- Input-triggered Preset points
- One sensor input and alarm output
- Built-in / external microphone
- Built-in Micro SD card slot (SDHC / SDXC) for local storage
- DC 12 V / AC 24 V / PoE
- Day and night function (with removable IR-cut filter)
- Intelligent IR
- Wide Dynamic Range (WDR)
- 2-way audio
- Motion detection
- Defog
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Information
- GV-PT220D 2M WDR,IR,PAN TILT I
- Ordering Part No. 110-PT2200-0000
- SKU 84-PT22000-001U
- GV-PT220D 2M Wdr,Ir,Pan Tilt Ip Cam
- IP Bullet Cameras
IP Cameras - 999999424493
Details
The GV-PT220D is an indoor pan and tilt camera that is designed to monitor a wide surveillance area. The camera supports remote pan and tilt control and is capable of storing pre-established panning/tilting movements and points on live view for immediate monitoring. Equipped with IR LEDs and IR-cut filter, the camera provides excellent image quality in the dark.
Features
- 2 megapixel progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Pan and tilt (Pan: -175° ~ 175°; Tilt: -45° ~ 90°)
- Input-triggered Preset points
- One sensor input and alarm output
- Built-in / external microphone
- Built-in Micro SD card slot (SDHC / SDXC) for local storage
- DC 12 V / AC 24 V / PoE
- Day and night function (with removable IR-cut filter)
- Intelligent IR
- Wide Dynamic Range (WDR)
- 2-way audio
- Motion detection
- Defog
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Quick Overview
- 2 megapixel progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Pan and tilt (Pan: -175° ~ 175°; Tilt: -45° ~ 90°)
- Input-triggered Preset points
Geovision GV-PT220D 1080P HD Indoor Pan/Tilt IP Security Camera Specifications
- Image Sensor: 1/2.5" progressive scan CMOS
- Picture Elements: 1920 (H) x 1080 (V)
- Minimum Illumination Color: 0.15 Lux B/W, 0.10 Lux IR ON, 0 Lux
- Shutter Speed: Automatic, Manual (1/5 ~ 1/8000 sec.)
- White Balance: Automatic, Manual (2800K ~ 8500K)
- Gain Control: Automatic
- S/N Ratio: 45 dB
- BLC: Yes
- Lens Megapixel: Yes
- Day/Night: Yes (with removable IR-cut filter)
- Iris: Fixed
- Focal Length: 4.0 mm
- Maximum Aperture: F/1.5
- Lens Mounting: M12, Pitch 0.5 mm
- Image Format: 1/2.5"
- Operation Focus: Manual (w/lock)
- Zoom: Fixed
- Iris: Fixed IR
- LED Quantity: 10 IR LEDs
- Max. IR Distance: 15 m (50 ft.)
- Operation Video Compression: H.264, MJPEG
- Main Stream 4:3: 1600 x 1200, 1280 x 960, 640 x 512, 320 x 256, 16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252, 5:4 1280 x 1024, 640 x 512, 320 x 256, Sub Stream 4:3 640 x 480, 320 x 240, 16:9 640 x 360, 448 x 252, 5:4 640 x 512, 320 x 256
- Frame Rate: 30 fps at 1920 x 1080 *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
- Image Setting: Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N sensitivity, Backlight Compensation, WDR, Defog
- Audio Compression: G.711
- Two-way Audio: Yes
- Sensor Input: 1 Input (Dry Contact)
- Alarm Output: 1 Output
- Interface: 10/100 Ethernet
- Protocol: HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
- Temperature Detector: Yes
- Pan: -175° ~ 175°
- Tilt: -45° ~ 90°
- Power: 2-pin terminal block, PoE
- Ethernet: Ethernet (10/100 Base-T), RJ-45
- Audio: 1 In (Using a built-in or an externally connected microphone), 1 Out (Stereo phone jack, 3.5 mm / 0.14”)
- Local Storage: Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)
- Digital I/O: 3-pin terminal block (pitch 2.5 mm / 0.1“)
- LED Indicator: 2 LEDs-Power and Status
- Environment Temperature: 0°C ~ 50°C (32°F ~ 122 °F)
- Humidity: 10% to 90% (no condensation)
- Power Source: 12V DC / 24V AC / PoE
- Maximum Power Consumption: 12.5 W (max. 1.25A at 12V DC)
- Regulatory: CE, FCC, C-Tick, RoHS compliant
- PoE Standard: IEEE 802.3af Power over Ethernet / PD
- PoE Power Supply Type: End-Span PoE
- Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
- Installation Management -Web-based configuration
- Maintenance: Firmware upgrade through Web Browser or Utility
- Access from Web Browser: Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Text Overlay
- Language: Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
- Network Storage: GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
- Smart Device Access: GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch, GV-Eye HD for iPad Live
- Viewing: IE, mobile phone
- CMS Server support: GV-Center V2, GV-VSM, GV-Control Center
- ManufacturerGeovision
- UPC999999424493
- Shipping Lead TimeShips within 1 to 12 Hours
- WarrantyGeoVision Direct Warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
