Geovision 84-FD220-D02U GV-FD220D 2MP Day/Night IP Dome Camera
        • Geovision 84-FD220-D02U GV-FD220D 2MP Day/Night IP Dome Camera
        • Geovision 84-FD220-D02U GV-FD220D 2MP Day/Night IP Dome Camera

        Geovision 84-FD220-D02U GV-FD220D 2MP Day/Night IP Dome Camera

        Geovision
        SKU: 84-FD220-D02U FD220D

        Information

        • GV-FD220D/2MP/IR/INDR-DOM/3-9M
        • Gv-Fd220d H.264, 2M Ir Fixed Ip Dome, Us (With Var
        • MP Fixed Domes Cameras
          Megapixel Cameras
        • 4717095100510

        Details

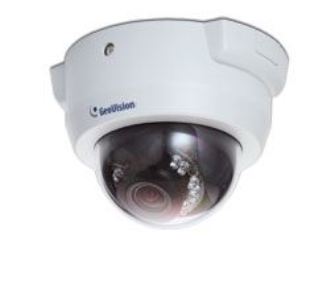

        The FD220D is an indoor dome designed with 3-axis mechanism for easy and flexible installation. The megapixel camera has a 1/2.5" progressive scan CMOS image sensor. The FD220D also features IR LED for infrared illumination during low light conditions. In addition, the 3 - 9 mm varifocal lens allows adjustment to better fit the field of view for your surveillance application. The FD220D is capable of capturing an HD video image of 1920 x 1080 (2.0 megapixel) resolution at 30 frames per second for real time recording.

        Features

        • 1/2.5" progressive scan CMOS Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
        • Up to 30 fps at 1920 x 1080
        • 3-axis mechanism (pan / tilt / roll) Varifocal megapixel lens
        • Intelligent IR
        • 2-way audio
        • AAC and G.711 audio codec
        • One sensor input and alarm output
        • TV-out support
        • Micro SD/SDHC Card Slot
        • DC 12V / AC 24V / PoE
        • Motion detection
        • Tampering alarm
        • Privacy mask
        • Removable IR-cut filter for Day/Night function
        • IP address filtering
        • Supports iPhone, iPad, Android & 3GPP
        • 28 languages on Web interface
        • No SD/SDHC card slot & local storage function for Argentina
          • 37% less
          Market price:$813.18 save $299.59
        • $513.59

        OR

        Information

        • GV-FD220D/2MP/IR/INDR-DOM/3-9M
        • Gv-Fd220d H.264, 2M Ir Fixed Ip Dome, Us (With Var
        • MP Fixed Domes Cameras
          Megapixel Cameras
        • 4717095100510

        Details

        The FD220D is an indoor dome designed with 3-axis mechanism for easy and flexible installation. The megapixel camera has a 1/2.5" progressive scan CMOS image sensor. The FD220D also features IR LED for infrared illumination during low light conditions. In addition, the 3 - 9 mm varifocal lens allows adjustment to better fit the field of view for your surveillance application. The FD220D is capable of capturing an HD video image of 1920 x 1080 (2.0 megapixel) resolution at 30 frames per second for real time recording.

        Features

        • 1/2.5" progressive scan CMOS Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
        • Up to 30 fps at 1920 x 1080
        • 3-axis mechanism (pan / tilt / roll) Varifocal megapixel lens
        • Intelligent IR
        • 2-way audio
        • AAC and G.711 audio codec
        • One sensor input and alarm output
        • TV-out support
        • Micro SD/SDHC Card Slot
        • DC 12V / AC 24V / PoE
        • Motion detection
        • Tampering alarm
        • Privacy mask
        • Removable IR-cut filter for Day/Night function
        • IP address filtering
        • Supports iPhone, iPad, Android & 3GPP
        • 28 languages on Web interface
        • No SD/SDHC card slot & local storage function for Argentina

        Specifications

        Camera

        Image Sensor

        1/2.5" progressive scan CMOS

        Picture Elements

        1920 (H) x 1080 (V)

        Minimum Illumination

        Color

        1 Lux (1/30 sec), 0.5 Lux (1/5 sec.)

        B/W IR ON

        0 Lux

        Shutter Speed

        Automatic, Manual (1/5 ~ 1/8000 sec.)

        White Balance

        Automatic, Manual (2800 ~ 8500K)

        Gain Control

        Automatic

        S/N Ratio

        45 dB

        BLC

        Yes

        Lens

        Megapixel

        Yes

        Day/Night

        Yes (with removable IR‐cutfilter)

        Lens Type

        Varifocal

        Focal Length

        3 ~ 9 mm

        Maximum Aperture

        F/1.3 ± 5%

        Mount

        Ø14mm

        Image Format

        1/3"

        Operation

        Focus

        Manual (w /lock)

        Zoom

        		Manual (w /lock)

        Iris

        		DC drive

        Max. Torque (Focus/Zoom Screws)

        		0.049 N.m
        IR LED Quantity10 IR LEDs
        Max. IR Distance15m (50 ft.)

        Operation

        Video Compression

        H.264, MJPEG

        Video Streaming

        Dual streams from H.264 and MJPEG

        Frame Rate

        30 fps at 1920 x 1080

        * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).

        Image Setting

        Brightness, Contrast, Sharpness,Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog

        Audio Compression

        G.711

        Two‐way Audio

        Yes

        Sensor Input1 Input (Dry Contact)
        Alarm Output1 Output (200mA 5VDC)

        Video Resolution

        Main Stream

        4:3

        1600 x 1200, 1280 x 960, 640 x 480, 320 x 240

        16:9

        1920 x 1080, 1280 x 720, 640 x 360, 448 x 252

        5:4

        1280 x 1024, 640 x 512, 320 x 256

        Sub Stream

        4:3

        640 x 480, 320 x 240

        16:9

        640 x 360, 448 x 252

        5:4

        640 x 512, 320 x 256

        Network

        Interface

        10/100 Ethernet

        Protocol

        HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF

        Mechanical

        Camera Angle Adjustment

        		Pan0° ~ 350°
        Tilt10° ~ 90°
        Rotation0° ~ 340°

        Temperature Detector

        Yes

        Connectors

        Power

        2‐pin terminal block, PoE

        Ethernet

        Ethernet (10/100 Base‐T), RJ‐45

        Audio

        1 Inmicrophone phone jack, 3.5 mm (0.14")

        1 Out Stereo phone jack, 3.5 mm (0.14")

        Digital I/O

        		3‐pin terminal block, pitch 2.5 mm (0.1")
        Auto IrisDC drive

        Local Storage

        Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)

        TV‐OutBNC connector (640 x 480 resolution)

        LED Indicator

        2 LEDs: Power, Status

        General

        Environment Temperature

        0 °C ~ 50 °C (32 °F ~ 122 °F)

        Humidity

        10% to 90% (no condensation)

        Power Source

        12VDC / 24V AC / PoE

        Max. Power Consumption

        12 W

        Dimensions

        156 x 110 mm (6.14 x 4.33")

        Weight

        580 g (1.28 lb)

        Vandal ResistanceIK7

        Regulatory

        CE, FCC, C‐Tick, RoHS compliant

        Power over Ethernet

        PoE Standard

        IEEE 802.3af Power over Ethernet/ PD

        PoE Power Supply Type

        End‐Span

        PoE Power OutputPer Port 48V DC, 350mA. Max. 15.4watts

        Web Interface

        Installation Management

        Web‐based configuration

        Maintenance

        Firmware upgrade through Web Browser or Utility

        Access from Web Browser

        Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
