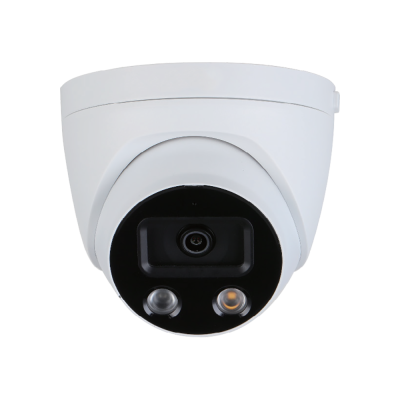

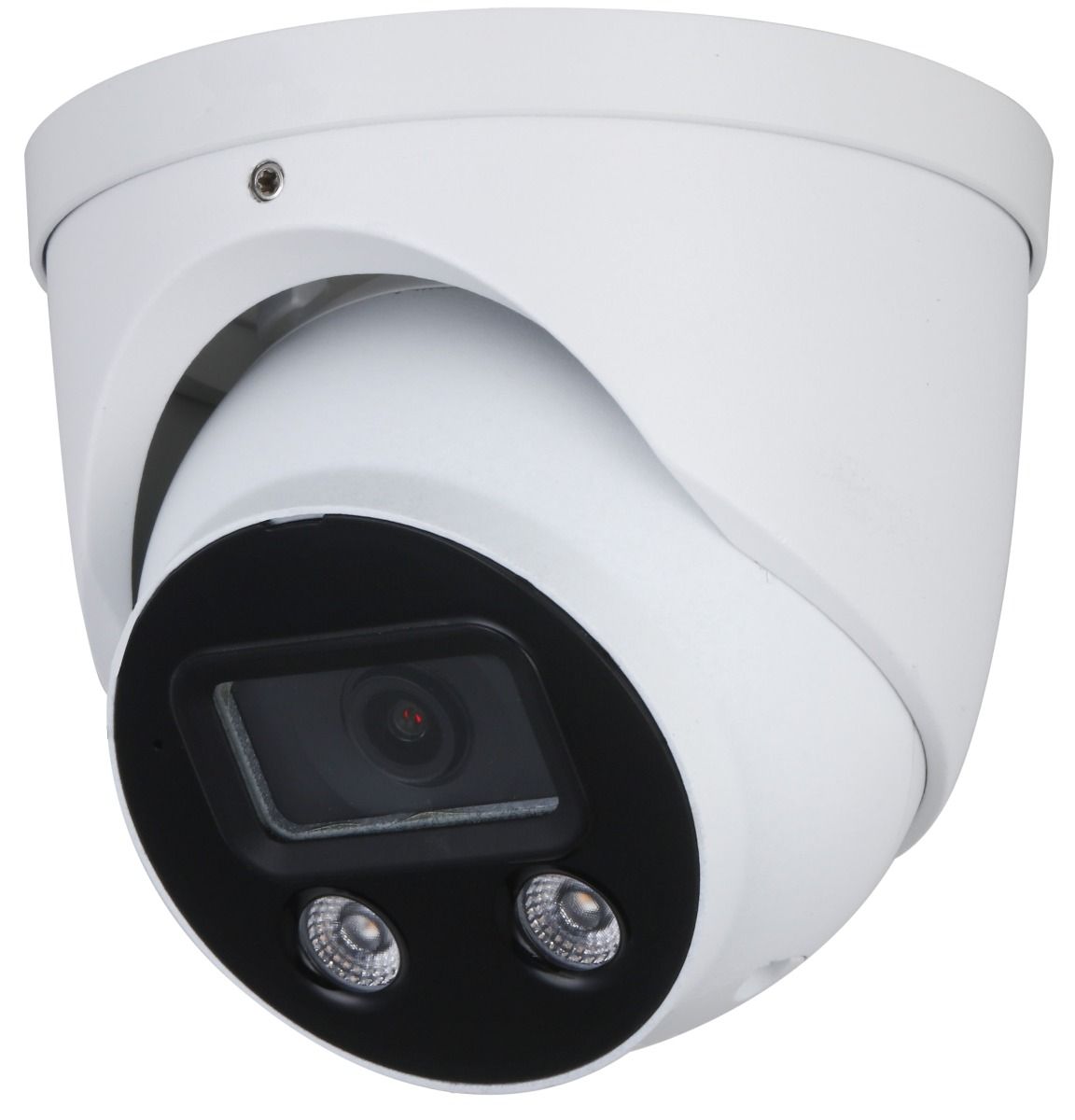

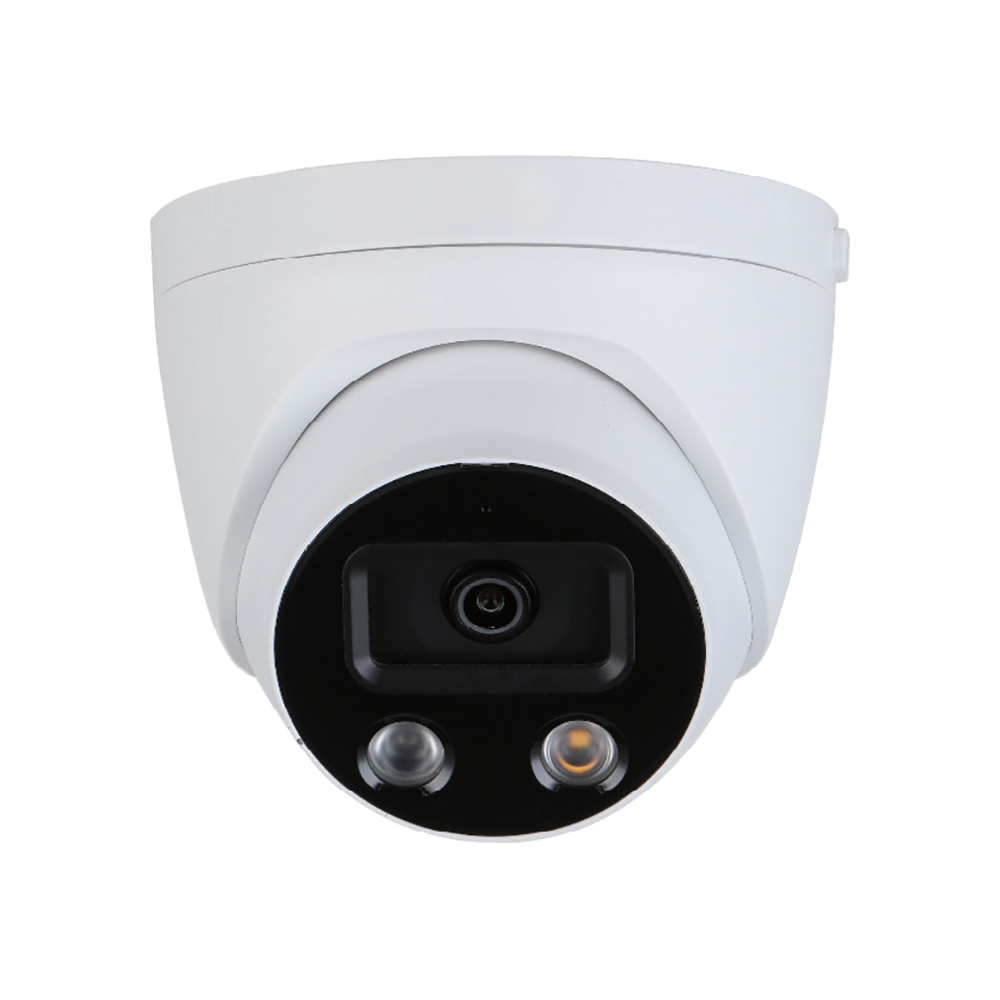

iMaxCamPro HNC5I351H-ASEPV/28 | 5MP Eyeball Starlight Long IR Network Security Camera

iMaxCamPro
SKU: WEC5I351H-ASEPV/28

Turret Networking / Internet Protocol Security Camera (IPC), 5MP@20fps, Fixed 2.8mm 1/2.7", IR(98ft), True WDR, Starlight, video content analytics (VCA) for security IP camera: Line Crossing, Intrusion, Object detection, Scene change. Perimeter Protection (PP) Tripwire; intrusion; fast-moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection, People Counting (PC): Support the counting of entering a number, leave a number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of numbers in the area and 4 rules configuration. Count a number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count the number of people or stay time and link alarm, Active Deterrence, Siren + White LED, Built-in Mic&Speaker, Audio/ Alarm, Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD)up to 256 GB, ePOE. UL Listed professional surveillance products.

Features

  • 1/2.7” 5Megapixel progressive scan CMOS
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
  • WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • 1/1 Alarm in/out, 1/1 audio in/out (Built-in MIC, Built-in Speaker). Alarm Event:No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering; Defocus Detection;scene changing;intrusion;tripwire;aban doned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management;White light alarm;Voice alarm (11 Built-in voices, and custom voices are supported
  • Max. IR LEDs Length 50 m
  • Micro SD memory, IP67
  • Event Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
  • General Intelligence: Object Abandoned/Missing
  • Heat Map: Yes

The Diamond Series is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal, and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, the Diamond Series provides precise, reliable, and comprehensive AI solutions for verticals.

Image Sensor1/2.7” 5Megapixel progressive scan CMOS
Image Size2592 x 1944
RAM/ROM512 MB/128 MB
Electronic ShutterAuto/Manual, 1/3 s–1/100000 S
Minimum Illumination0.005 Lux@F1.6
S/N RatioMore than 56dB
Smart IRSupport
IR DistanceDistance up to 50 m (164ft)
IR On/Off ControlAuto/Manual
Focal Length2.8mm
Angle of ViewH: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°
Max. ApertureF1.6
Close Focus Distance0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft)
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.856m(184ft)22m(72ft)11m(36ft)6m(20ft)
3.6mm80m(262ft)32m(105ft)16m(52ft)8m(26ft)
Pan / Tilt / RotationPan: 0 ̊–360 ̊; Tilt: 0 ̊–78 ̊; Rotation: 0 ̊–360 ̊
Video CompressionH.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Streaming Capability3 streams
Video Resolution2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Video Frame Rate
  • Main Stream: 2592 × 1944 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps), 1920 × 1080 (1 fps–50/60 fps)
  • Sub Stream: D1 (1 fps–20/30 fps), D1 (1 fps–50 fps)
  • Third Stream: 1080P (1 fps–17 fps)
Video BitrateCBR/VBR
Day / NightAuto (ICR)/Color/B/W
Wide Dynamic Range120dB
BLC ModeBLC/HLC/WDR (120 dB)
HLCYes
White BalanceAuto/natural/street lamp/outdoor/manual/custom
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
DefogYes
FlipOff/On (4 Zone, Rectangle)
MirrorOff/On
Privacy MaskingOff/On (4 Zone, Rectangle)
Audio CompressionG.711a, G.711Mu, G.726, AAC, G.723
IPC AlarmAlarm Event No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;aban doned object;missing object;fast moving;parking detection;loiteri
Alarm In1 channel In: 5mA 5V DC
Alarm Out1 channel Out: 300mA 12V DC
General IntelligenceObject Abandoned/Missing
General FunctionEvent Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
AI Perimeter ProtectionTripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Advanced AI FunctionsSupport the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support
Network ProtocolIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP
;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP
;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Network InteroperabilityONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Network Max. Users20
StorageNAS;FTP;SFTP;Dahua Cloud;Micro SD card 256 GB
Storage Card256GB
Web ViewerIE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, DMSS
MobileiPhone, Android
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Interface1/1 channel In/Out, Built-in MIC, Built-in Speaker
Power SupplyDC 12V (±30%), PoE (802.3af)
Power Consumption<7.2W
Operating Temperature-40°C to +60°C (-40°F to +140°F)/Less than 95% RH
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
DimensionsΦ122 mm × 113.5 mm (4.80” × 4.47”)
WeightNet Weight 0.49 kg (1.08 lb) Gross Weight 0.65 kg (1.43 lb)
    • 46% less
    Market price:$668.00 save $310.00
  • $358.00
Qty:
OR

Turret Networking / Internet Protocol Security Camera (IPC), 5MP@20fps, Fixed 2.8mm 1/2.7", IR(98ft), True WDR, Starlight, video content analytics (VCA) for security IP camera: Line Crossing, Intrusion, Object detection, Scene change. Perimeter Protection (PP) Tripwire; intrusion; fast-moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection, People Counting (PC): Support the counting of entering a number, leave a number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of numbers in the area and 4 rules configuration. Count a number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count the number of people or stay time and link alarm, Active Deterrence, Siren + White LED, Built-in Mic&Speaker, Audio/ Alarm, Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD)up to 256 GB, ePOE. UL Listed professional surveillance products.

Features

  • 1/2.7” 5Megapixel progressive scan CMOS
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
  • WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • 1/1 Alarm in/out, 1/1 audio in/out (Built-in MIC, Built-in Speaker). Alarm Event:No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering; Defocus Detection;scene changing;intrusion;tripwire;aban doned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management;White light alarm;Voice alarm (11 Built-in voices, and custom voices are supported
  • Max. IR LEDs Length 50 m
  • Micro SD memory, IP67
  • Event Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
  • General Intelligence: Object Abandoned/Missing
  • Heat Map: Yes

The Diamond Series is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal, and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, the Diamond Series provides precise, reliable, and comprehensive AI solutions for verticals.

Image Sensor1/2.7” 5Megapixel progressive scan CMOS
Image Size2592 x 1944
RAM/ROM512 MB/128 MB
Electronic ShutterAuto/Manual, 1/3 s–1/100000 S
Minimum Illumination0.005 Lux@F1.6
S/N RatioMore than 56dB
Smart IRSupport
IR DistanceDistance up to 50 m (164ft)
IR On/Off ControlAuto/Manual
Focal Length2.8mm
Angle of ViewH: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°
Max. ApertureF1.6
Close Focus Distance0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft)
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.856m(184ft)22m(72ft)11m(36ft)6m(20ft)
3.6mm80m(262ft)32m(105ft)16m(52ft)8m(26ft)
Pan / Tilt / RotationPan: 0 ̊–360 ̊; Tilt: 0 ̊–78 ̊; Rotation: 0 ̊–360 ̊
Video CompressionH.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Streaming Capability3 streams
Video Resolution2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Video Frame Rate
  • Main Stream: 2592 × 1944 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps), 1920 × 1080 (1 fps–50/60 fps)
  • Sub Stream: D1 (1 fps–20/30 fps), D1 (1 fps–50 fps)
  • Third Stream: 1080P (1 fps–17 fps)
Video BitrateCBR/VBR
Day / NightAuto (ICR)/Color/B/W
Wide Dynamic Range120dB
BLC ModeBLC/HLC/WDR (120 dB)
HLCYes
White BalanceAuto/natural/street lamp/outdoor/manual/custom
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
DefogYes
FlipOff/On (4 Zone, Rectangle)
MirrorOff/On
Privacy MaskingOff/On (4 Zone, Rectangle)
Audio CompressionG.711a, G.711Mu, G.726, AAC, G.723
IPC AlarmAlarm Event No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;aban doned object;missing object;fast moving;parking detection;loiteri
Alarm In1 channel In: 5mA 5V DC
Alarm Out1 channel Out: 300mA 12V DC
General IntelligenceObject Abandoned/Missing
General FunctionEvent Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
AI Perimeter ProtectionTripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Advanced AI FunctionsSupport the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support
Network ProtocolIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP
;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP
;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Network InteroperabilityONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Network Max. Users20
StorageNAS;FTP;SFTP;Dahua Cloud;Micro SD card 256 GB
Storage Card256GB
Web ViewerIE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, DMSS
MobileiPhone, Android
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Interface1/1 channel In/Out, Built-in MIC, Built-in Speaker
Power SupplyDC 12V (±30%), PoE (802.3af)
Power Consumption<7.2W
Operating Temperature-40°C to +60°C (-40°F to +140°F)/Less than 95% RH
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67
DimensionsΦ122 mm × 113.5 mm (4.80” × 4.47”)
WeightNet Weight 0.49 kg (1.08 lb) Gross Weight 0.65 kg (1.43 lb)
    • SKU
      WEC5I351H-ASEPV/28
    • Weight
      1.7 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    Turret
  • Camera Signal
    IP
  • Camera Resolution
    5 Megapixel
  • Lens Size
    2.8mm
  • Optical Zoom
    Fixed Lens
  • Shipping Lead Time
    Ships Same Day
  • Lens Type
    WDR
  • Infrared Distance
    50m (164 ft)
