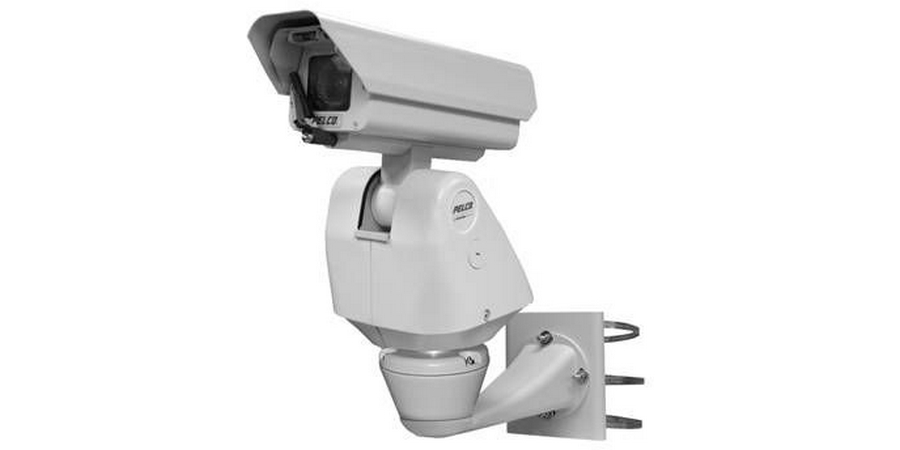

Esprit ES40P Series SE Standard And Pressurized Positioning NTSC Camera With Standard With IOC, 768 X 494, 3.3 - 119 mm Optical Lens, Day/Night, 1/4 Progressive CCD Sensor Or 2:1 Interlace, Wall Mount


Availability: In Stock
SKU: ES40P36-5W
Product #: 92604


  • Receiver, pan/tilt and enclosure with an Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC), NTSC/PAL
  •  Autofocus, motion detection, image enhancement and electronic image stabilization; Integrated window wiper with config urable delay and shut-off (ES41 Models)
  •  Preset positioning accuracy +/-0.1, variable speed pan: 0.1 deg to 100 deg/sec with proportional pan; Window blanking, multishaped; Internal scheduling clock
  •  On-screen compass, tilt and zoom display; Autotracking; tilt range of +36 deg to -85 deg from horizontal; Password protection
  •  Digital position and zoom control and feedback using Pelco D protocol; Integral camera enclosure; Operational in 145 kph (90 mph) winds, can withstand wind velocity up to 209 kph (130 mph)
  •  Easy to install: quick and simple electrical connections; 850 nm and 950 nm active IR illumination focus algorithms; 256 configurable presets with labels
  •  Auto, frame and random scan; Configurable power-up mode, park, manual limit stops (Pan) and scan limit stops (Pan); Patterns: up to 8, on-screen, user-defined configurable patterns; Includes pan, tilt, zoom, and preset functions
  •  Proportional pan/tilt: continually decreases pan/tilt speeds in proportion to depth of zoom; 8 zones (configurable in size) can be labeled with up to 20 characters each; window blanking: Up to 8, four-sided, Uuser-defined shapes
  •  10 Inch integrated enclosure with pre-assembled IOP camera; sun shroud, heater/window defroster, and insulation all stand ard; 1 auxiliary output; electronic image stabilization; image enhancement
  •  Software update and setup; Configurable locations of labels and on-screen displays; Configurable zoom speeds; Low Lux noise reduction (reduces noise in low light)
  •  36x optical, 12x digital zoom; Automatic with manual override focus; AC line lock, phase adjustable using remote control, V-Sync
  •  Integrated electronic image stabilization; Stainless steel hardware
  •  Replacement pressurized Integrated Optics Cartridge (IOC) IOC-36 Esprit high resolution day/night camera and lens module, 36X, NTSC format


Form Factor BOX
Lens Type FIXED
Position Type PAN-TILT ZOOM
Resolution 768 X 494
Signal Process ANALOG
