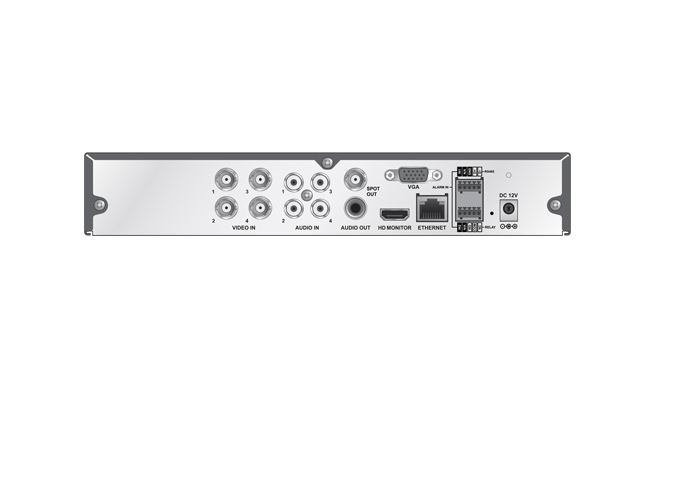

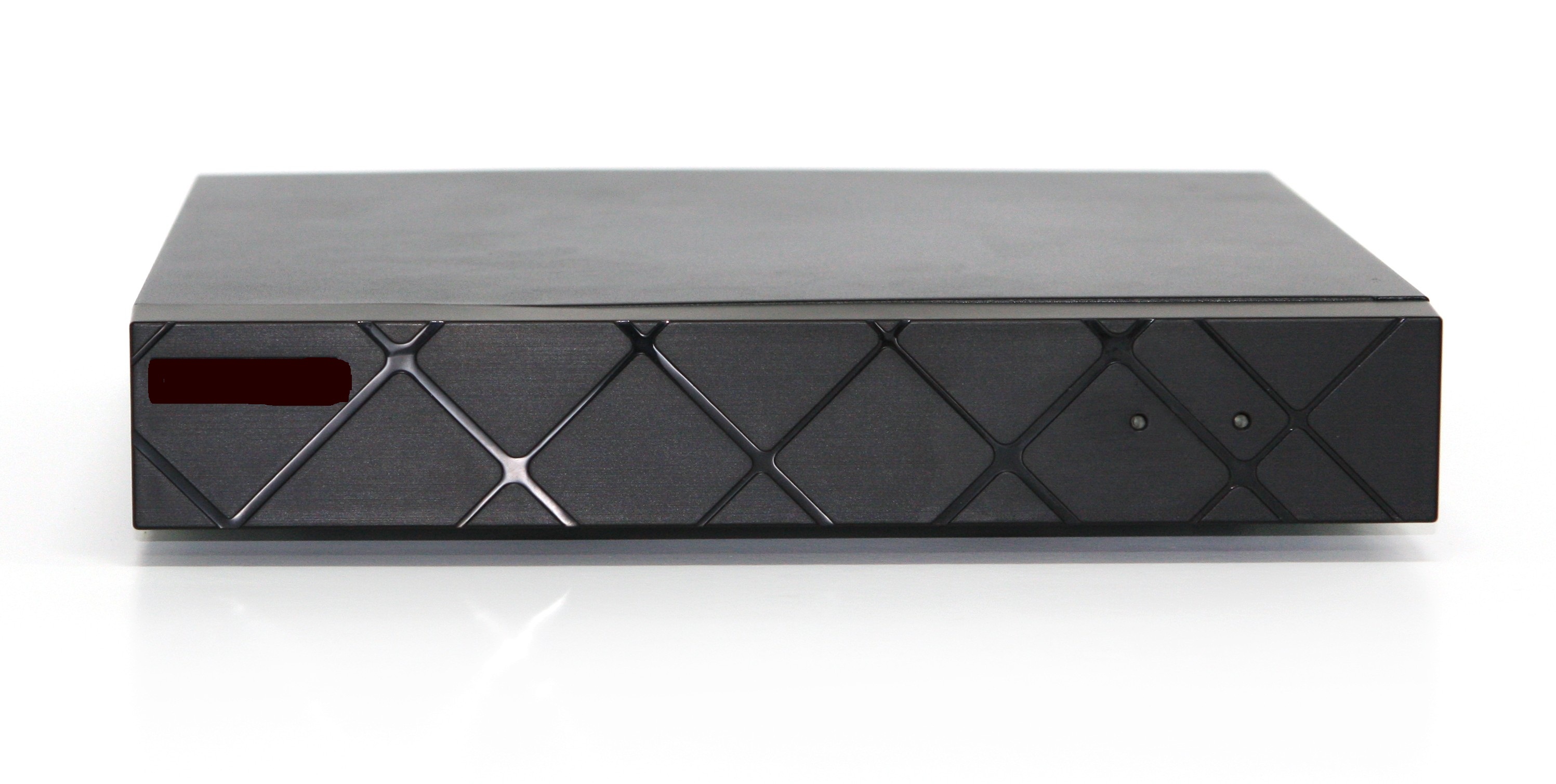

EL4 SERIES , 4CH, All In One - Supports TVI/AHD/CVI/CVBS


$238.00


Availability: In Stock
List Price: $476.00
SKU: WECEL4-041-I
Product #: 112640
Manufacturer:

Quantity

- Supports H.264 codec
- Supports Dual display
- Up to Max. 5M recording
- All In One : Supports TVI/AHD/CVBS/IP
- Supports Various IP Camera by ONVIF
- Supports VA : Various Video Analytics function
- Supports CVBS Spot Monitor
- HD monitor and VGA Video Output
- Supports P2P
- Compact Size & easy to install the HDD

CHANNELs 4CH
VIDEO INPUT SIGNAL SD(960) / AHD,TVI(HD,FHD)/ 3,4,5M
IP HYBRID MAX. 4CH IP, 2MP@30
MAIN MONITOR HDMI / VGA
SPOT OUT 1(CVBS)
LOOP THROUGH no
AUDIO INPUT SIGNAL 4CH(10KOhm, 2.8Vpp)
OUTPUT SIGNAL 1CH(600Ohm, 2.8Vpp)
CODEC G.711 ulaw
RECORDING CODEC H.264
REC. RATE [Analog]
 Upto 80FPS@1296x1944(5M Half)
 Upto 48FPS@2592x1944(5M)
 Upto 120FPS@1344x1520(4M Half)
  Upto 120FPS@1280x1440(4M Half)
 Upto 60FPS@2688x1520(4M)
  Upto 60FPS@2560x1440(4M)
  Upto 120FPS@1024x1536(3M half)
 Upto 72FPS@1920x1536(3M)
  Upto 120FPS@ FHD
 [IP]
 Upto 120FPS@ FHD
Up to 120FPS@ 2CIF
Up to 120FPS@ CIF
REC. RESOLUTION CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M
ALARM I/O ALARM INPUT 2CH
ALARM OUT 1CH(RELAY)
STORAGE INTERNAL HDD 1EA
EXTERNAL STORAGE no
INTERNAL ODD no
INTERFACE USB 2x front
RS-485 1
RS-232 -
LAN 1x 10/100
REMOTE CONTROL YES
POWER POWER SUPPLY 12V/2A
POWER CONSUMPTION 6W max. without HDD
ENVIROMENT TEMPERATURE / HUMINITY 0ºC ~ 40ºC (32ºF~104ºF) / 10 ~ 90% NC
MONITORING DISPLAY RATE [Analog]
 Upto 80FPS@1296x1944(5M Half)
 Upto 48FPS@2592x1944(5M)
 Upto 120FPS@1344x1520(4M Half)
  Upto 120FPS@1280x1440(4M Half)
 Upto 60FPS@2688x1520(4M)
  Upto 60FPS@2560x1440(4M)
  Upto 120FPS@1024x1536(3M half)
 Upto 72FPS@1920x1536(3M)
  Upto 120FPS@ FHD
 [IP]
 Upto 120FPS@ FHD
DISPLAY RESOLUTION 1920x1080(HD Display, VGA), Dual Display (Mirroring)
DISPLAY MODE 1,4
SEQUENCE Programmable Sequence
DIGITAL ZOOM YES
COVERT CAMERAS YES
CAMERA COLOR CONTROL YES (CONTRAST, COLOR, TINT, BRIGHTNESS)
PTZ CAMERA YES
RECORD SCHEDULE METHOD DAILY/WEEKLY EACH HOUR
PROGRAMMABLE FOR CH YES
MANUAL RECORDING YES
POST-EVENT RECORDING 5/10/15/20/30/60/180 SEC
EVENT RECORDING YES
PRE-EVENT RECORDING 0/1/2/3/4/5/10/15 SEC
PANIC RECORDING YES
EVENT LOGGING YES (MOTION,ALARM,PANIC,VLOSS)
SYSTEM LOGGING YES (SYSTEM ON/OFF, TIME CHANGED, H.DD/EMAIL OPERATIONS, SYSYEM OPERATIONS)
SETUP LOGGING YES (SETUP CHANGED)
REMOTE LOGGING YES (WHO, IP ADDRESS, REMOTE OPERATIONS)
SEARCH
 & PLAYBACK
PLAYBACK RATE Same as Recording Rate
PLAYBACK SPEED x1, x2, x4, x8, x16, x32, x64
SEARCH TYPE CALENDER / EVENT / TIME / TUHMBNAIL
ARCHIVING ARCHIVING DEVICES USB Memory, FTP
REMOTE ARCHIVING YES (WEB RA, VMS, FTP)
SNAPSHOT ARCHIVING YES
DATA RESERVING YES
RESERVED DATA LIST MANAGEMENT YES
BACKUP DATA FORMAT AVI, RAW
WARTERMARK YES
WARTERMARK VARIFICATION YES
ARCHIVED DATA PLAYBACK YES
NETWORK MAX. CONNECTIONS 32 USERS
DHCP / DDNS YES
TRANSMISSTION RATE MAX 120 FPS
BANDWIDTH CONTROL YES
WEB BROWSER ACCESS YES
REMOTE FUCNTION REMOTE MONITORING / PLAYBACK / ARCHIVING /
SETUP / PTZ CONTROL / HEALTH CHECK
VMS SUPPORT YES
TWO-WAY AUDIO YES
PC BASED REMOTE AGENT YES
SMART PHONE APPLICATION YES (iOS, Android)
WEB BASED REMOTE AGENT YES (WINDOWS®, LINUX, MAC OS/X®, ETC.)
SDK YES (HTTP, RTSP Protocol Base)
AUTO ROUTER PORT FORWARDING YES
DUAL STREAMING YES
FTP CLIENT YES (For ARCHIVING)
E-MAIL YES (SMTP CLIENT)
AUTHORITY CONTROL ADMIN / MANAGER / USER
PROTOCOLS RTP, RTSP, RTCP, SMTP, NTP, HTTP, FTP, DDNS, DHCP, Upnp
(Router Port Forwading)
EVENT TYPE VIDEO LOSS EVENT / EVENT NOTIFICATION / EVENT POPUP
/ MOTION DETECTION / MOTION SENSOR AREA
