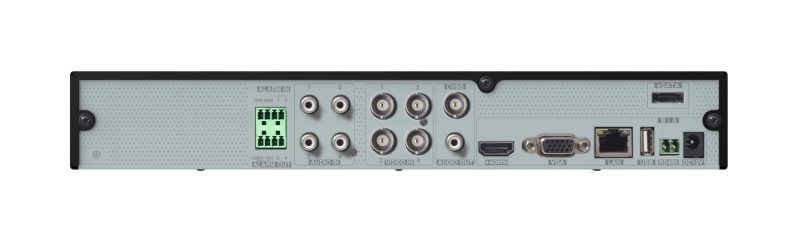

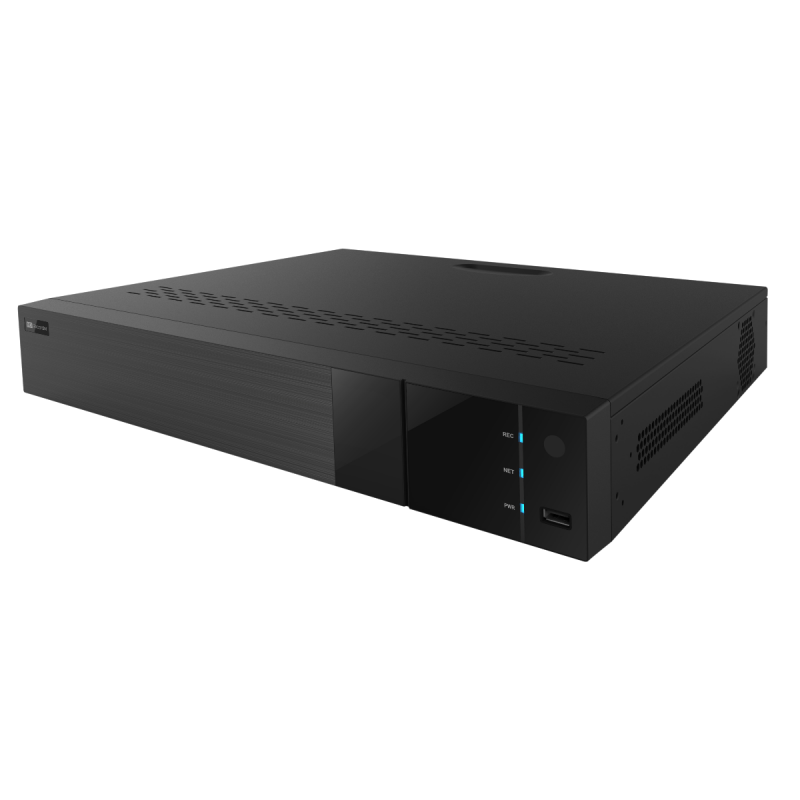

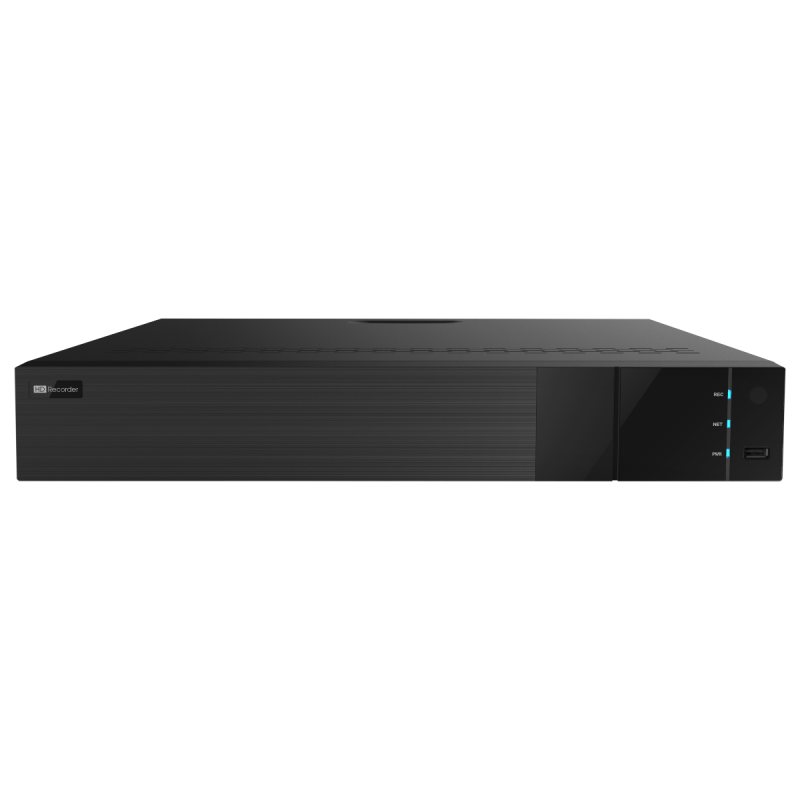

ED8004H5-F | H.265 4CH 4K Titanium TVI/AHD/CVI/960H/IP 5-IN-1 DVR


$142.00


Availability: In Stock
List Price: $284.00
SKU: WECED8004H5-F
Product #: 102788
Manufacturer:

Quantity

  • 4CH TVI / AHD video input, support 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH DVR support 2 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P recording
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback : 4CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • HDMI 4K output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
More Information
System Compression H.265 High profile
Main Processor Embedded Processor
Operating System Embedded Linux
Video Compatibility HD-TVI / AHD / HD-CVI
Max. Video Channels 4CH
Video In BNC x 4
IP Camera Input IPC x 2
IPC Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
IPC Frame Rate 25fps ( PAL ) / 30fps ( NTSC )
Video Interface HDMI/VGA/CVBS
Video Resolution TVI/AHD : 8 /5MP/4MP/3MP/1080P/720P/WD1 CVI : 4MP/3MP/1080P/720P/WD1
Multi-Screen Display N/A
OSD Yes
Audio In 4CH, RCA
Audio Out 1CH, RCA
2 Way Audio Take up channel one as an audio input
Recording Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite /1080P/720P/WD1
Recording Frame Rate

4K@6fps/7fps (PAL / NTSC)
5MP@12fps (PAL / NTSC)
5MP Lite@20fps (PAL / NTSC)
4MP / 3MP@12fps(PAL) / 15fps (NTSC)
4MP Lite / 1080P / 720P / WD1@25fps (PAL) / 30fps (NTSC)

Recording Encode N/A
Recording Quality N/A
Recording Mode Manual, timer, motion
Recording File Management N/A
Playback Channels 4CH
Playback Search Time slice / time / event / tag search
Playback Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback Function Play, pause, FF, FB, digital zoom, etc
Alarm In 4CH
Alarm Out 1CH
Alarm Mode Manual, motion, exception
Trigger Events Record, snap, preset, e-mail, etc.
Network Bandwidth 40/40Mbps (access/transfer)
Network Function TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. Users N/A
Mobile iPhone, Android
Cellphone Function N/A
RS485 RS485 x 1, connect to PTZ or keyboard
USB USB 2.0 × 2
remote Optional
Power Supply DC12V / 4A
Power Consumption ≤ 10W ( without HDD )
Internal HDD 1 x SATA (up to 8TB capacity for each disk),
e-SATA 1 x e-SATA
Operating Conditions -10 ~ 50 ℃,10% ~ 90% humidity
Dimensions 300mm × 248mm × 52mm
