*EASY SETUP* Complete 8 Sony CCD Dome Cameras with WEC-H264 8-Channel DVR Video Surveillance System

H.264 Complete 8 Camera Video Security Camera System - iPhone, Android, Blackberry, Google Phone, and Windows Mobile Phone Support

SKU: WEC-H264.WYCM-20S-KIT

This 8 Channel Video Package Includes:

Shipping info
We deliver worldwide
Learn more
Payment methods
Learn more
Return Policy
We accept returns
Learn more
Customer Reviews
Check out our customer Reviews
Learn more

Worldeyecam is proud to offer our H.264 DVR kit. This package not only comes with the ease of mouse control operation, but can be readily viewed from any compatible cell phone or pc application. The package is arranged with the end user in mind with every component you need for set up. You become the professional installer with our easy to use walk through guides and live tech support. The H.264 DVR brings with it all the ease of instant set up and comfort knowing your home or business is secure. Every DVR comes with state of the art technology embedded into the unit. New features include motion detection, emailed responses sent to your chosen destination. You chose the alerts and you chose the location of the cameras. What could be easier?

When you do not have time to be on site H.264 DVR gives you the control you need to monitor your business with touch of a button. Configure your system with the click of a mouse from any location with an internet connection. In today’s world of multitasking taking the guess work out security is what we do. Enable system operators to have limited control so that you know who is viewing what every moment of the day. Simple to use search options allow for quick playback of any incidents that may occur. USB ports allow for quick and easy transfer of data to any portable media device for burning to disk at a pc location.

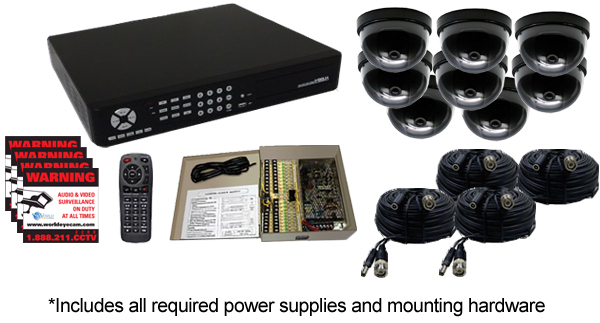

This 8 Channel Video Package Includes:

(1) WEC-H264-8CH 8 Channel H.263 Stand-Alone Digital Video Recorder ( DVR )
(8) Sony WYCM-20S Color CCD Indoor Dome Security Cameras
(1) 8 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
(8) 100' Video/Power Cables & Cable Connectors
Monitor optional

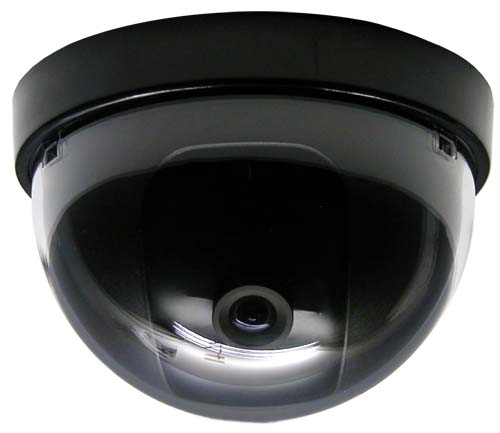

Camera Details:

Sony WYCM-20S Color CCD Indoor Dome Security Surveillance Camera

This camera is a professional, color dome camera providing a very clean surveillance install. This professional CCD dome camera provides stunning color surveillance with a very sharp picture. Over 20,000 of these domes are currently in the field. Proven performance and reliability.

**Specifications**
Resolution	420 TV Lines
Pixels	NTSC = 512(H) X 492(V)
Scanning System	2:1 Interlaced
Sync System	Internal
TV System	NTSC
Gamma	.45
White Balance	Auto White Balance
Lux Rating	1 Lux (F=1.2)
Connection	BNC video out
Power	Operates from 12V DC
Sensor Type	1/4" Sony Color CCD
CCD Shutter Speed	NTSC: 1/60th to 1/100,000th second
Duty Cycle	Rated for 24 hr. continual use
Dimensions	87mm (D) x 60mm (H)
S/N Ratio	More than 48dB
Power Consumption	60mA
Standard Lens	3.6mm (acd-20s)
Operating Temp.	-5°C ~ 40°C (23°F ~ 104°F)
Humidity	95% Max
Storage Temp.	-10°C ~ 50°C ( 14°F ~ 122°F)

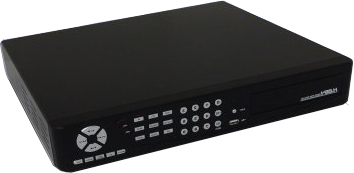

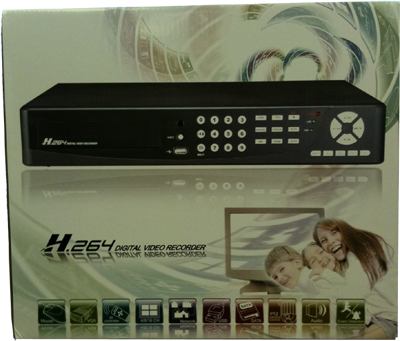

DVR Details:

8 CH Digital Video Recorder

This new technology H.264 compression is a great for customers that expect more record time on basic storage. Each camera can be configured on its own quality settings which would also help you on data management to get more recording time. H.264 compression is currently the leading DVR compression due to its high quality recording quality and minimal storage usage. This DVR is equipped with dynamic routing so that you will not need to pay additional fees for a static IP. Our back up function is very easy to use. You have a choice of a standard CD or DVD or for large scale back up you can use an external hard drive. NO ONE ELSE USES this back up methods, we are the first to implement large scale back up on stand alone DVRs. We thought that if an incident was longer than several hours, why create multiple discs when you can just put it into one. We also support mouse control which makes navigation easier than a push toggle DVR. With the all the features of email alert, remote viewing, H.264 compression, user friendly interface and high capacity recording options. This DVR is the best DVR for the price.

Features

H264 compression ideal for saving HDD space
Auto Overwrite / Loop Recording
Real-time live display
8 channel DVR: 120FPS half-D1 recording
Live display, record, backup, playback and network access at the same time
Control methods: front panel, PS/2 mouse, IR remote controller, client viewer
4 channel audio recording and playback
Supports 2 SATA HDDs
supplies 1 DVD writer (optional)
Pan / Tilt / Zoom camera control
Data backup: USB devices, DVD±RW(optional), network download
Event triggered with E-mail notification: motion detection, alarm, video loss
Internet Explorer supported for live display and playback
Digital watermark proof
Multi-language OSD: English / Polish / Spanish / Russian / Traditional Chinese / French / Turkish / German / Italian / Portuguese

Specification

Video Input	8CH BNC
Video Output	1CH BNC or VGA
SPOT Output	1CH BNC
Audio Input	4CH BNC
Audio Output	1CH RCA
Sensor	4 inputs / 1 outputs
RS-485	Pan/Tilt/Zoom camera
Mouse	PS/2 mouse
IR Remote Controller	IDE Type, ATA66, Supported HDD*1, Supports HDD Capacity over 400 GB
HDD Support	SATA HDD x 2 (Max. 1TB EA)
DVD Writer	optional
Display Division	1,4
Digital Zoom	2X
Video Compression	H264
Resolution	720x480, 720x240, 360x240
Frame Rate	60, 120, 240
Quality	Fine, Normal, Low
Record Mode	Manual, Schedule, Event(motion detection/sensor/video loss)
Pre-Alarm Recording	0~5 seconds
Post-Alarm Recording	0~60 seconds
Watermark Proof	YES
Search Mode	Calendar, Time, Event, Block, File, Bookmark
Backup Mode	DVD-RW / USB flash driver / Network
Network Compression	H264
Software	16CH client viewer / Internet Explorer
Service	TCP/IP, SMTP, HTTP, DHCP, DDNS
Firmware Update	USB 2.0 device / Network
Dimension	430mm (W) x 70mm (H) x 360mm (D)
Power Source	DC12V

- SKU
  WEC-H264.WYCM-20S-KIT
- Weight
  60 lbs
Manufacturer
H264, Ruijie
RUIJIE
Yes
Keywords
WEC-H264 8-Channel DVR Video Surveillance System
Description
WEC-H264 8-Channel DVR Video Surveillance System
Hard Drive
FREE: 500GB, 1000GB
Monitor
19n Flat Panel LCD: Free during PROMO, 22in Flat Panel LCD
DVD Backup
FREE: DVD-RW Backup
Monitor Output
Standard Video Output, VGA Output for Monitor
Cables
8x100 feet, 8x75 feet, 8x50 feet, 8x25 feet, 8x150 feet, Bulk 500 feet spool, Bulk 1000 feet spool
Extended Warranty
1 Year Warranty Included, 2 Year Extended Warranty, 3 Year Extended Warranty
