*EASY SETUP* COMPLETE 4 CAMERA SYSTEM with DVR and Remote Internet Viewing WG4-760 DVR / WYCM-20S Video Surveillance System

H264
SKU: WG4-760-4-WYCM-20S-KIT

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* COMPLETE 4 CAMERA SYSTEM with DVR and Remote Internet Viewing WG4-760 DVR / WYCM-20S Video Surveillance System. This camera is a professional, color dome camera providing a very clean surveillance install. This professional CCD dome camera provides stunning color surveillance with a very sharp picture. Over 20,000 of these domes are currently in the field. Proven performance and reliability.  The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression. The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation. Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording. This 4 Channel Video Package Includes:

  • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder (DVR)
  • (4) Sony WYCM-20S Color CCD Indoor Dome Security Surveillance Cameras
  • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
  • (4) 100' Video/Power Cables & Cable Connectors
    • 38% less
    Market price:$1299.00 save $499.01
  • $799.99

OR
 The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* COMPLETE 4 CAMERA SYSTEM with DVR and Remote Internet Viewing WG4-760 DVR / WYCM-20S Video Surveillance System. This camera is a professional, color dome camera providing a very clean surveillance install. This professional CCD dome camera provides stunning color surveillance with a very sharp picture. Over 20,000 of these domes are currently in the field. Proven performance and reliability.  The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression. The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation. Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording. Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer or the client software included with the unit.  Video can easily be converted to the standard .AVI format for backup and review in standard media players. The DVR is featured by MPEG-4 Compression. 4 Video Inputs, 1 Audio Input. Triplex, 120 Frames per Second. Internet Explorer Remote Access. Remote Setup, DDNS Support. RS485 PTZ Support. Video Loop Out. Intuitive On-Screen Menu Programming. Digital Motion Detection. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

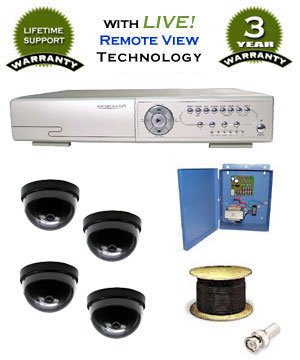

This 4 Channel Video Package
Includes:
  • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
  • (4) Sony WYCM-20S Color CCD Indoor Dome Security Surveillance Cameras
  • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
  • (4) 100' Video/Power Cables & Cable Connectors

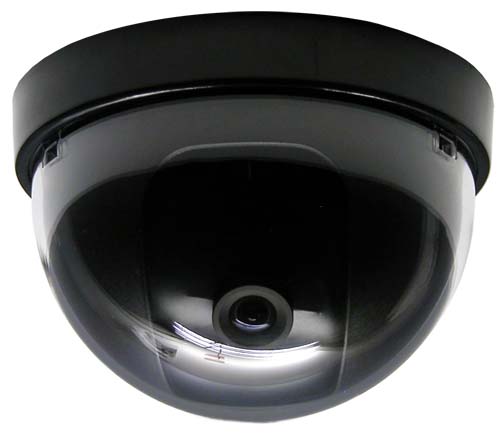

CAMERA DETAILS:

This camera is a professional, color dome camera providing a very clean surveillance install. This professional CCD dome camera provides stunning color surveillance with a very sharp picture. Over 20,000 of these domes are currently in the field. Proven performance and reliability.

 Specifications
Resolution420 TV Lines
PixelsNTSC = 512(H) X 492(V)
Scanning System2:1 Interlaced
Sync SystemInternal
TV SystemNTSC
Gamma.45
White BalanceAuto White Balance
Lux Rating1 Lux (F=1.2)
ConnectionBNC video out
PowerOperates from 12V DC
Sensor Type1/4" Sony Color CCD
CCD Shutter SpeedNTSC: 1/60th to 1/100,000th second
Duty CycleRated for 24 hr. continual use
Dimensions87mm (D) x 60mm (H)
S/N RatioMore than 48dB
Power Consumption60mA
Standard Lens3.6mm (all sizes available)
Operating Temp.-5°C ~ 40°C (23°F ~ 104°F)
Humidity95% Max
Storage Temp.-10°C ~ 50°C ( 14°F ~ 122°F)

DVR DETAILS:
4 Camera Inputs, 1 Channel Audio, MPEG-4, Triplex, 120 FPS

The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression.

The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation.

Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording.

Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer or the client software included with the unit.  Video can easily be converted to the standard .AVI format for backup and review in standard media players.

The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts.

A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions.  However, recording time will vary depending on quality and recording rate.  When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video.

The WG4-760 provides for more than a simple VCR replacement.  It features above standard specifications with simple setup, simple operation and reliability.
PRODUCT FEATURES
  • MPEG-4 Compression
  • 4 Video Inputs, 1 Audio Input
  • Triplex
  • 120 Frames per Second
  • Internet Explorer Remote Access
  • Remote Setup
  • DDNS Support
  • RS485 PTZ Support
  • Video Loop Out
  • Intuitive On-Screen Menu Programming
  • Digital Motion Detection

WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder

Demo Site:

Username: admin
 Password: admin

DVR SPECIFICATIONS
GENERALENVIRONMENTAL
Video Inputs4 inputs, 1.0Vp-p, 75 ohm unbalancedOperating Temperature50 to 104 degrees F (10 to 40 degrees C)
Video Outputs4 Video Loop OutsPHYSICAL
1 Main MonitorDimensions343(W) x 59(H) x 223(D) mm
1 Call MonitorMECHANICAL
Audio Inputs1 audio inputCamera InputsBNC female
Audio Outputs1 audio outputCamera OutputsBNC female
Horizontal Resolution720 x 480 (NTSC)Monitor OutputBNC female
Display1, 4Audio InputRCA female
ZoomLive 2x ZoomAudio OutputRCA female
SequenceAvailableAlarm InputsDB-25 female
Screen QualityFull: 720 x 480 Active Pixels (NTSC)Alarm OutputsDB-25 female
1/4 Screen: 360 x 240 Active Pixels (NTSC)RS232/RS48515PIN DSUB
Record QualityCIF





Display Rate120 frame/second (4x30)
Recording Rate (Max)120, 60, 30, 15
Record QualityBest, High, Normal, Low
Compression TypeMPEG-4
Record ModeNormal, Schedule, Motion Detect, Alarm
Playback ModeDate/Time Search or Event Search
Operation ModeTriplex
Motion DetectArea Division: 16 x 12, on/off selectable
Motion Detect and Relay On Simultaneous
Motion Sensitivity4 adjustable variables
Pre-Alarm RecordingYes (8MB)
WatermarkYes
Key LockYes
Network SupportTCP/IP, PPPoE, DHCP, DDNS
Network FunctionInternet Explorer, Remote Client Software
Web CompressionMJPEG
Remote NotificationEmail images
Alarm4 Alarm Inputs / 1 Relay Output
Back-upNetwork
RS485PTZ (Pelco D)
StorageInternal 1 HDD (no size limitation)

Worldeyecam[Click here for detailed Specification PDF]

Worldeyecam[Click here for PDF Product Manual]
    • SKU
      WG4-760-4-WYCM-20S-KIT
    • Weight
      45 lbs
  • Manufacturer
    H264, Ruijie
  • RUIJIE
    Yes
  • Keywords
    WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, SA-DVR-WG4-760-4-WYCM-20S-KIT, surveillance system, video surveillance software, nanny cam, dome camera, pc surveillance, security surveillance, lcd cctv monitor, audio surveillance equipment,
  • Description
    The WG4-760 DVR / WYCM-20S Video Surveillance System includes a WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, 4 Sony WYCM-20S Color CCD Indoor Dome Security Surveillance Cameras and video & power cables.
  • Monitor Output
    Standard Video Output, VGA Output for Monitor
  • Upgrade to WSTA-CDRW
    NO CDRW, Upgrade to WSTA-CDRW
  • Optional Monitor
    I will use my own Monitor, 17 inch LCD Viewsonic Monitor
  • Power Supply Connection
    EASY Plug/Play Power Adapters, Distributed Power Box
  • Storage Space
    250GB (Included), 500GB
  • Cables
    4x100 feet, 4x25 feet, 4x50 feet, 4x75 feet, 4x150 feet, Bulk 500 feet spool, Bulk 1000 feet spool
  • Extended Warranty
    1 Year Warranty Included, 2 Year Extended Warranty, 3 Year Extended Warranty
