8 AVTech Security Camera NVR System AVTECH-6CHKIT

AVTECH
SKU: AVTECH-6CHKIT
This Six Channel Complete IP Camera System Includes the Following:

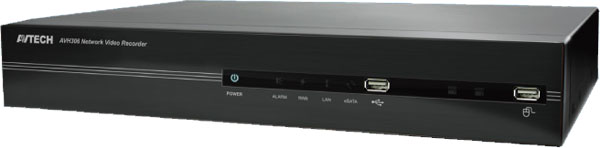

1) AVH306 NVR Recorder that auto-configures six IP cameras in 90 seconds.

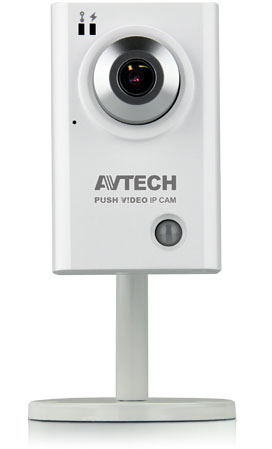

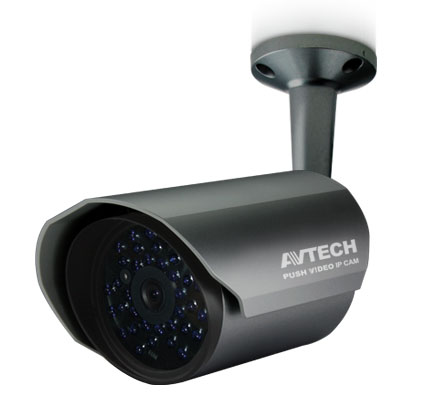

6) AVN301 Push Video Indoor IP Cameras that send live VIDEO Notifications to your iPhone or Android.
1) Six port switch

    • 44% less
    Market price:$3245.40 save $1442.40
  • $1803.00
Qty:
OR
This Six Channel Complete IP Camera System Includes the Following:

1) AVH306 NVR Recorder that auto-configures six IP cameras in 90 seconds.
6) AVN301 Push Video Indoor IP Cameras that send live VIDEO Notifications to your iPhone or Android.
1) Six port switch

Optionally you may upgrade any of the cameras to:

https://www.worldeyecam.com/skin1/avn80x/AVN801_ICON.jpghttps://www.worldeyecam.com/skin1/avn80x/AVN801_ICON.jpghttps://www.worldeyecam.com/skin1/avn80x/AVN801_ICON.jpg
AVN801AVN80XAVN807A

NVR Features

  • Auto IP Configuration: Discovers IP cameras in about 90 seconds!
  • 6 channel support.
  • 1080P High Definition Output
  • Dual recording - Records QVGA on timer/manual record, when an event is detected the recording switches to Megapixel resolution for the best quality.
  • Full D1 or Megapixel resolution.
  • Supports local storage to a hard drive or remote NAS backup.
  • Full mobile compatibility - Supports iOS (iPhone, iPad) and Android devices.

https://www.worldeyecam.com/skin1/avn80x/AVN801_ICON.jpg

>> Key Features <<
1.High Resolution Recordings
AVTECH NVR and Megapixel IP camera solution enables you to upgrade your surveillance system easily, which brings you clear images for video recording and playback.

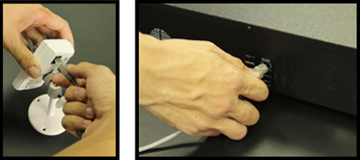

2.Easy Upgrade to IP Surveillance System
To help users to upgrade analog signals to digital signals, we have adopted Plug-and-Play technology to simplify the complicated network configurations in three steps. As a result, it is easy to set up as CCTV products.




3.HDMI TV Video Out
We support 1920*1080 REAL HDMI service, giving the best image quality on LCD / LED monitors.

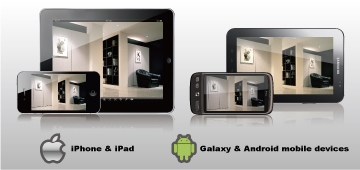

4. Multi-platform Remote Access
To access a single IP device, you may use iPhone or Android Mobile devices with “EagleEyes”;
To access 4, 9, 16 IP devices all at a time, you may use iPad with “EagleEyes HD-Plus”.

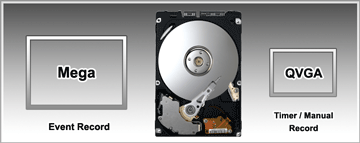

5. Smart Recording
AVTECH NVR adjusts the video resolution to optimize the recording efficiency of HDD. At normal time, NVR supports QVGA, while an event occurs, it will perform megapixel recording to get the best with picture quality as evidence.

6. High Compatibility and Offsite Backup
AVTECH NVR is going to support nearly every mainstream IP camera in the market in the near future to enhance users’ demands for our NVR. It also serves as a NAS for all kinds of IP cameras and AVTECH NVR on the Internet for offsite backup.

Specifications:

Hardware
Video InputOne LAN port Up to 6 Channels with a 6-port hub
Video OutputHDMI
Video Output Resolution1920 x 1080
Audio InputYES
Audio OutputYES (Line Out / HDMI)
HDD StorageUp to two 3TB HDDs
USB PortsTwo on the front panel:

one for video backup to USB flash drive, andanother for NVR control via a USB mouse
IR Remote ControlYES
EthernetLAN port : 1000Mbps

Internet port : 10Mbps / 100Mbps
Software
Video Compression FormatH.264 / MPEG4 / MJPEG
Recording ModeManual / Event / Alarm / Schedule
Pre-alarm RecordingYES
Quick SearchTime / Motion / Alarm
SecurityMultiple user access levels with password
Remote Access(1) Internet Explorer on Windows operation system

(2) EagleEyes on iPhone, iPad & Android mobile devices
General
Power Source (±10%)DC 19V / 2.1A
Operating Temperature10 ~ 40 (50 ~104 )
Dimensions (mm)375(W) × 55(H) × 264(D)
Minimum PC Browsing Requirements'Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD

'256 MB RAM

'AGP graphics card, Direct Draw, 32MB RAM

'Windows 7, Vista & XP, DirectX 9.0 or later

'Internet Explorer 7.x or later
Supported Peripherals(1) AVX912 EoC converter

(2) AVX913 HDMI Extender

(3) AVX931 Video Server

CameraFeatures:

  • Easy network setup with your iPhone / iPad
  • 1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily
  • Memory storage built-in for video recording
  • Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified
    event type is triggered, and play video recording once you confirm the receipt.
  • External alarm I/O device connection
  • Microphone built-in for audio recording
  • Remote Surveillance -- Full compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating systemith your iPhone / iPad
  • https://www.worldeyecam.com/skin1/avn80x/AVN801_ICON.jpg

    Get Event Video Call in5 Seconds. It’s just like having aPrivate Guard!

Why do you needPush Video?

Ï Because I am NOT a security guard to monitor my property all the time. I want to get NOTIFIED when something happens!
Ï Because I want to PLAYBACK to see who triggered the alarm, not the Live video without intruder in the picture!
Ï Because JEPG picture is never taken at a right target and I prefer VIDEO to know more detail!
Ï Because what I truly need is instant video notifications, instead of notification messages or emails.





Application Scenarios

Home

Office / Factory

Store / Warehouse

Garage / Garden

Do you have iPhone, iPad or Android Mobile devices?Push Video Series IP camera, could be your tireless housekeeper who renders a great service, including sending instant notifications and play event video clips on your Mobile Devices, and you will never miss the important moment.


Impressive Features

Push Video

Memory
Record

Human Detection Sensor (AVN805)

Alarm I/O
Interface

Easy
Setup

Multi-Platform

H.264
Compressive

Digital PTZ

IR Shifter
(AVN807)

IR LED

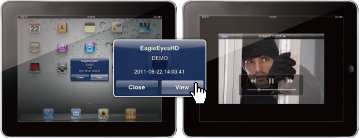

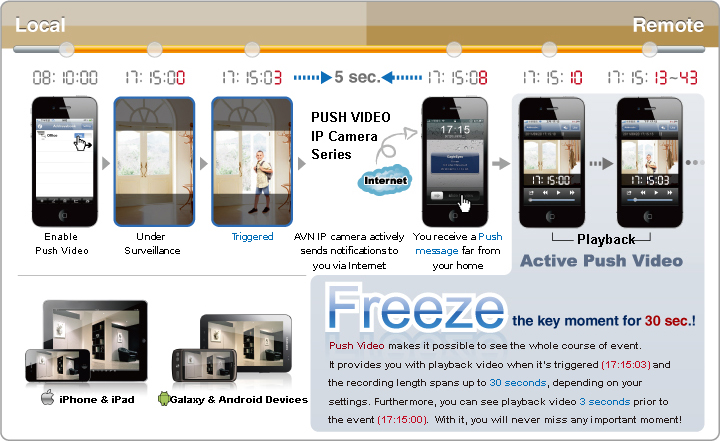

1. PUSH VIDEO

When an event happens and is detected by our Push Video IP camera, the camera will immediately send an event notification to your mobile phone which will then activate our mobile app, EagleEyes, automatically for remote video playback within 5 seconds.


2. Multi-platform Support for Mobile Surveillance

iPad & Android is supported to fulfill various users' demands. Our self-developed mobile app, "EagleEyes", can be installed on your mobile phone for remote surveillance at anytime, from anywhere.

World’s 1st iPad monitoring app EagleEyesHD to support real 1280x1024 resolution!

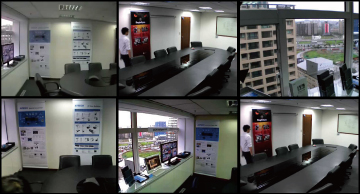

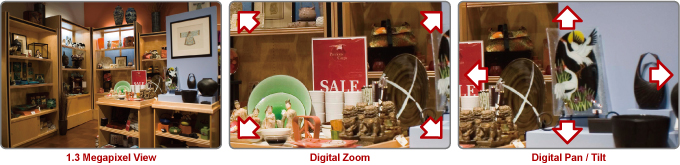

3. Digital PTZ:
To see more details, Digital PTZ allows users to move up / down and left / right after zoom in on an object.


4. External Alarm I/O Accessories

Push Video IP cameras support all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.

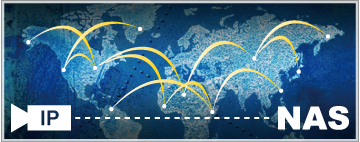

5. Powerful Storage & Offsite Backup

This series of products supports not only basic recording but also powerful storage and offsite backup functionality with NVR+NAS Hybrid system.





6. AVTECH DDNS Server:
AVTECH DDNS service is rendered free of charge, so user can get DDNS service by quick signup, ridding of filling in personal information.

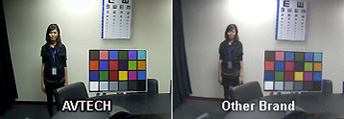

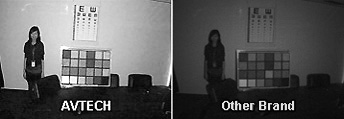

7. Image Comparison

Day View (AVN807)

Night View

During day time surveillance, the image quality of Push Video IP camera series is relatively better than other brand’s IP camera because this camera series is equipped with a IR Shifter, Live MOS image sensor and Uniphier DSP (manufactured from a famous Japanese component supplier). At night, the surveillance area could be illuminated with IR LEDs to provide sharp and clear images.


 Network
Network CompressionH.264 / MPEG4 / MJPEG
Multiple Video Streaming(Encode Modes, IPS, Resolution)3 (H.264, MJPEG, MPEG4)
LAN PortYES
LAN Speed10/100 Based-T Ethernet
Supported ProtocolsDDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP
Frame RateNTSC:30, PAL:25
Number of Online Users10
Security(1) Multiple user access levels with password

(2) IP address filtering

(3) HTTPS

(4) Digest authentication
Remote Access(1) Internet ExplorerR on WindowsR operating system

(2) EagleEyes on iPhone, iPad & Android mobile devices
 Camera
Image Sensor1/4" SONY CMOS image sensor
Video ResolutionSXGA, SXVGA, 720P, VGA, QVGA
Min Illumination0.1 Lux / F1.5
Shutter Speed1 / 2 to 1 / 10,000 sec.
S/N RatioMore than 48dB (AGC off)
Lensf3.8mm / F1.5
Viewing Angle62.7°
White BalanceATW
AGCAuto
IRIS ModeAES
PIR SensorDetection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C)
Memory Storage10MB (Built-in)
External Alarm I/OYES
MicrophoneYES
Power Source (±10%)5V / 1A
Operating Temperature0~40
Others
Mobile SurveillanceiPad / iPhone / Android mobile device
Push VideoYES
RTC (real-time clock)YES
Motion DetectionYES
Digital Pan / Tilt / ZoomYES
Event NotificationFTP / Email / SMS / Push Video
Minimum Web Browsing Requirements'Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD

'256 MB RAM

'AGP graphics card, Direct Draw, 32MB RAM

'Windows 7, Vista & XP, DirectX 9.0 or later

'Internet Explorer 7.x or later



    • SKU
      AVTECH-6CHKIT
    • Weight
      15 lbs
  • Manufacturer
    AVTECH
  • Hard Drive
    None, 500GB, 1TB, 2TB
  • Camera 1
    AVN801, AVN80X, AVN807A
  • Camera 2
    AVN801, AVN80X, AVN807A
  • Camera 3
    AVN801, AVN80X, AVN807A
  • Camera 4
    AVN801, AVN80X, AVN807A
  • Camera 5
    AVN801, AVN80X, AVN807A
  • Camera 6
    AVN801, AVN80X, AVN807A
  • Cat5 Cabling
    I'll Use My Own Cables, 1000' Cat5 Spool w/ Connectors
